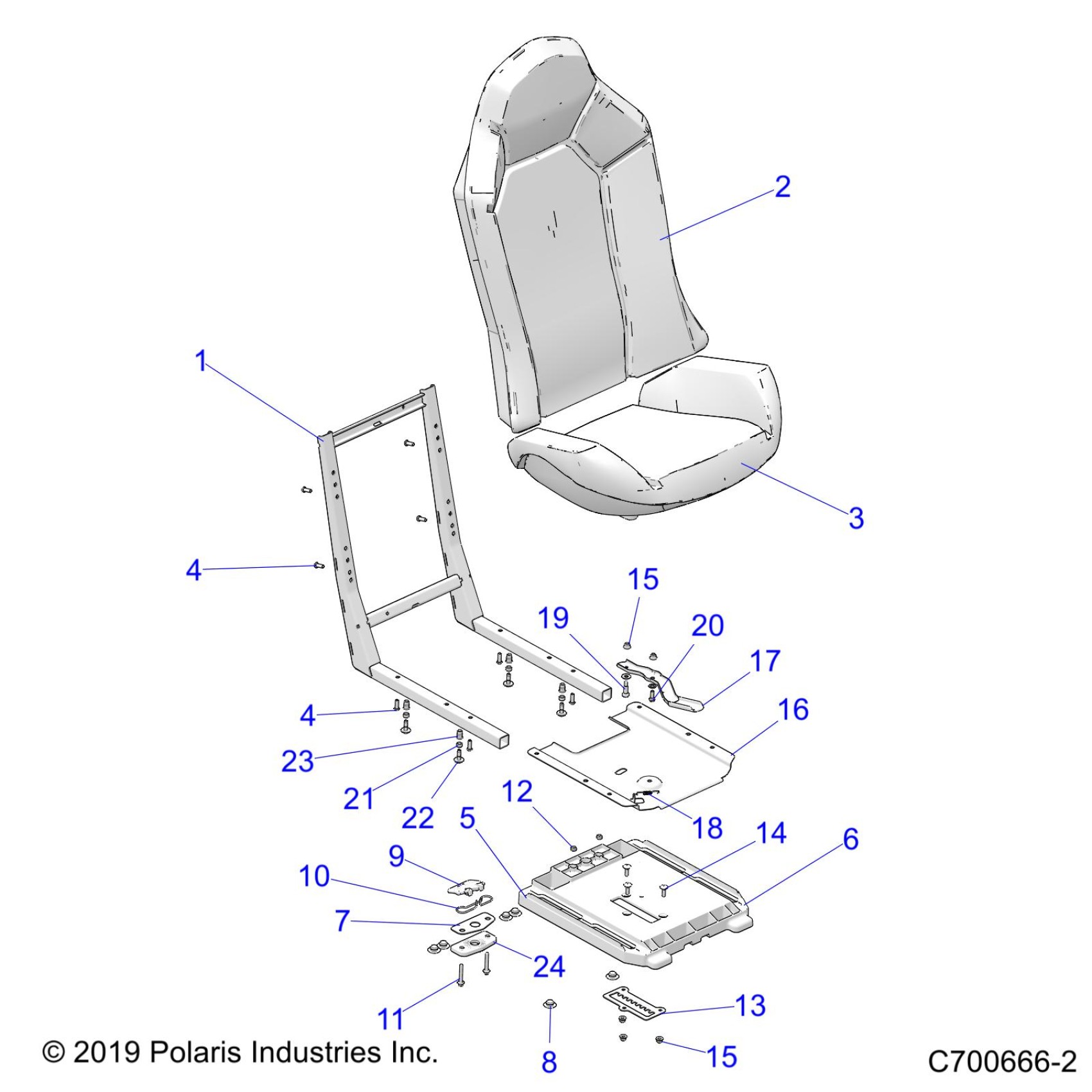

Polaris RZR RS1 EPS (R01) - Z21S1E99AR/BR BODY, SEAT ASM. AND SLIDER - Z21S1E99AR/BR (C700666-2) Diagram

WELD-FRAME, SEAT

1021289

$67.99

ASM-SEAT BACK,HAV RED/BLK

2687887

$171.59

ASM-SEAT BTM,HAV RED/BLK

2687890

$235.99

SCREW-1/4-20x3/4 BH TRX, GR5-Z

7515177

$3.19

SCREW-1/4-20x3/4 BH TRX, GR5-Z

7515177

$3.19

ASM., BASE, SEAT SLIDER [INCL. 6-14, QTY 3 OF 15,24]

2685704

$195.99

SEAT, BASE

5450170

$42.06

PLATE-LATCH,SEAT

5258647

$6.39

GROMMET, SEAT, BASE

5413441

$3.99

HANDLE-SEAT BASE LATCH

5437121

$4.84

SPRING, LATCH, SEAT

7081466

$39.99

SCREW-M6X1.00X40-HX/FL-YD

7517610

$1.59

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

BRACKET, SEAT, SLIDER, ADJUSTABLE PLATE

5257975

Unavailable

SCR-RHCARM6X1.0X20 8.8 ZOD

7518994

$3.22

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

BRACKET, SEAT SLIDER MOUNTING PLATE

5261437

$59.99

BRACKET, SEAT SLIDER LEVER

5260733

$27.99

SPRING

7044099

$5.59

SCR-SH-M6X1.0X9.5 12.9 ZY3

7518786

$2.39

BOLT, SHOULDER

7518897

$1.59

TUBE, SPACER

5340145

$4.79

SCR-1/4-20X1-BH-TRX-GR5-Z

7519296

$1.59

INSERT-1/4-20,HEX HEAD

7547798

$4.79

LATCH, COVER PLATE, BLACK

5450510-070

$4.79
