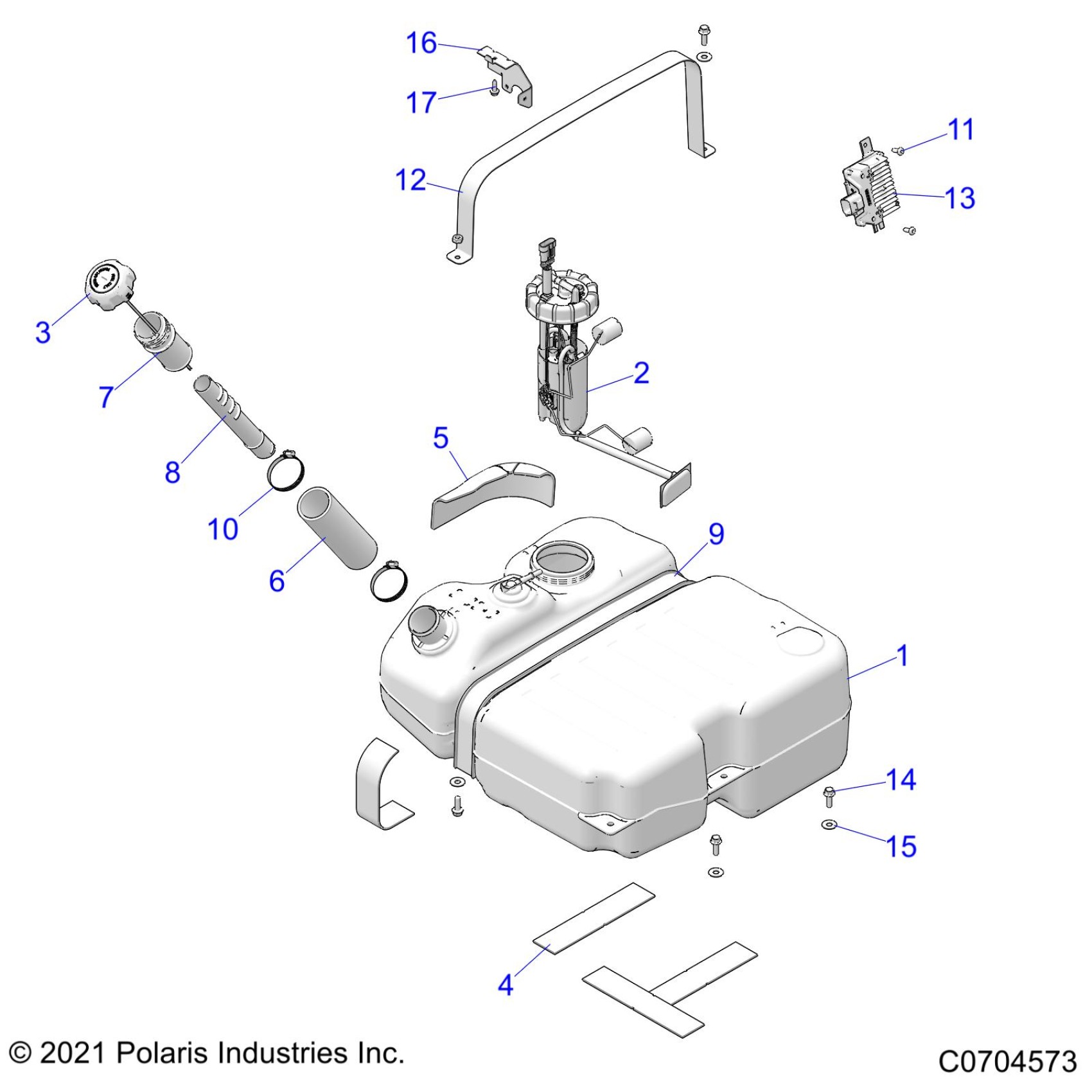

Polaris RZR PRO XP ULTIMATE ROCKFORD FOSGATE LE (R01) - Z22MAU92AP/BP FUEL SYSTEM, TANK - Z22MAU92AP/BP (C0704573) Diagram

ASM-FUEL TANK,RZR,12 GAL [INCL. 2]

2638042

$1,073.59

K-FUEL PUMP [INCL. 4,5, NUT AND GASKET]

2208901

Unavailable

CAP-GAS TANK,TETHER

2522069

$31.99

PAD-TANK,MOUNT

5814781

Unavailable

SHIELD-FUEL TANK

5814906

$23.99

HOSE-FUEL FILL,OUTER

5416768

$47.99

NECK-FUEL FILL,OUTER

5455329

$23.36

TUBE-FUEL FILL,INNER

5455330

$15.88

PAD-STRAP,RUBBER

5522265

$27.99

CLAMP, BAND, NARROW

7080413

$3.19

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19

BRKT-STRAP,FUEL TANK,ECOAT [TO 4/1/2022]

5267362-329

$30.79

BRKT-STRAP,FUEL TANK,ECOAT [FROM 4/1/2022]

1027697-329

$35.99

ASM-FUEL PUMP,CONTROL,MODULE

2521997

$184.79

SCR-HXFL-M8X1.25X25 8.8 ZODP30

7519243

$3.99

WASHER-.390X.940X.060,FL-Y

7555976

$3.99

BRKT-MNT PURGE VALVE,ECOAT

5268112-329

$26.39

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49
