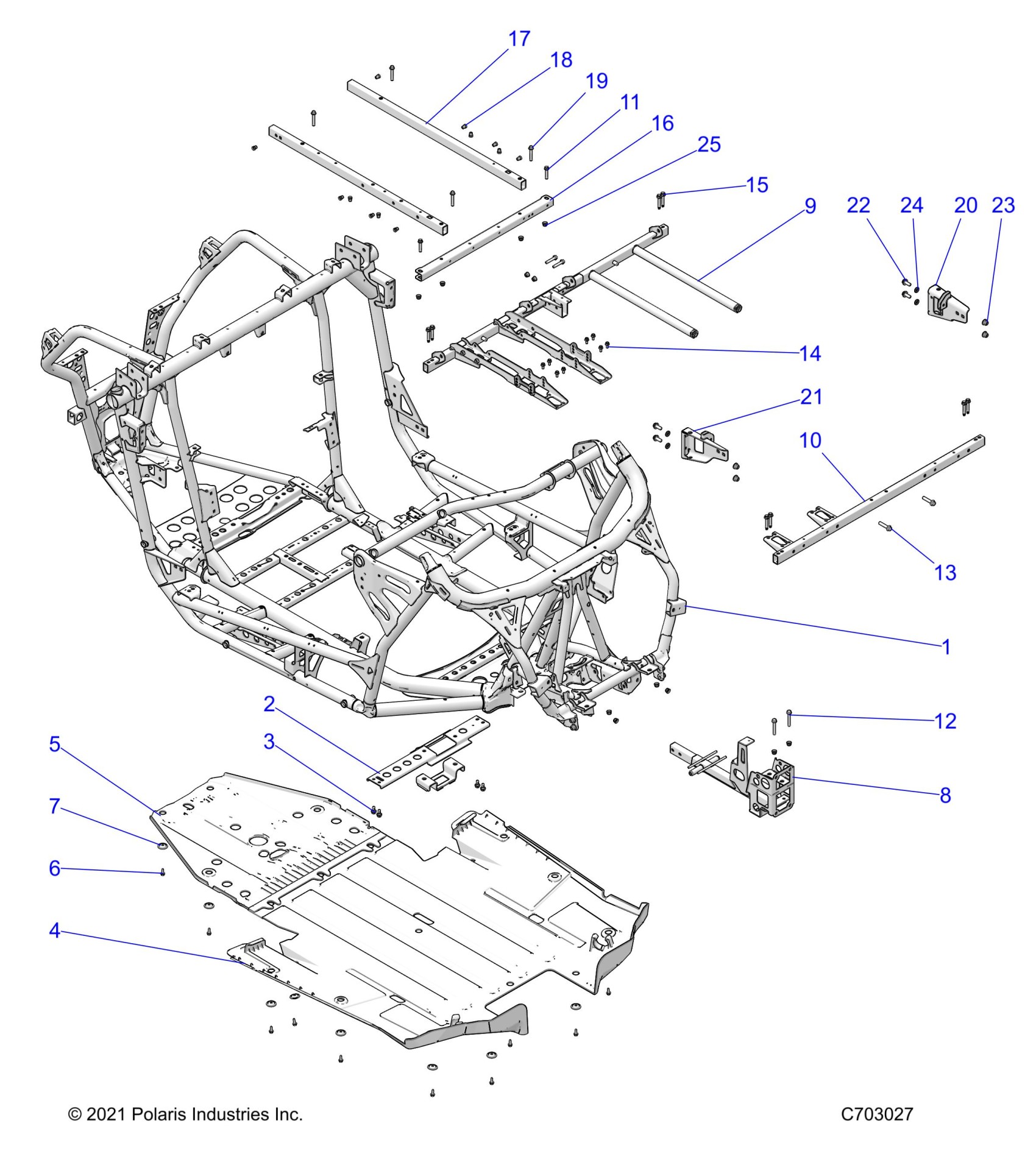

Polaris RZR PRO XP ULTIMATE ROCKFORD FOSGATE LE (R01) - Z22MAU92AP/BP CHASSIS, MAIN FRAME AND SKID PLATES - Z22MAU92AP/BP (C0705762) Diagram

WELD-MAINFRAME,64,BLK

1027221-458

$3,128.39

WELD-MOUNT,PROPSHAFT,ECOAT

1023970-329

$47.99

BOLT-M8X1.25X20,HXHDFLG,W/PTCH

7518450

$1.59

PLATE-SKID,FRONT,BLK

5456058-070

$239.99

PLATE-SKID,REAR,BLK

5456082-070

$131.99

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

WASHER-SKID PLATE

7556065

$4.79

WELD-MOUNT,SHIFT/SCM,ECOAT

1026072-329

$143.99

WELD-SEAT BASE,ECOAT

1024740-329

$167.99

WELD-SEAT BASE,FRONT,ECOAT

1024840-329

$83.99

SCR-SH-M8X1.25X30 8.8 ZPC

7516732

$1.59

SCR-M8X1.25X60-HX/FL-Y

7516733

$6.39

SCR-M10X1.50X50 HX/FL-Y

7518687

$5.22

SCR-HXFL-M6X1.0X16 8.8 ZYL NYL

7519236

$3.19

SCR-HXFL-M8X1.25X50 DP ZODP30

7519245

$3.99

BRKT-CLOSE OFF SUPPORT,ECOAT

5269415-329

$63.99

WELD-MOUNT,BOX [INCL. 18]

1023962

$39.99

NUT-RIVNUT,HEX,M6X1.00

7547790

$3.19

SCR-M8X1.25X55,HX/FL-Y

7517281

$8.99

WELD-MOUNT,HINGE,UPR,LH,BLK

1027227-458

$55.99

WELD-MOUNT,HINGE,UPR,RH,BLK

1027228-458

$55.99

SCR-M10X1.5X25 8.8 HXFL ZOD

7519071

$4.79

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99
