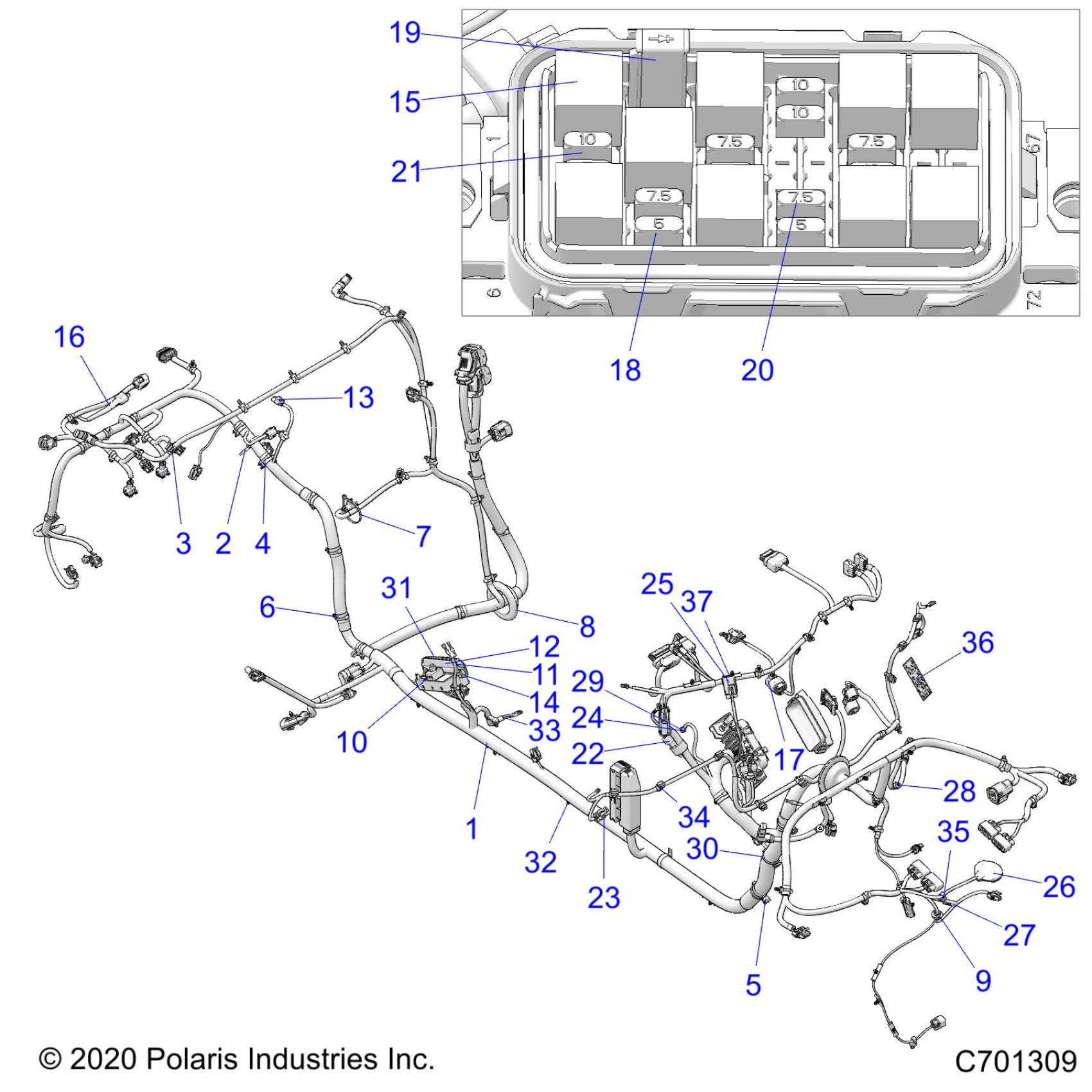

Polaris RZR PRO XP ULTIMATE (R04) - Z21RAD92AC/AM/BC/BM ELECTRICAL, WIRE HARNESS, CHASSIS - Z21RAD92AC/AM/BC/BM (C701309) Diagram

#

Description
Price

1

HARN-CHASSIS,RZR,T,96X64,DX [INCL. 2-37]

2415916

$1,957.99

2

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

3

CLIP, EDGE, HARNESS

7081890

$10.39

4

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.79

5

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

6

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

7

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

8

GROMMET - 65 MM, BLK

5813954

$7.19

9

GROMMET, SPEAKER, VOLUME

5413027

$2.39

10

FUSE-ZCASE, 200A

4018415-200

$37.39

11

FUSE-MCASE,40A

4018414-40

$5.59

12

FUSE-MCASE,SLOTTED,30A

4018414-30

$7.19

13

CAP EVAP CONNECTOR

4018066

$3.99

14

FUSE-PDM

4017598

$57.19

15

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

16

BOOT-TMAP

4016101

$23.99

17

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

18

FUSE-5A,MINI BLADE

4011652

Unavailable

19

DIODE-6AMP

4011474

$40.46

20

FUSE - 7.5, MINI BLADE (BROWN)

4011068

Unavailable

21

FUSE-IGNITION,10 AMP

2434016

$4.79

22

RESISTOR - EVAP PULLUP - 1 KOHM

2414716

$8.79

23

DIODE - 6 AMP, 1/4, 3/16 TERM

2411035

$51.99

24

LED - PANEL MNT, 12V, BLUE

2413217

$51.99

25

FUSE-ATC 30 AMP

4017557

$35.99

26

ANTENNA,GPS,EXT

4018662

$111.99

27

CAP - VINYL, 125X375, BLACK

5438230

$5.59

28

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.19

29

CLIP - ROUTING, DIN BOX

7082020

$5.59

30

CLIP-EDGE,3-6MM THICKNESS

7082399

$5.27

31

LABEL-PDM,RZR

7189870

Unavailable

32

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.19

33

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.19

34

CLIP-EDGE, 1-3mm THICKNESS

7082403

$4.79

35

CLIP-EDGE, 1-3mm THICKNESS

7082402

$7.19

36

LABEL-FUSE BOX

7193185

Unavailable

37

LABEL-AMP

7193569

Unavailable
