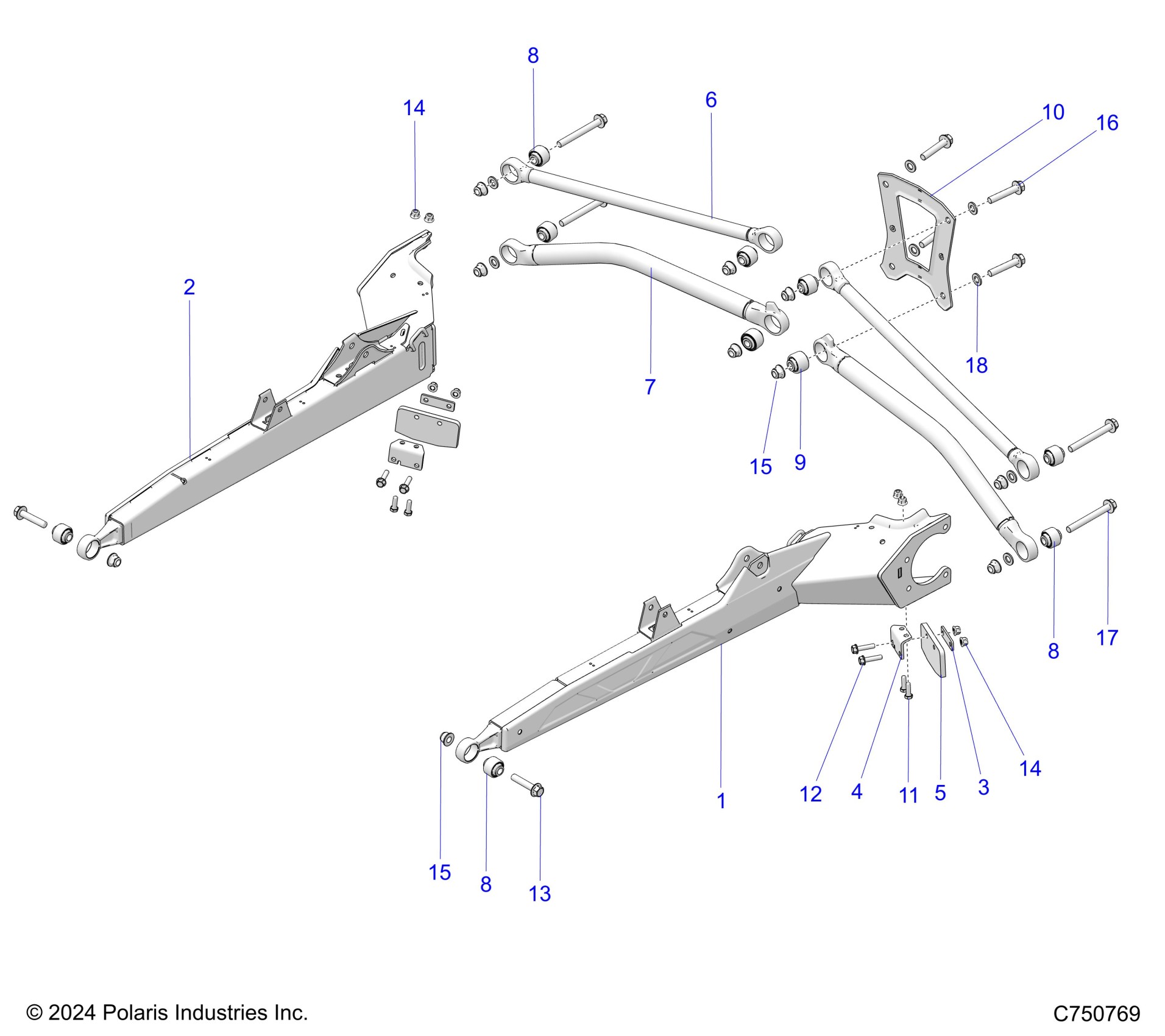

Polaris RZR PRO XP ULTIMATE (R02) - Z25XPD92AA/BA/AL/BL/AP/BP SUSPENSION, REAR TRAILING ARMS AND MOUNTING - Z25XPD92A/92B (C750769) Diagram

WELD-TRL ARM,LH,BLK

1544374-458

$383.99

WELD-TRL ARM,RH,BLK

1544375-458

$383.99

BRKT-BACKER,SCRAPER,M.BLK

5265115-458

$31.99

MOUNT-SCRAPER,BLK

5267029-458

$26.39

SCRAPER-DEBRIS,BLK

5454591-070

$14.39

ASM-RADIUS ROD,UPR,BLK [INCLUDES QTY 4 OF 8]

1544089-458

$151.99

ASM-RADIUS ROD,LWR,BLK [INCLUDES QTY 2 OF 8 & 9]

1544468-458

Unavailable

BEARING-SPHERICAL

7082253

$15.99

BEARING-SPHERICAL

7082253

$15.99

BEARING-SPHERICAL

7082253

$15.99

BEARING-SPHERICAL,LOW MISALIGN

7082283

$15.99

PLATE-REAR,BOLT BRACE,BLK

5265395-458

$39.99

SCR-M8X1.25X25 8.8 HEX ZOD

7518952

$3.19

SCR-HXFL-M8X1.25X35 8.8 ZODv

7519052

$1.59

SCR-HXFL-M12X1.5X60 10.9 ZOD

7519138

$9.59

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.79

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.79

SCR-HXFL-M12X1.5X65 10.9 ZOD

7520477

$3.19

SCR-HXFL-M12X1.5X105 10.9 ZOD

7520479

$7.19

WSHR-13.0X24.0X2.5 ZPC

7556287

$7.19
