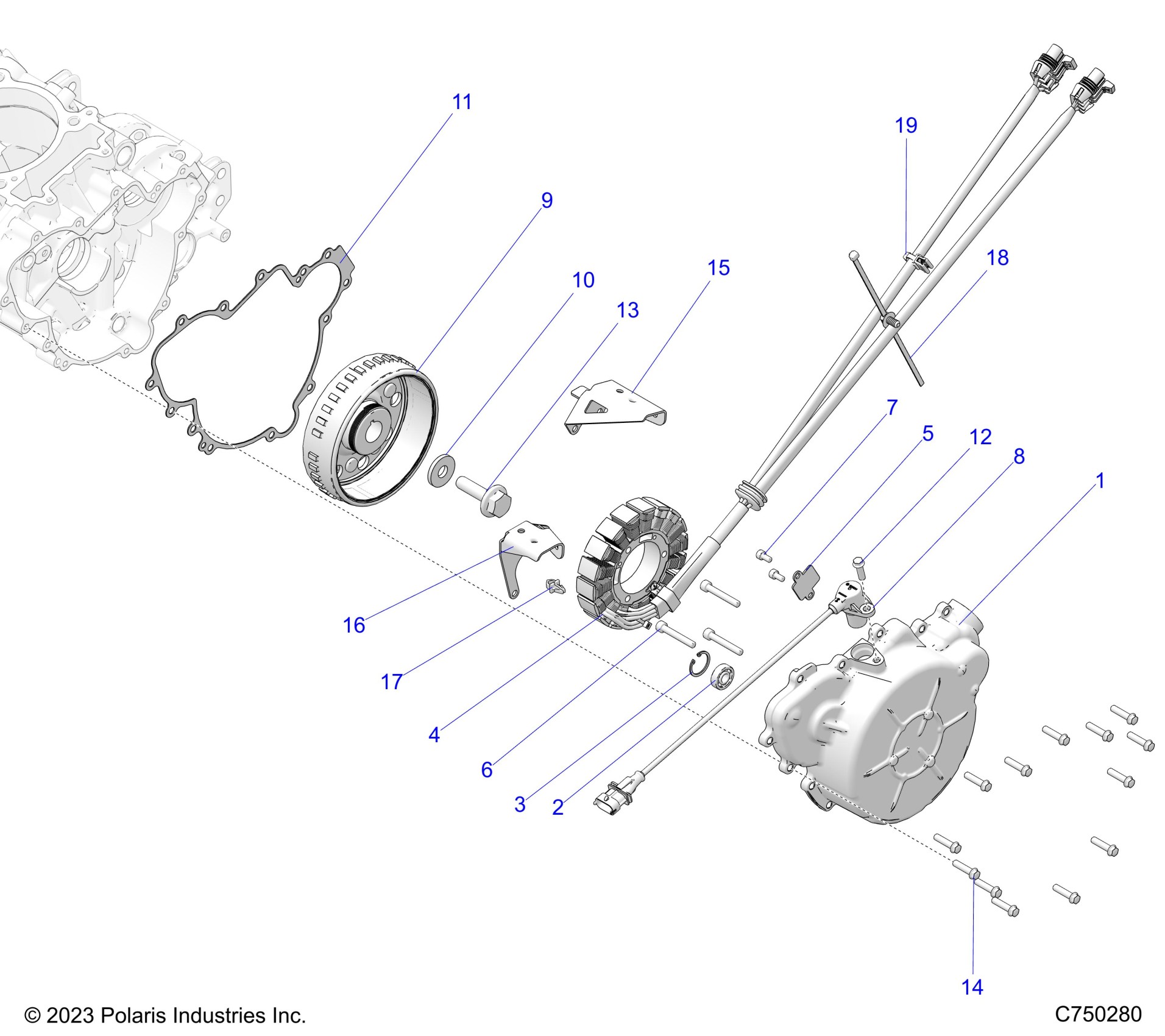

Polaris RZR PRO XP ULTIMATE (R02) - Z25XPD92AA/BA/AL/BL/AP/BP ENGINE, STATOR AND FLYWHEEL - Z25XPD92A/92B (C750280) Diagram

#

Description
Price

1

ASM-IGN COVER,STARTER BRG [INCL. 2 & 3]

1206299

$159.75

1

COVER-STATOR,MACHINED

5143721

Unavailable

2

BEARING-BALL,9X24X7

3514717

$8.79

3

RING-SNAP,DIN472,24X1.2MM

7710654

$23.99

4

STATOR-900W DUAL

4019180

$299.99

5

BRACKET, RETAINER, WIRE

5255473

$7.19

6

SCR-M6X1.0X40,HX/SOC/CP-Y/D

7510005

$5.70

7

SCREW-M5X0.8X10 SOC/CP-D

7517847

$3.19

8

SENSOR, CRANK POSITION

2411719

$101.17

9

FLYWHEEL-900W

4017135

$255.99

10

WSHR-32X12X4,HARD

7556885

$5.59

11

GASKET, COVER, IGNITION

5814160

$39.99

12

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

13

SCREW-HXFL-M12X1.25X43 12.9

7520178

$27.99

14

SCREW-HXFLG,M6X1.0X25,10.9

7519297

$3.99

15

BRKT-OIL LINE RETAINER

5266652

$27.99

16

BRKT-LINE,COOLANT

5267062

$31.99

17

CLIP-WIRE, 6.35MM

7081477

$3.19

18

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

19

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59
