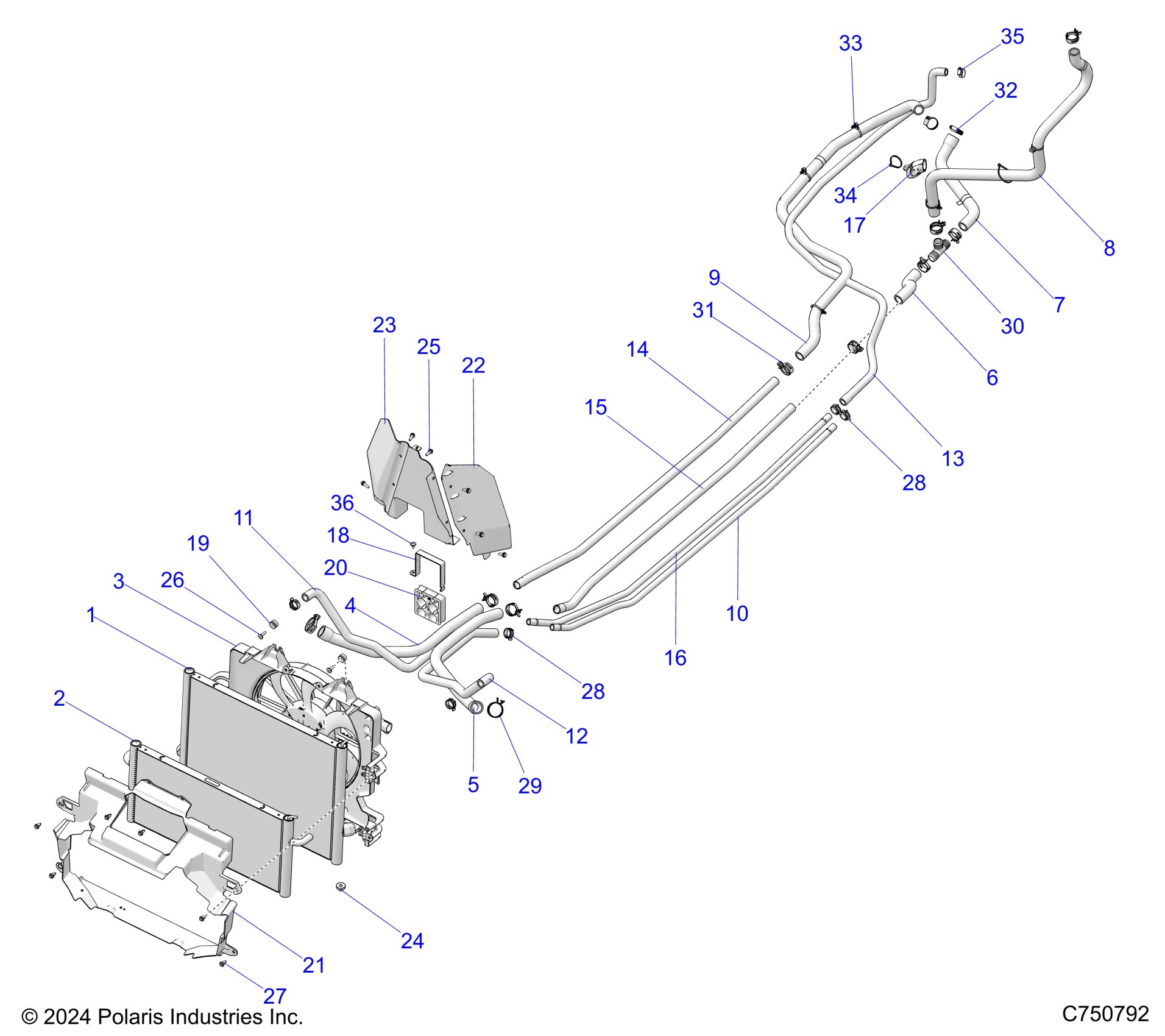

Polaris RZR PRO XP ULTIMATE (R02) - Z25XPD92AA/BA/AL/BL/AP/BP ENGINE, COOLING - Z25XPD92A/92B (C75792) Diagram

#

Description
Price

1

ASM-RADIATOR,CORE,HT

1241243

$408.49

2

ASM-RADIATOR,CORE,LT

1241241

$337.24

3

FAN-ASSEMBLY

2417224

$517.74

4

HOSE-RADIATOR,HT,IN

5416568

$44.51

5

HOSE-RADIATOR,HT,OUT

5416569

$48.56

6

HOSE-ENG IN,TUBE/T

5416570

$32.37

7

HOSE-ENG IN,T/ENG

5416571

$36.41

8

HOSE-OUT,ENGINE,SURGE/T

5416572

$82.29

9

HOSE-ENGINE OUT

5416573

$91.97

10

TUBE-COOLANT,LT LOWER

5143253

$66.65

11

HOSE-RADIATOR,LT,IN

5416574

$40.46

12

HOSE-RADIATOR,LT,OUT

5416575

$48.56

13

HOSE-LCAC,OUT

5417198

$82.29

14

TUBE-COOLANT,HT UPPER

5141926

$87.13

15

TUBE-COOLANT,HT LOWER

5141927

$87.13

16

TUBE-COOLANT,LT UPPER

5141928

$40.46

17

SUPPORT-SHIFT CABLE

5417525

$34.99

18

STRAP-GROMMET,ROUTING,ECOAT

5266653-329

$34.99

19

ASM-GROMMET & INSERT

5416503

$3.97

20

GROMMET-ROUTING

5416806

$31.75

21

SHROUD-RADIATOR,RZR,64

5465016

$56.65

22

PANEL-AIR,DEFLECTOR,LH,64

5465141

$28.32

23

PANEL-AIR,DEFLECTOR,RH,64

5466500

$44.51

24

GROMMET-FLANGED,.36X.56X1.06

7052028

$6.35

25

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

26

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

27

RIVET-TUFLOK,.315-.325X.787

7661855

$1.19

28

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.14

28

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.14

29

CLAMP-CTB42

7082625

$7.14

30

CONNECTOR-TEE,1",1",1" BARBED

7052373

$10.32

31

SPRINGBAND-CLAMP,BLK

7082308

$5.56

32

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.94

33

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.17

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

35

CLAMP-CONSTANT TENSION,16-27

7081415

$7.14

36

SCR-M6X1X16 TR/TX-M

7518936

$3.97
