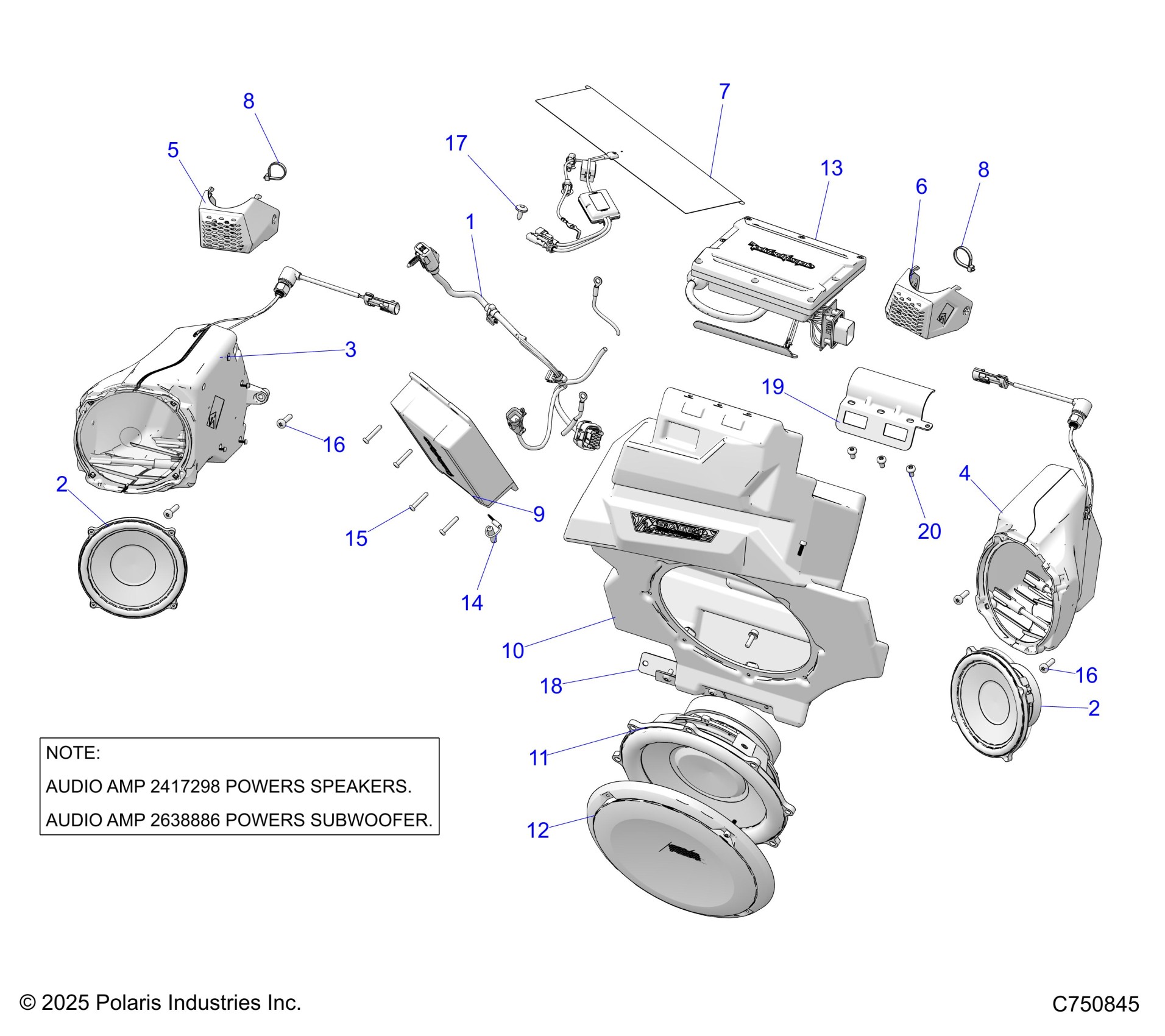

Polaris RZR PRO XP ULTIMATE (R02) - Z25XPD92AA/BA/AL/BL/AP/BP ELECTRICAL, AUDIO, FRONT - Z25XPD92A/92B (C750845) Diagram

#

Description
Price

1

HARNESS-AUDIO,SUB

2416190

$87.99

2

ASM-SPEAKER,WOOFER,6.5,V2

2417186

$147.99

2

ASM-SPEAKER,WOOFER,6.5,V2

2417186

$147.99

3

ASM-SPKR,FRONT,LH

2417262

$580.79

4

ASM-SPKR,FRONT,RH

2417263

$580.79

5

ASM-SPKR,TWEETER,LH

2417264

$59.99

6

ASM-SPKR,TWEETER,RH

2417265

$59.99

7

ANTENNA,AM-FM

4081622

$96.79

8

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

8

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

9

ASM-AMP,4CH,CP,400W,RF

2417298

$325.59

10

ASM-SPKR,SUBWOOFER,10IN [INCL. 11-13,18,19,21]

2417520

$739.19

11

ASM-SPEAKER,SUB,10"

2414649

$199.99

12

ASM-GRILL,10" SUB

2414937

$63.99

13

ASM-AMP,POL4001

2638886

$303.59

14

JUMPER,AMP GROUND

4018709

$12.79

15

SCR-10X1.12 TX PN PLS-Y

7512078

$1.49

16

SCR-#14X1 HI/LO-PH-PN TRX-M

7518158

$4.79

16

SCR-#14X1 HI/LO-PH-PN TRX-M

7518158

$4.79

17

SCR-M6X1X16 TR/TX-M

7518936

$3.99

18

BRKT-SUB,LOWER,ECOAT

5274757-329

$3.99

19

BRKT-SUBWOOFER

5271837

$12.79

20

SCREW-SUBWOOFER

7527910

$1.59
