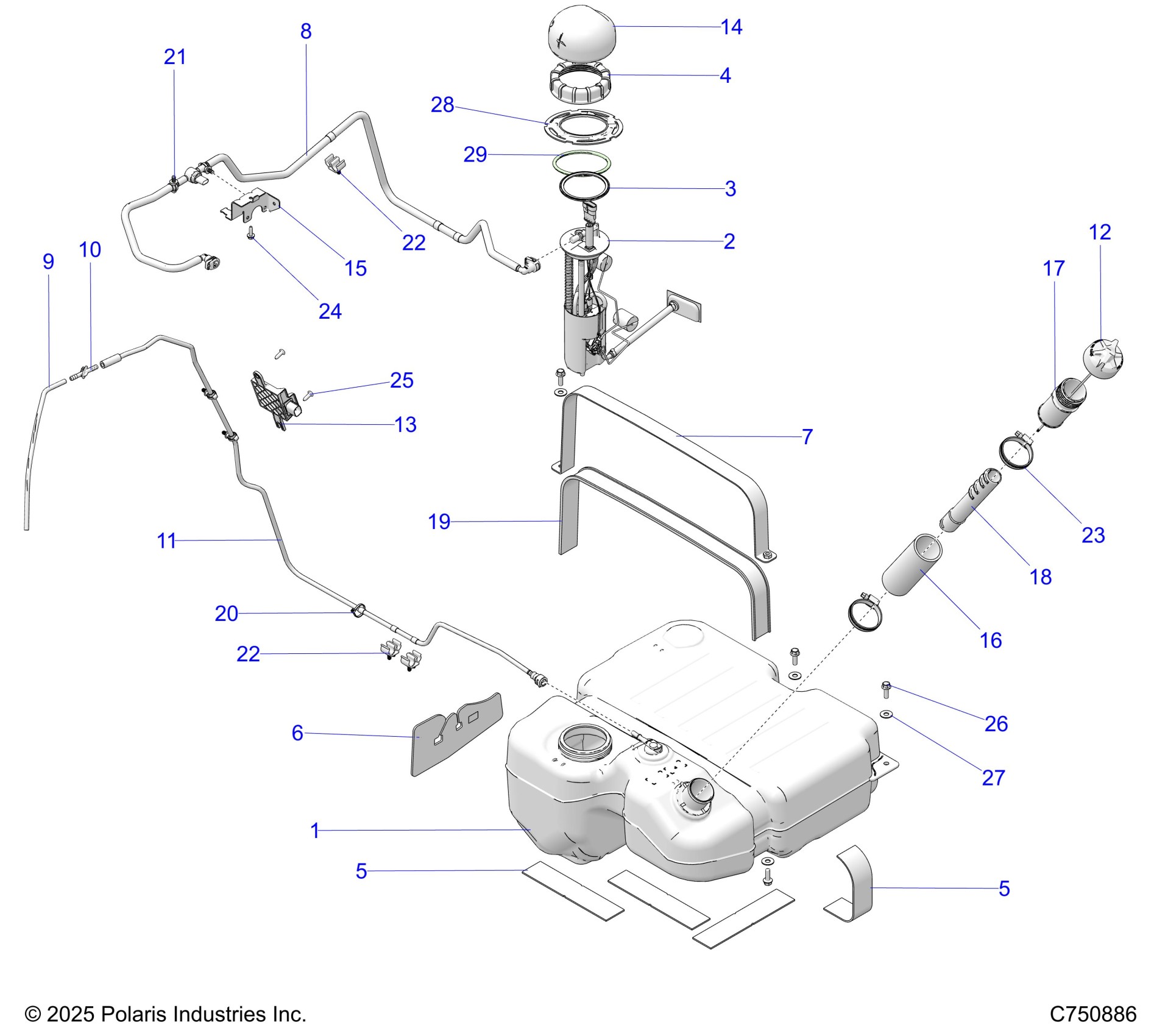

Polaris RZR PRO XP ULTIMATE (R01) - Z26XPD92AN/BN/AH/BH FUEL SYSTEM, STD. - Z26XPD92AN/BN/AH/BHZ26XPD92AN/AH (C750886) Diagram

#

Description
Price

-

ASM-FUEL TANK,RZR,12 GAL [INCL 1-6][TO 1.23.2026]

2638042

$1,073.59

-

ASM-FUEL TANK,RZR,T [INCL 1-6][FROM 1.23.2026]

2640243

Unavailable

1

ASM-FUEL TANK [INCL. 3 & 4]

2522722

Unavailable

2

K-FUEL PUMP [INCL. 3 & 4][TO 1.23.2026]

2211788

$453.19

2

K-FUEL PUMP [FROM 1.23.2026]

2211924

Unavailable

3

GASKET-PFA,RIBBED

5413451

$11.99

4

NUT-MASON JAR

5437138

$35.99

5

PAD-TANK,MOUNT

5814781

Unavailable

5

PAD-TANK,MOUNT

5814781

Unavailable

6

SHIELD-FUEL TANK

5815824

$23.99

7

BRKT-STRAP,FUEL TANK,ECOAT

1027697-329

$35.99

8

ASM-FUEL LINE,SUPPLY

2522365

$195.99

9

ASM-LINE,VENT TERM [INCL. 10]

2522401

$31.99

10

FITTING-VENT LINE,35

5457446

$8.79

11

ASM-VENT LINE

2522082

$63.99

12

CAP-GAS TANK,TETHER

2522651

$31.99

13

ASM-FUEL PUMP,CONTROL,MODULE [TO 2.2.2026]

2522698

$164.99

13

ASM-FUEL PUMP,CONTROL,MODULE [FROM 2.2.2026]

2523111

Unavailable

14

COVER-PFA,WALBRO [TO 1.23.2026]

2522746

$15.99

14

COVER-PFA,VIPER [FROM 1.23.2026]

2522805

$15.99

15

BRKT-MNT PURGE VALVE,ECOAT

5268112-329

$26.39

16

HOSE, FUEL FILL

5414709

$55.99

17

NECK-FUEL FILL,OUTER

5455329

$23.36

18

TUBE-FUEL FILL,INNER

5466555

$13.59

19

PAD-STRAP,RUBBER

5522265

$27.99

20

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

21

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

22

CLIP-DOUBLE

7082454

$5.59

22

CLIP-DOUBLE

7082454

$5.59

23

CLAMP-HOSE,25-77 DIA,PLASTIC

7083059

$6.15

24

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

25

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19

26

SCR-HXFL-M8X1.25X25 8.8 ZODP30

7519243

$3.99

27

WASHER-.390X.940X.060,FL-Y

7555976

$3.99

28

RING-LOCK,FUEL PUMP

5275358

Unavailable

29

O-RING,FUEL PUMP

5418990

Unavailable
