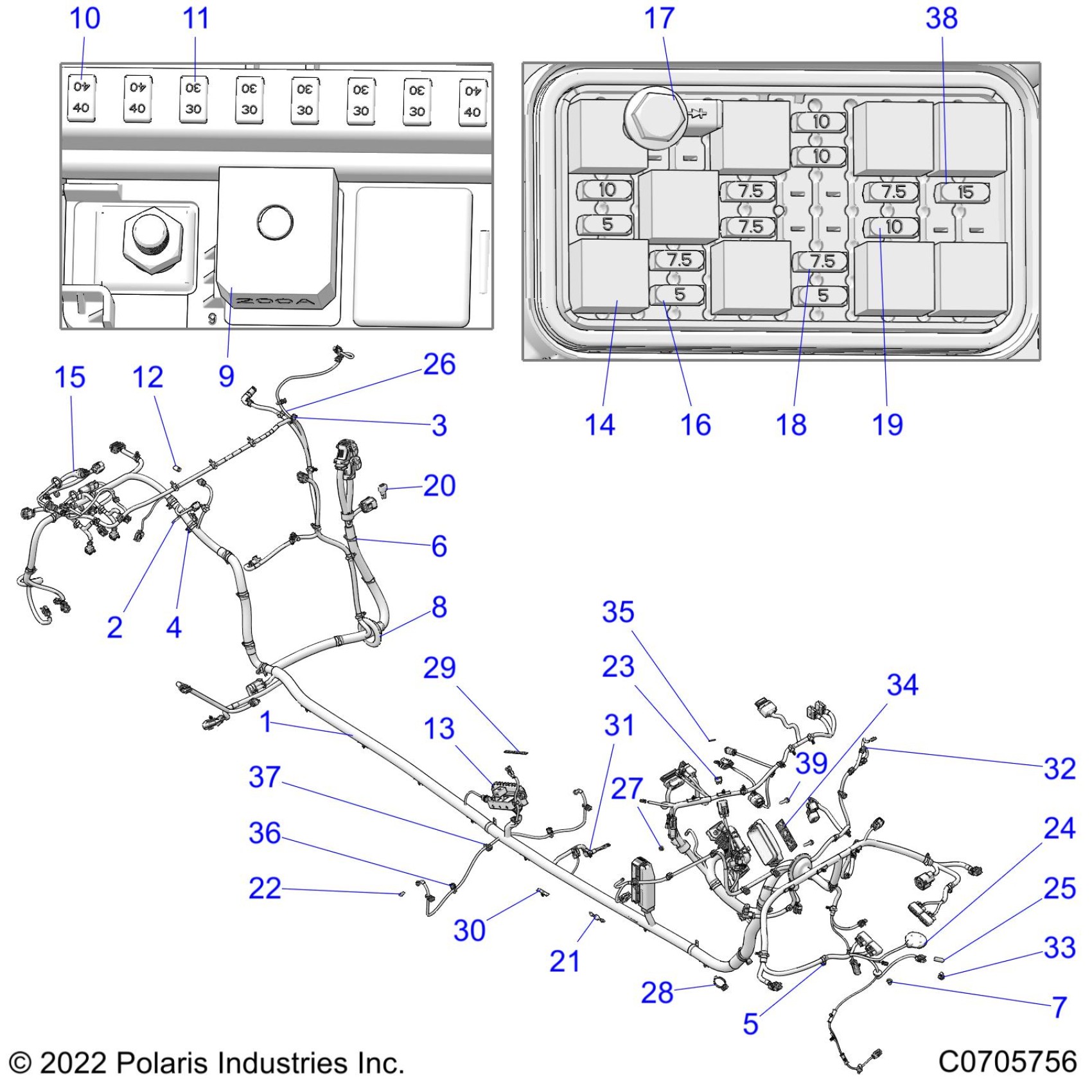

Polaris RZR PRO XP ULTIMATE EVAP (R02) - Z21R4D92BB/BK ELECTRICAL, WIRE HARNESS, CHASSIS - Z21R4D92BB/BK (C0705756) Diagram

GROMMET, SPEAKER, VOLUME [NOT SHOWN]

5413027

$2.39

COVER-DIAGNOSTIC,W/CLIP [NOT SHOWN]

4012170

$8.08

HARN-CHASSIS,RZR,T,RV MP,DX [INCL. 2-38]

2416290

$2,182.39

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

CLIP, EDGE, HARNESS

7081890

$10.39

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.79

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

GROMMET - 65 MM, BLK

5813954

$7.19

FUSE-ZCASE, 200A

4018415-200

$37.39

FUSE-MCASE,40A

4018414-40

$5.59

FUSE-MCASE,SLOTTED,30A

4018414-30

$7.19

CAP EVAP CONNECTOR

4018066

$3.99

FUSE-PDM

4017598

$57.19

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

BOOT-TMAP

-------

Unavailable

FUSE-5A,MINI BLADE

4011652

Unavailable

DIODE-6AMP

4011474

$40.46

FUSE - 7.5, MINI BLADE (BROWN)

4011068

Unavailable

FUSE-IGNITION,10 AMP

2434016

$4.79

RESISTOR - EVAP PULLUP - 1 KOHM

2414716

$8.79

DIODE - 6 AMP, 1/4, 3/16 TERM

2411035

$51.99

LED - PANEL MNT, 12V, BLUE

2413217

$51.99

FUSE-ATC 30 AMP

4017557

$35.99

ANTENNA,GPS,EXT

4018662

$111.99

CAP - VINYL, 125X375, BLACK

5438230

$5.59

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.19

CLIP - ROUTING, DIN BOX

7082020

$5.59

CLIP-EDGE,3-6MM THICKNESS

7082399

$5.27

LABEL-PDM,RZR

7189870

Unavailable

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.19

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.19

CLIP-EDGE, 1-3mm THICKNESS

7082403

$4.79

CLIP-EDGE, 1-3mm THICKNESS

7082402

$7.19

LABEL-FUSE BOX

7197253

Unavailable

LABEL-AMP

7193569

Unavailable

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.79

CLIP-EDGE,1-3MM THICKNESS

7082401

$7.91

FUSE-15AMP,MINI BLADE

4010859

$7.19

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19
