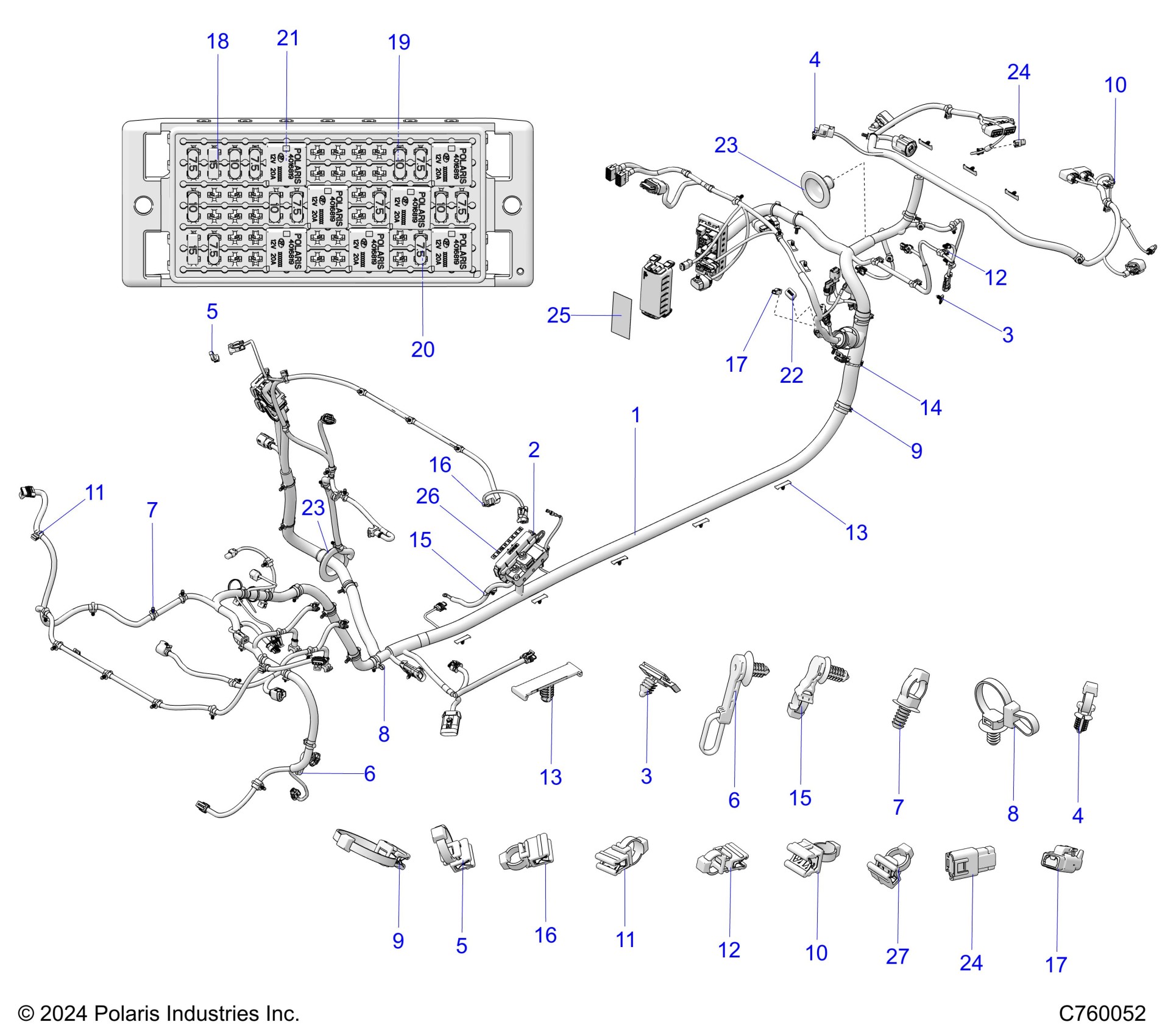

Polaris RZR PRO XP SPORT (R02) - Z25XPE92A4/B4 ELECTRICAL, WIRE HARNESS, CHASSIS - Z25XPE92A/92B (C760052) Diagram

#

Description
Price

1

HARN-CHASSIS,RZR,T,96X64 [INCL. 2-28]

2417233

$1,359.59

2

FUSE-PDM

4017598

$57.19

3

CLIP-FIR,HOLE6.35MM

7082134

$3.99

3

CLIP-FIR,HOLE6.35MM

7082134

$3.99

4

CLIP-ROUTING

7082522

$3.99

4

CLIP-ROUTING

7082522

$3.99

5

CLIP-EDGE, 1-3mm THICKNESS

7082402

$7.19

5

CLIP-EDGE, 1-3mm THICKNESS

7082402

$7.19

6

CLIP-OFFSET,FT6 FIR TREE

7082405

$3.99

6

CLIP-OFFSET,FT6 FIR TREE

7082405

$3.99

7

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

7

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

8

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

8

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

9

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

9

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

10

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.79

10

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.79

11

CLIP, EDGE, HARNESS

7081890

$10.39

11

CLIP, EDGE, HARNESS

7081890

$10.39

12

CLIP- EDGE, 1-3MM THICKNESS

7082427

$5.59

12

CLIP- EDGE, 1-3MM THICKNESS

7082427

$5.59

13

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.19

13

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.19

14

CLIP-EDGE,3-6MM THICKNESS

7082399

$5.27

15

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.19

15

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.19

16

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.79

16

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.79

17

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.19

17

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.19

18

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

19

FUSE-IGNITION,10 AMP

2434016

$4.79

20

FUSE - 7.5, MINI BLADE (BROWN)

4011068

Unavailable

21

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

22

RESISTOR - EVAP PULLUP - 1 KOHM

2414716

$8.79

23

GROMMET - 65 MM, BLK

5813954

$7.19

23

GROMMET - 65 MM, BLK

5813954

$7.19

24

COVER-JAE, MX19, 4P, F

4018703

$11.19

24

COVER-JAE, MX19, 4P, F

4018703

$11.19

25

LABEL-FUSEBOX,PROXP

7199862

Unavailable

26

LABEL-PDM, PROXP

7199863

Unavailable

27

CLIP-EDGE,3-6MM THICKNESS

7082399

$5.27
