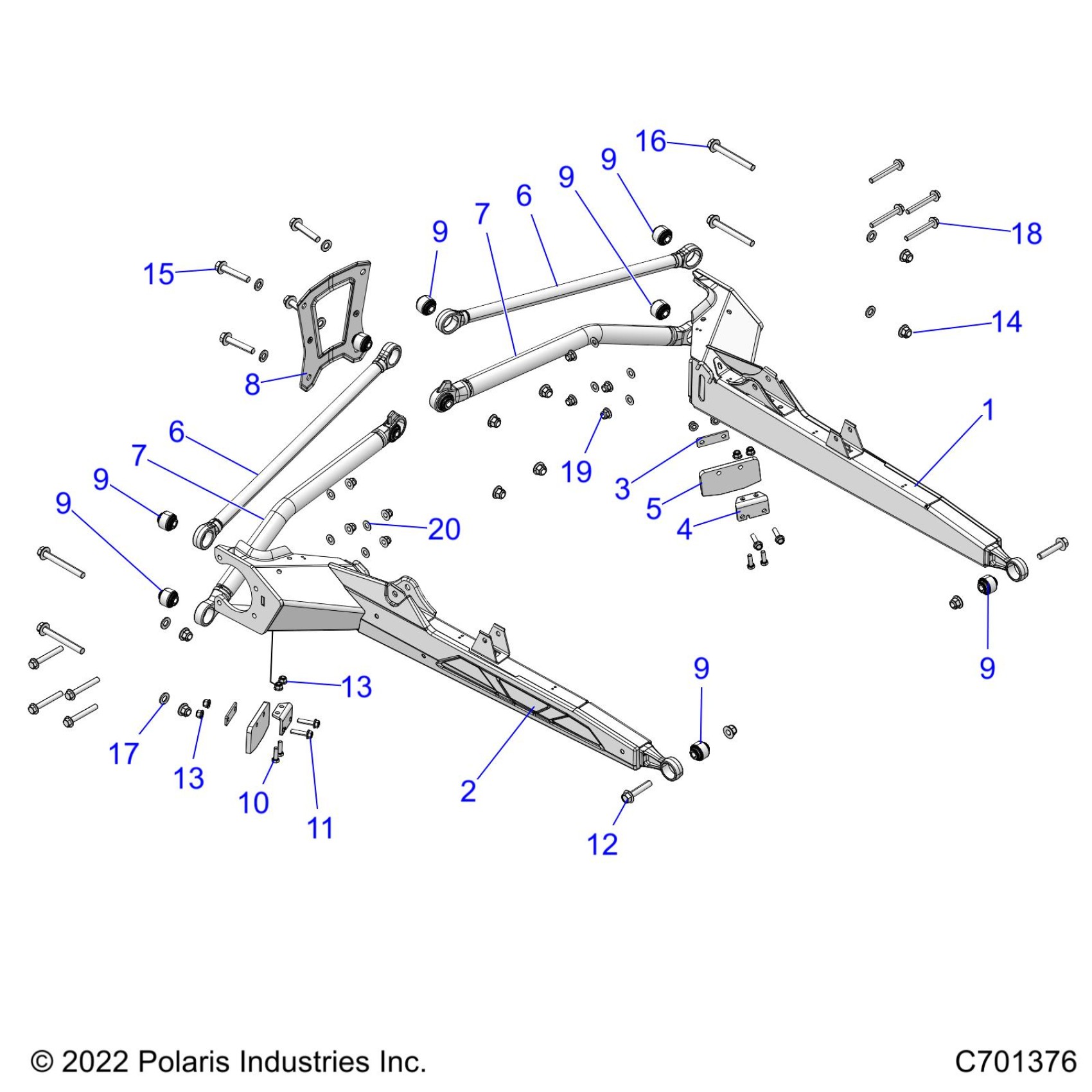

Polaris RZR PRO XP SPORT (R02) - Z23RAE92AG/92BG SUSPENSION, REAR CONTROL ARMS - Z23RAE92A/92B (C701376) Diagram

WELD-TRL ARM,LH,BLK

1544374-458

$383.99

WELD-TRL ARM,RH,BLK

1544375-458

$383.99

BRKT-BACKER,SCRAPER,M.BLK

5265115-458

$31.99

MOUNT-SCRAPER,BLK

5267029-458

$26.39

SCRAPER-DEBRIS,BLK

5454591-070

$14.39

ASM-RADIUS ROD,UPR,BLK [INCL. 9]

1544089-458

$151.99

ASM-RADIUS ROD,UPR,BLK [INCL. 9]

1544089-458

$151.99

ASM-RADIUS ROD,LWR,STRT, BLK [INCL. 9]

1544813-458

$171.99

ASM-RADIUS ROD,LWR,STRT, BLK [INCL. 9]

1544813-458

$171.99

PLATE-REAR,BOLT BRACE,BLK

5265395-458

$39.99

BEARING-SPHERICAL

7082253

$15.99

BEARING-SPHERICAL

7082253

$15.99

BEARING-SPHERICAL

7082253

$15.99

BEARING-SPHERICAL

7082253

$15.99

BEARING-SPHERICAL

7082253

$15.99

BEARING-SPHERICAL

7082253

$15.99

BEARING-SPHERICAL

7082253

$15.99

SCR-M8X1.25X25 8.8 HEX ZOD

7518952

$3.19

SCR-HXFL-M8X1.25X35 8.8 ZODv

7519052

$1.59

SCR-HXFL-M12X1.5X60 10.9 ZOD

7519138

$9.59

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

Unavailable

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

Unavailable

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

Unavailable

SCR-HXFL-M12X1.5X65 10.9 ZOD

7520477

$3.19

SCR-HXFL-M12X1.5X105 10.9 ZOD

7520479

$7.19

WSHR-13.0X24.0X2.5 ZPC

7556287

$7.19

SCR-HXFL-M10X1.25X75 10.9 ZOD

7519286

$7.19

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99
