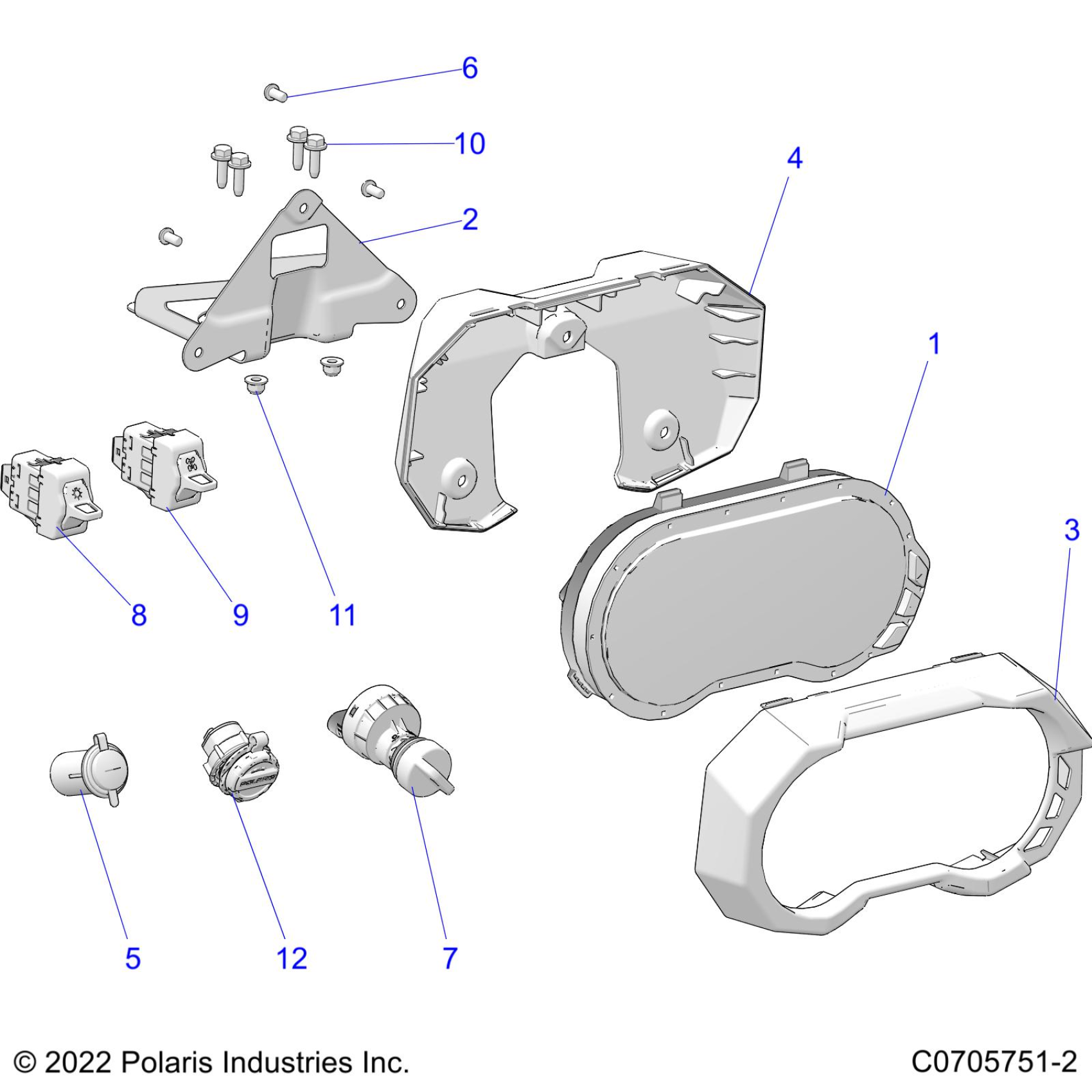

Polaris RZR PRO XP SPORT (R02) - Z23RAE92AG/92BG ELECTRICAL, DASH INSTRUMENTS AND CONTROLS - Z23RAE92A/92B (C0705751-2) Diagram

#

Description

Price

1

ASM-C4,RZR [TO 9/30/2022]

3286839

$529.99

1

ASM-C4,RZR,250K,NAS [FROM 9/30/2022]

3286956

$529.99

2

BRKT-MOUNT,C4 GAUGE

5266496

$44.51

3

BEZEL-GAUGE,FRONT

5455956

$9.70

4

BEZEL-GAUGE,REAR

5455957

$9.70

5

RECEPTACLE-POD MNT,12 VOLT

4012393

$36.41

6

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

7

SWITCH-KEY,4 POSITION,SEALED

4016135

$56.99

8

SWITCH-HEADLIGHT

4017992

$71.24

9

SWITCH-AWD

4017993

$71.24

10

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

11

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

12

ASM-CHARGE PORT,BASE

2415295

$44.51
