CHASSIS, MAIN FRAME AND SKID PLATES - Z23RAE92A/92B (C730540)

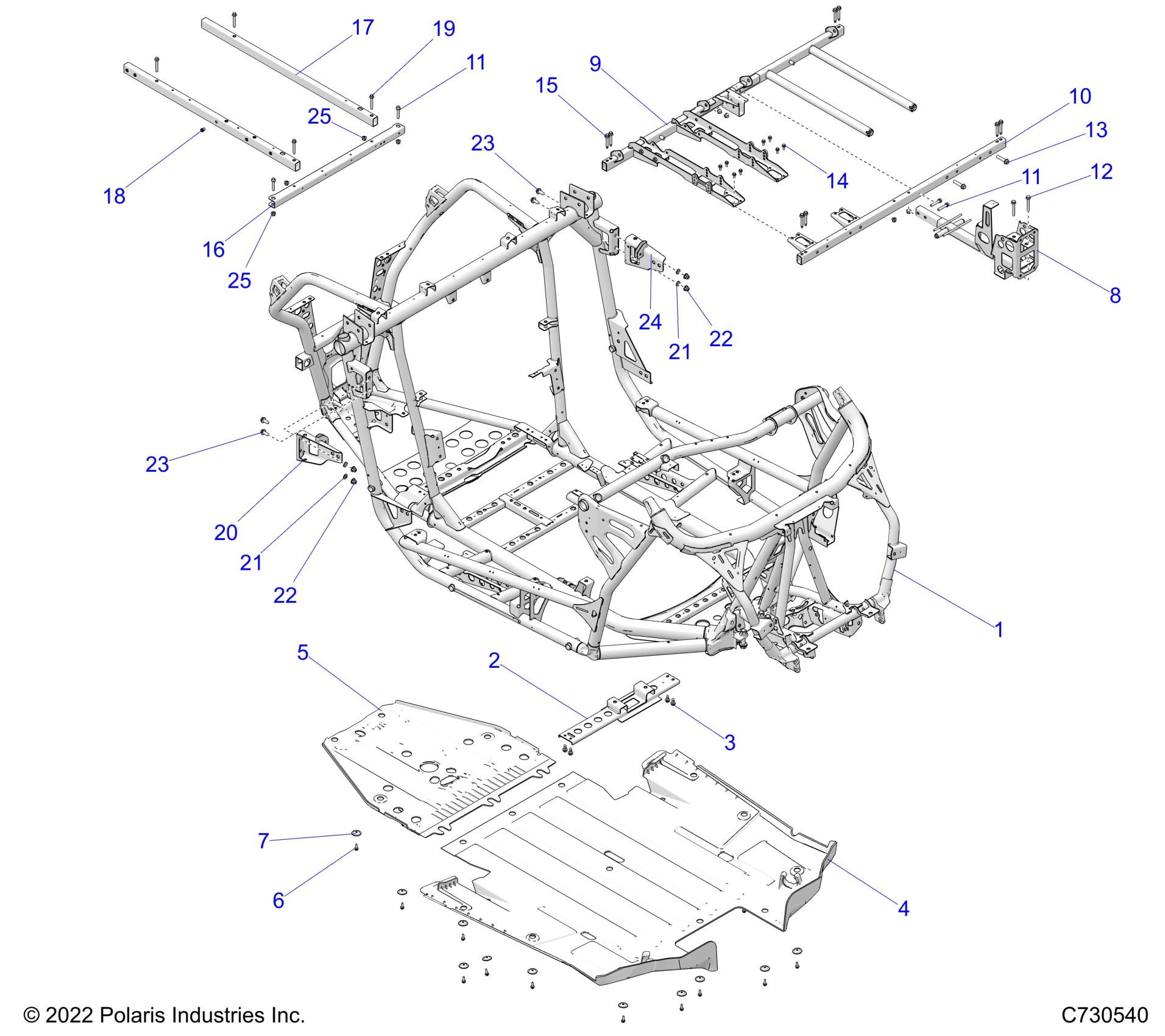

Polaris RZR PRO XP SPORT (R02) - Z23RAE92AG/92BG CHASSIS, MAIN FRAME AND SKID PLATES - Z23RAE92A/92B (C730540) Diagram
#
Description
Price
1
WELD-MAINFRAME,64,BLK
1027221-458
$3,128.39
2
WELD-MOUNT,PROPSHAFT,ECOAT
1023970-329
$47.99
3
BOLT-M8X1.25X20,HXHDFLG,W/PTCH
7518450
$1.59
4
PLATE-SKID,FRONT,BLK
5456058-070
$239.99
5
PLATE-SKID,REAR,BLK
5456082-070
$131.99
6
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
$1.49
7
WASHER-SKID PLATE
7556065
$4.79
8
WELD-MOUNT,SHIFT/SCM,ECOAT
1026072-329
$143.99
9
WELD-SEAT BASE,ECOAT
1024740-329
$167.99
10
WELD-SEAT BASE,FRONT,ECOAT
1024840-329
$83.99
11
SCR-SH-M8X1.25X30 8.8 ZPC
7516732
$1.59
11
SCR-SH-M8X1.25X30 8.8 ZPC
7516732
$1.59
12
SCR-M8X1.25X60-HX/FL-Y
7516733
$6.39
13
SCR-M10X1.50X50 HX/FL-Y
7518687
$5.22
14
SCR-HXFL-M6X1.0X16 8.8 ZYL NYL
7519236
$3.19
15
SCR-HXFL-M8X1.25X50 DP ZODP30
7519245
$3.99
16
BRKT-CLOSE OFF SUPPORT,ECOAT
5269415-329
$63.99
17
WELD-MOUNT,BOX [INCL. 18][FROM 5/29/2024]
1023962
$39.99
17
WELD-MOUNT,BOX [INCL. 18][TO 5/29/2024]
1027997
Unavailable
18
NUT-RIVNUT,HEX,M6X1.00
7547790
$3.19
19
SCR-M8X1.25X55,HX/FL-Y
7517281
$8.99
20
WELD-MOUNT,HINGE,UPR,LH,BLK
1027227-458
$55.99
21
WASHER-3/8 FW SAE STL THRU-HRD
7556153
$1.99
21
WASHER-3/8 FW SAE STL THRU-HRD
7556153
$1.99
22
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$3.99
22
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$3.99
23
SCR-M10X1.5X25 8.8 HXFL ZOD
7519071
$4.79
23
SCR-M10X1.5X25 8.8 HXFL ZOD
7519071
$4.79
24
WELD-MOUNT,HINGE,UPR,RH,BLK
1027228-458
$55.99
25
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
25
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
