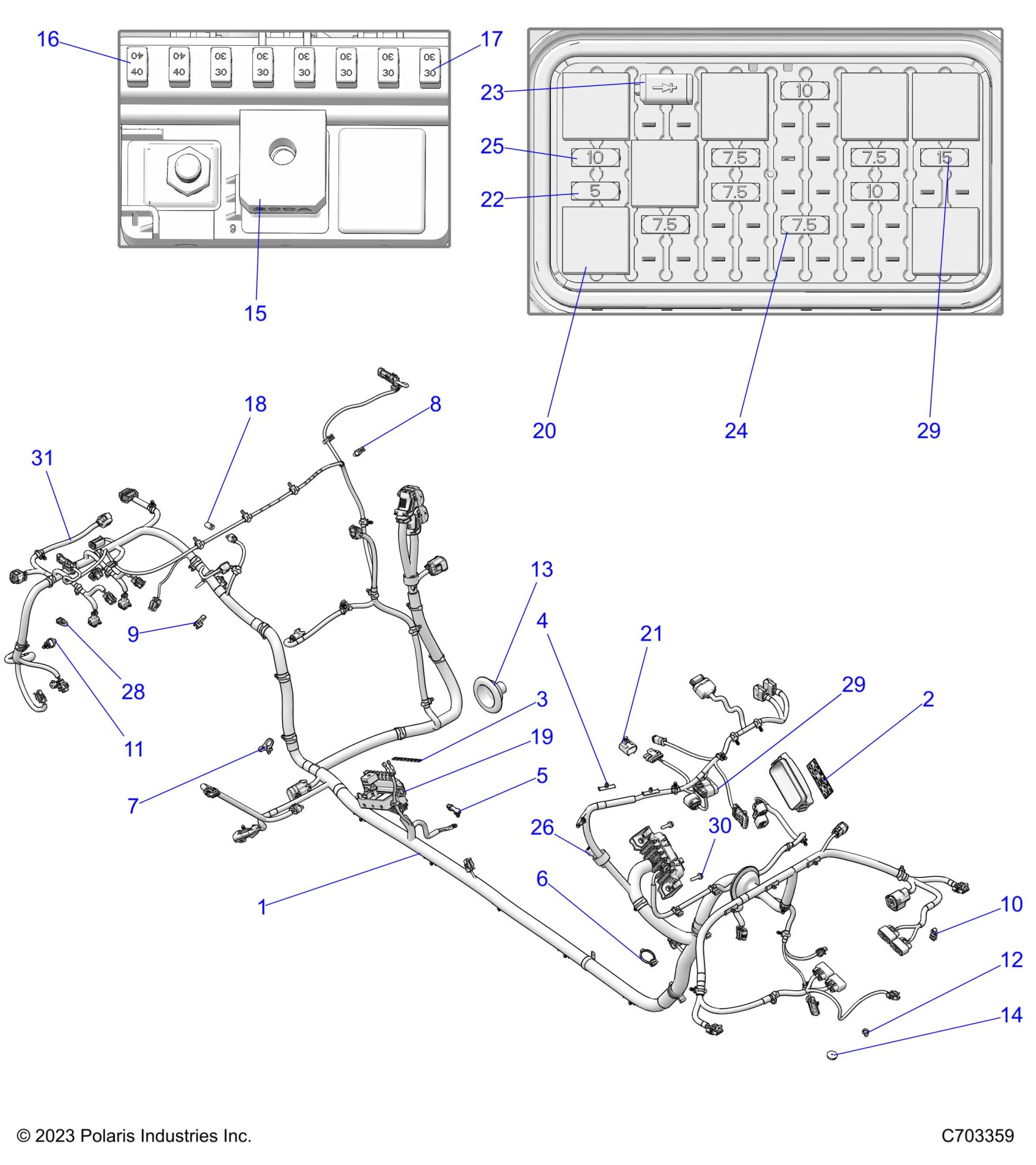

Polaris RZR PRO XP SPORT (R01) - Z24RAE92AG/BG ELECTRICAL, WIRE HARNESS, CHASSIS - Z24RAE92AG/BG (C703359) Diagram

#

Description
Price

1

HARN-CHASSIS,RZR,T,96X64 [INCL. 2-29]

2416630

$1,649.99

2

LABEL-FUSE BOX

7197253

Unavailable

3

LABEL-PDM,RZR

7191115

Unavailable

4

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.17

5

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.17

6

CLIP-EDGE,3-6MM THICKNESS

7082399

$6.99

7

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.84

8

CLIP, EDGE, HARNESS

7081890

$10.32

9

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.94

10

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.65

11

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

GROMMET - 65 MM, BLK

5813954

$8.99

14

GROMMET, SPEAKER, VOLUME

5413027

$2.38

15

FUSE-ZCASE, 200A

4018415-200

Unavailable

16

FUSE-MCASE,40A

4018414-40

$6.46

17

FUSE-MCASE,SLOTTED,30A

4018414-30

$8.08

18

CAP EVAP CONNECTOR

4018066

$4.03

19

FUSE-PDM

4017598

$69.99

20

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$36.41

21

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.89

22

FUSE-5A,MINI BLADE

4011652

$11.32

23

DIODE-6AMP

4011474

$44.51

24

FUSE - 7.5, MINI BLADE (BROWN)

4011068

$11.32

25

FUSE-IGNITION,10 AMP

2434016

$5.65

26

RESISTOR - EVAP PULLUP - 1 KOHM

2414716

$9.70

28

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.76

29

CAP-EVAP CONNECTOR [EVAP MODELS]

4018655

$4.03

29

CAP-EVAP CONNECTOR [EVAP MODELS]

4018655

$4.03

30

SCR-HXFL-M6X1.0X25 8.8 RIE

7518533

$1.19

31

HARN-TMAP,505MM

2416468

$53.24
