SUSPENSION, FRONT CONTROL ARMS - Z20RA_92AC/BC/AK/BK/AR/BR/AE/BE/AH/BH/AT/BT (C0702881-2)

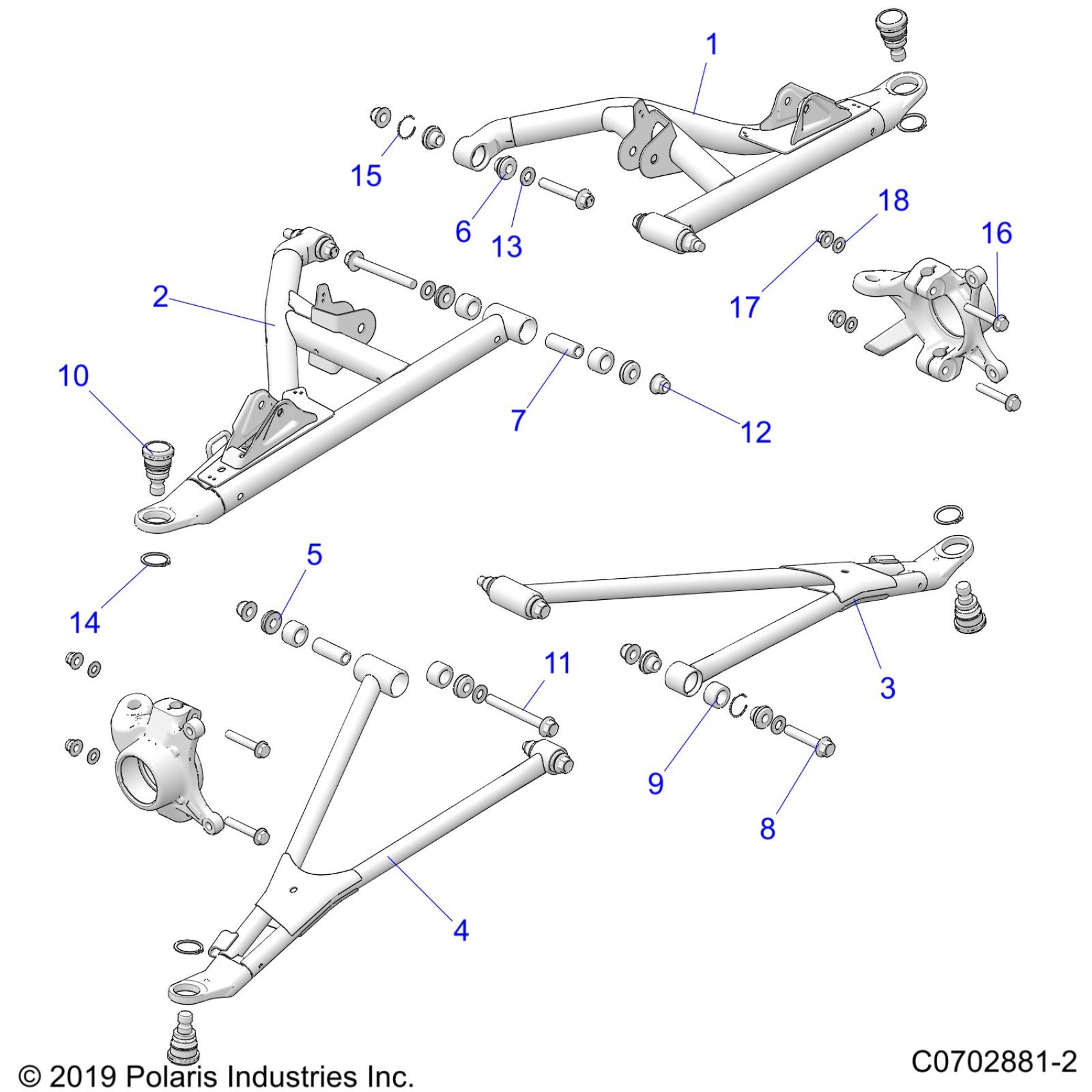

Polaris RZR PRO XP (R06) - Z20RAB92AC/K/R/BC/K/R/C92AC/E/R/BC/E/R/D92AC/K/R/BC/K/R/E92AH/T/BH/T SUSPENSION, FRONT CONTROL ARMS - Z20RA_92AC/BC/AK/BK/AR/BR/AE/BE/AH/BH/AT/BT (C0702881-2) Diagram
#
Description
Price
1
WELD-CTRL ARM,UPR,FR,LH,64,RED [BAK][BBK][BAR][BBR][CAR][CBR][DAK][DBK][DAR][DBR]
1544322-293
$247.99
1
ASM-UPPER CTL ARM,LH,T,64,BLK [EAH][EBH][EAT][EBT]
1545203-458
$387.99
1
WELD-CTRL ARM,UPR,FR,LH,64,BLU [BAC][BBC][CAC][CBC][DAC][DBC]
1544322-751
$247.99
1
WLD-CTRL ARM,UPR,FR,LH,64,OR.B [CBE][CAE]
1544322-647
$247.99
2
WELD-CTRL ARM,UPR,FR,RH,64,RED [BAK][BBK][BAR][BBR][CAR][CBR][DAK][DBK][DAR][DBR]
1544323-293
$247.99
2
ASM-UPPER CTL ARM,RH,T,64,BLK [EAH][EBH][EAT][EBT]
1545204-458
$387.99
2
WELD-CTRL ARM,UPR,FR,RH,64,BLU [BAC][BBC][CAC][CBC][DAC][DBC]
1544323-751
$247.99
2
WLD-CTRL ARM,UPR,FR,RH,64,OR.B [CBE][CAE]
1544323-647
$247.99
3
WELD-CTRL ARM,LWR,FR,LH,64,RED [BAK][BBK][BAR][BBR][CAR][CBR][DAK][DBK][DAR][DBR]
1544336-293
$147.99
3
WELD-CTRL ARM,LWR,FR,LH,64,BLK [EAH][EBH][EAT][EBT]
1544336-458
$147.99
3
WELD-CTRL ARM,LWR,FR,LH,64,BLU [BAC][BBC][CAC][CBC][DAC][DBC]
1544336-751
$162.79
3
WLD-CTRL ARM,LWR,FR,LH,64,OR.B [CBE][CAE]
1544336-647
$147.99
4
WELD-CTRL ARM,LWR,FR,RH,64,RED [BAK][BBK][BAR][BBR][CAR][CBR][DAK][DBK][DAR][DBR]
1544337-293
$147.99
4
WELD-CTRL ARM,LWR,FR,RH,64,BLK [EAH][EBH][EAT][EBT]
1544337-458
$147.99
4
WELD-CTRL ARM,LWR,FR,RH,64,BLU [BAC][BBC][CAC][CBC][DAC][DBC]
1544337-751
$147.99
4
WLD-CTRL ARM,LWR,FR,RH,64,OR.B [CBE][CAE]
1544337-647
$147.99
5
ASM-PIVOT CAP,SEALED,M12
1543612
$5.59
6
ASM-PIVOT CAP,SEALED,M12,MINI
1543998
$12.79
7
SHAFT-PIVOT,SHORT,M12
5140555
$8.79
8
SCR-HXFL-M12X1.5X75 10.9 ZOD
7521073
$4.39
9
BUSHING-STANDARD,SUSP,M12
5452271
$3.19
10
BALL-JOINT,HARDENED,HI-MISALGN [TO 7/3/2023]
7082422
Unavailable
10
BALL-JOINT,HARDENED,HI-MISALGN [FROM 7/3/2023]
7082892
$47.99
11
SCR-10-24X1/2,PHTXTRIRD,SEMS-Y
7512084
$1.49
12
NUT-M12X1.5, FLG, NYLOC-OLIVE D
7547334
$4.79
13
WSHR-13.0X24.0X2.5 ZPC
7556287
$7.19
14
RING-RTG,DSH-33ST
7710716
$7.19
15
30MM SPIRAL RING,STEEL
7710869
$3.99
16
SCR-HXFL-M10X1.25X60 10.9 ZOD
7519306
$5.59
17
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
18
WASHER-3/8 FW SAE STL THRU-HRD
7556153
$1.99
