- RZR PRO XP (R06) - Z20RAB92AC/K/R/BC/K/R/C92AC/E/R/BC/E/R/D92AC/K/R/BC/K/R/E92AH/T/BH/T
ELECTRICAL, WIELECTRICAL, WIRE HARNESS, CHASSIS - Z20RAD92AC/BC/AK/BK/AR/BR (C2415217)

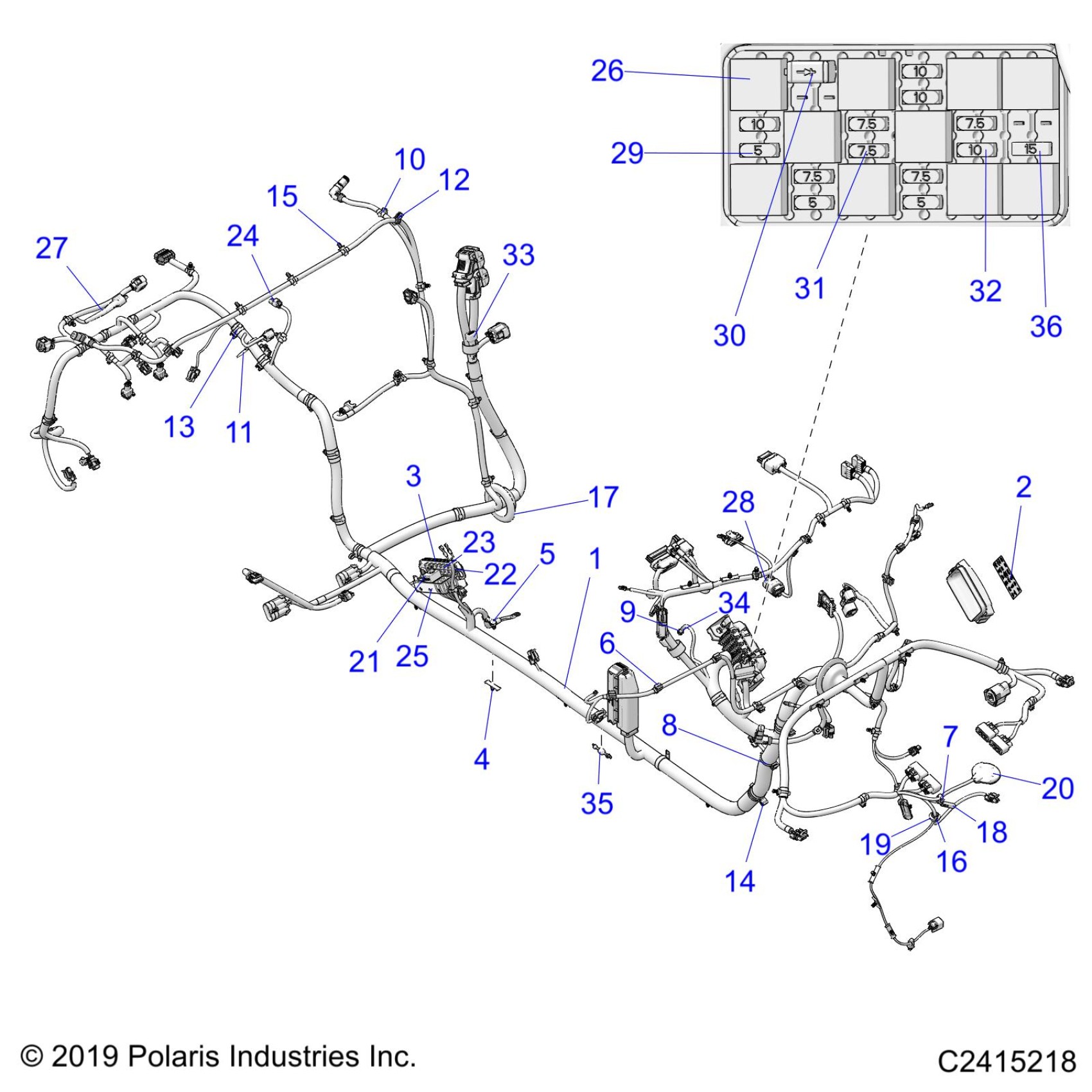

Polaris RZR PRO XP (R06) - Z20RAB92AC/K/R/BC/K/R/C92AC/E/R/BC/E/R/D92AC/K/R/BC/K/R/E92AH/T/BH/T ELECTRICAL, WIELECTRICAL, WIRE HARNESS, CHASSIS - Z20RAD92AC/BC/AK/BK/AR/BR (C2415217) Diagram
#
Description
Price
1
HARNESS-CHASSIS,RZR,T,96X64,DX [INCL 2-36]
2415218
Unavailable
2
LABEL-FUSE BOX
7192416
Unavailable
3
LABEL-PDM,RZR
7189870
Unavailable
4
CLIP-XMAS,6.35MM HOLE,TAPE-ON
7082411
$3.19
5
CLIP-FIR TREE,12.5MM OFF,90DEG
7082406
$3.19
6
CLIP-EDGE,1-3MM THICKNESS
7082403
$4.79
7
CLIP-EDGE, 1-3mm THICKNESS
7082402
$7.19
8
CLIP-EDGE,3-6MM THICKNESS
7082399
$5.27
9
CLIP-ROUTING,DIN BOX
7082020
$5.59
10
CABLE-TIE,DIA2.5-34MM,FIR-TREE
7082003
$3.19
11
CABLE-TIE,DIA6-38MM,DUAL-LOOP
7081916
$4.79
12
CLIP-EDGE,HARNESS
7081890
$10.39
13
CLIP-EDGE,DIA5-50MM,OUT-SER
7081824
$12.79
14
CLIP-EDGE,1-3MM,6-45MM,SERT.
7081808
$5.59
15
CLIP FIR-TREE,DIA6-33MM
7081496
$4.79
16
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
17
GROMMET-65MM,BLK
5813954
$7.19
18
CAP-VINYL,125X375,BLACK
5438230
$5.59
19
GROMMET-SPEAKER,VOLUME
5413027
$2.39
20
ANTENNA,GPS,EXT
4018662
$111.99
21
FUSE-ZCASE, 200A
4018415-200
$37.39
22
FUSE-MCASE,40A
4018414-40
$5.59
23
FUSE-MCASE,SLOTTED,30A
4018414-30
$7.19
24
CAP-EVAP CONNECTOR
4018066
$3.99
25
FUSE-PDM
4017598
$57.19
26
RELAY-SPST,12V,20A,EPXY,HFA
4016819
$32.37
27
BOOT-TMAP
4016101
$23.99
28
COVER-DIAGNOSTIC,W/CLIP
4012170
$8.08
29
FUSE-5A,MINI BLADE
4011652
Unavailable
30
DIODE-6AMP
4011474
$40.46
31
FUSE-7.5,MINI BLADE (BROWN)
4011068
Unavailable
32
FUSE-IGNITION,10 AMP
2434016
$4.79
33
RESISTOR-EVAP PULLUP-1KOHM
2414716
$8.79
34
LED-PANEL MNT,12V,BLUE
2413217
$51.99
35
DIODE-6AMP,1/4,3/16 TERM
2411035
$51.99
36
FUSE-MINI BLADE,15 AMP
2410280
Unavailable
