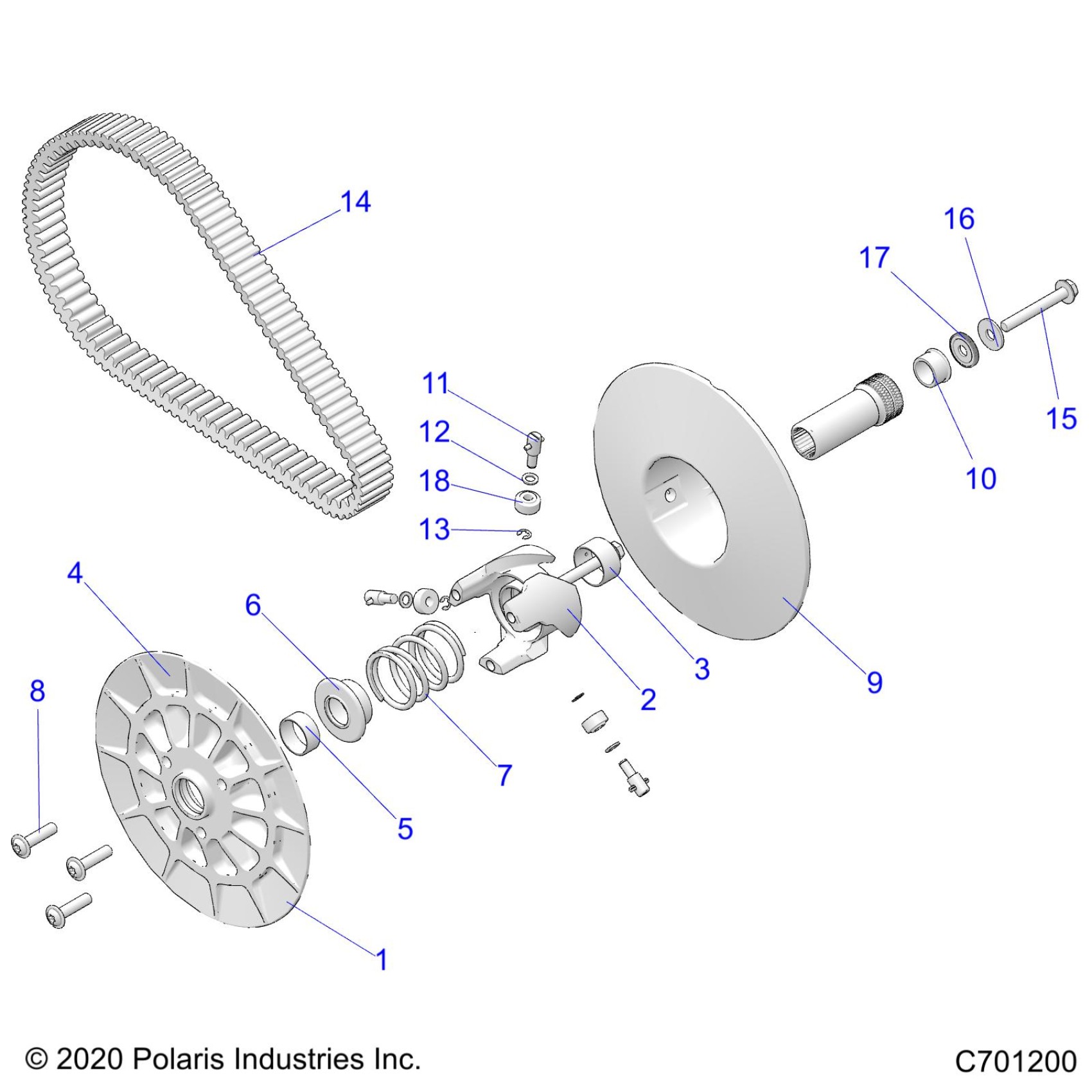

Polaris RZR PRO XP (R06) - Z20RAB92AC/K/R/BC/K/R/C92AC/E/R/BC/E/R/D92AC/K/R/BC/K/R/E92AH/T/BH/T DRIVE TRAIN, SECONDARY CLUTCH - Z20RA_92AC/BC/AK/BK/AR/BR/AE/BE/AH/BH/AT/BT (C701200) Diagram

ASM-DRIVEN,MOVEABLE,P90X,HD [INCL. 2-8][TO 10/7/2019]

1323780

Unavailable

ASM-DRIVEN,MOVEABLE,P90X,HD [INCL. 2-8][FROM 10/7/2019 TO 11/4/2019]

1323782

Unavailable

ASM-DRIVEN,MOVEABLE,P90X,HD [INCL. 2-8][FROM 11/4/2019]

1323789

$275.99

ASM-HELIX,MACH,38-44F-BA90 [INCL. 3]

1323606

$187.99

BEARING-DU,35X20

3514903

$31.99

ASM-MOVEABLE SHEAVE [INCL. 5][TO 11/4/2019]

1323781

Unavailable

ASM-MOVABLE SHEAVE,MU [INCL. 5][FROM 11/4/2019]

1323788

Unavailable

BUSHING,DU,P90X [TO 11/4/2019]

3515007

$7.19

BEARING-MU,32X36X15 [FROM 11/4/2019]

3515170

$5.59

CUP-DRIVEN SPRING,P90X

5633759

$13.59

SPRING-DRIVEN,120-220 [TO 10/7/2019]

7045138

Unavailable

SPRING-DRIVEN,160-260 [FROM 10/7/2019]

7045524

$19.99

SCR-TXFLBH-M10X1.25X40 10.9SPC

7520698

$4.79

ASM-DRIVEN,STATIONARY,P90X,HD [INCL 10-13]

1323607

$155.99

BUSHING-P90X,29X22X17

5141303

$6.39

PIN-DRIVEN,ROLLER,12MM

5142358

$5.59

WSHR-8.4X14 .0X1.6

7556211

$4.79

E-CLIP,M6, DIN 6799

7710466

$3.19

BELT-DRIVE

3211202

$159.99

BELT-DRIVE,12.1CD,HDY HD BELT

3212358

$207.99

SCR-HXFL-M10X1.25X75 10.9 ZOD

7519286

$7.19

WASHER-FLAT M10X30X2.5 HARDEN

7556698

$4.79

SHIM-RING,23.25X32.25X0.5

7557060

$2.39

ROLLER-8X22X11.25,TORLON �

5455537

$39.59
