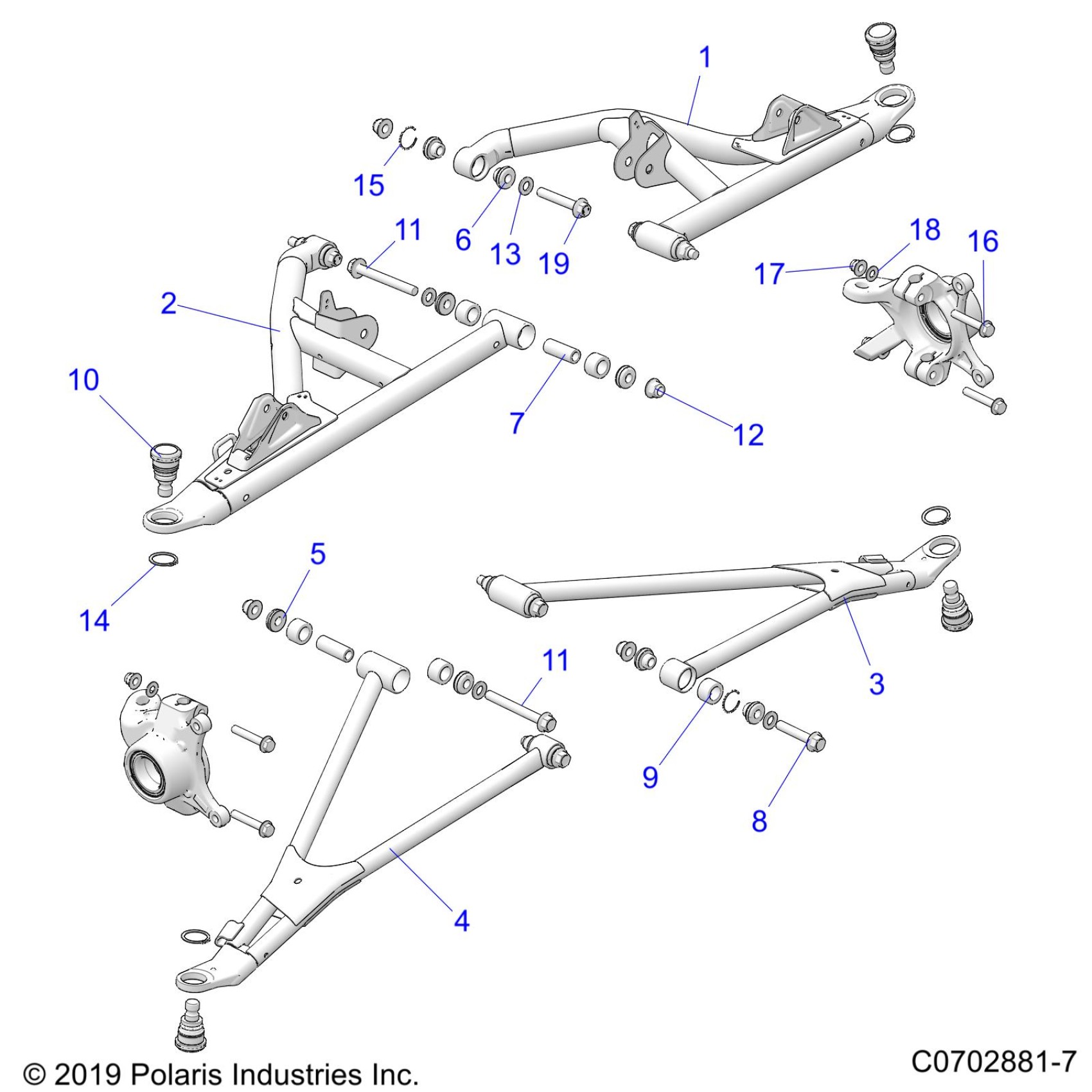

Polaris RZR PRO XP PREMIUM (R04) - Z23RAB92AK/92BK SUSPENSION, FRONT CONTROL ARMS - Z23RAB92A/92B (C0702881-7) Diagram

ASM-UPPER CTL ARM,LH,T,64,BLK

1545203-458

$387.99

ASM-UPPER CTL ARM,RH,T,64,BLK

1545204-458

$387.99

WELD-CTRL ARM,LWR,FR,LH,64,BLK

1544867-458

$127.99

WELD-CTRL ARM,LWR,FR,RH,64,BLK

1544868-458

$127.99

ASM-PIVOT CAP, SEALED, M12 [INCL. 5]

1543612

$5.59

CAP-PIVOT SEAL,M12

5139992

$3.99

ASM-PIVOT CAP,SEALED,M12,MINI [INCL. 6]

1543998

$12.79

CAP-PIVOT SEAL,M12,MINI

5141426

$4.39

SHAFT-PIVOT,SHORT,M12

5140555

$8.79

SCR-HXFL-M12X1.5X65 10.9 ZOD

7520477

$3.19

BUSHING-STANDARD, SUSP, M12

5452271

$3.19

BALL-JOINT,HARDENED,HI-MISALGN [TO 7/3/2023]

7082422

Unavailable

BALL-JOINT,HARDENED,HI-MISALGN [FROM 7/3/2023]

7082892

$47.99

SCR-HXFL-M12X1.5X105 10.9 ZOD

7520479

$7.19

SCR-HXFL-M12X1.5X105 10.9 ZOD

7520479

$7.19

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.79

WSHR-13.0X24.0X2.5 ZPC

7556287

$7.19

RING-RTG,DSH-33ST

7710716

$7.19

30MM SPIRAL RING,STEEL

7710869

$3.99

SCR-HXFL-M10X1.25X60 10.9 ZOD

7519306

$5.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

SCR-HXFL-M12X1.5X75 10.9 ZOD

7521073

$4.39
