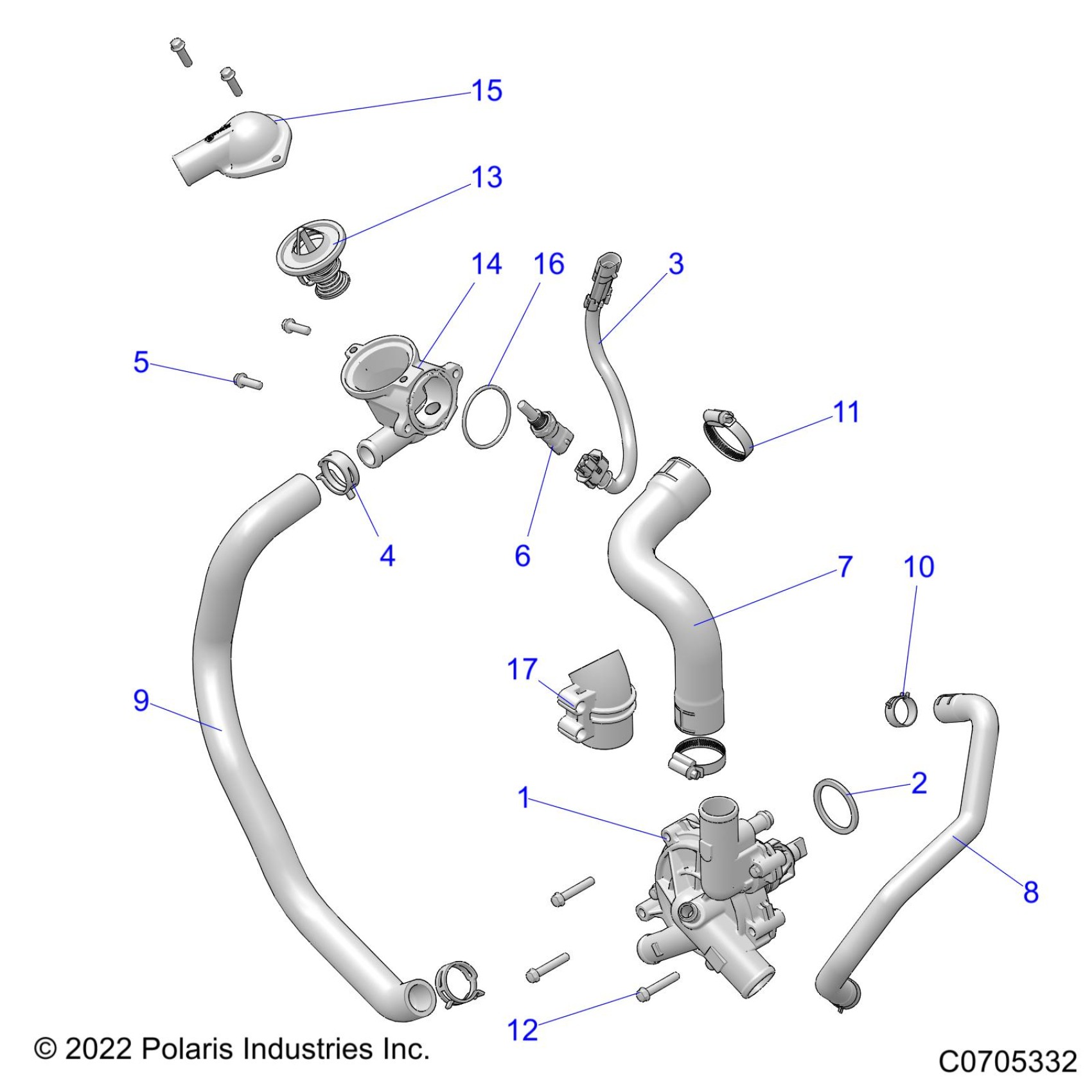

Polaris RZR PRO XP PREMIUM (R04) - Z23RAB92AK/92BK ENGINE, WATERPUMP AND BYPASS - Z23RAB92A/92B (C0705332) Diagram

Description

Price

ASM, WATERPUMP

1208649

$215.59

FILTER-WP

5814207

$2.39

WIRE, THERMISTER LEAD

4014319

$75.99

CLAMP, SPRINGBAND

7081970

$5.59

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

SENSOR-THERMISTER

4010644

$87.13

HOSE-WATERPUMP,OUT

5416305

$59.99

HOSE-OIL COOLER OUT

5416752

$27.99

HOSE, BYPASS

5416629

$35.99

CLAMP-HOSE,SPRING .81

7081026

$7.99

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

SCR-HXFL-M6X1.0X35, W/PATCHLOK

7519280

$4.79

THERMOSTAT, DOUBLE, ACTING, 1MM

7052600

$43.99

HOUSING, THERMOSTAT [TO 1/3/2022]

5138282

$27.99

HOUSING, THERMOSTAT [FROM 1/3/2022]

5143463

$31.99

COVER, THERMOSTAT, CAST

5632421

$35.99

O-RING

5414591

$3.22

SUPPORT-STATOR WIRE

5417378

$114.39
