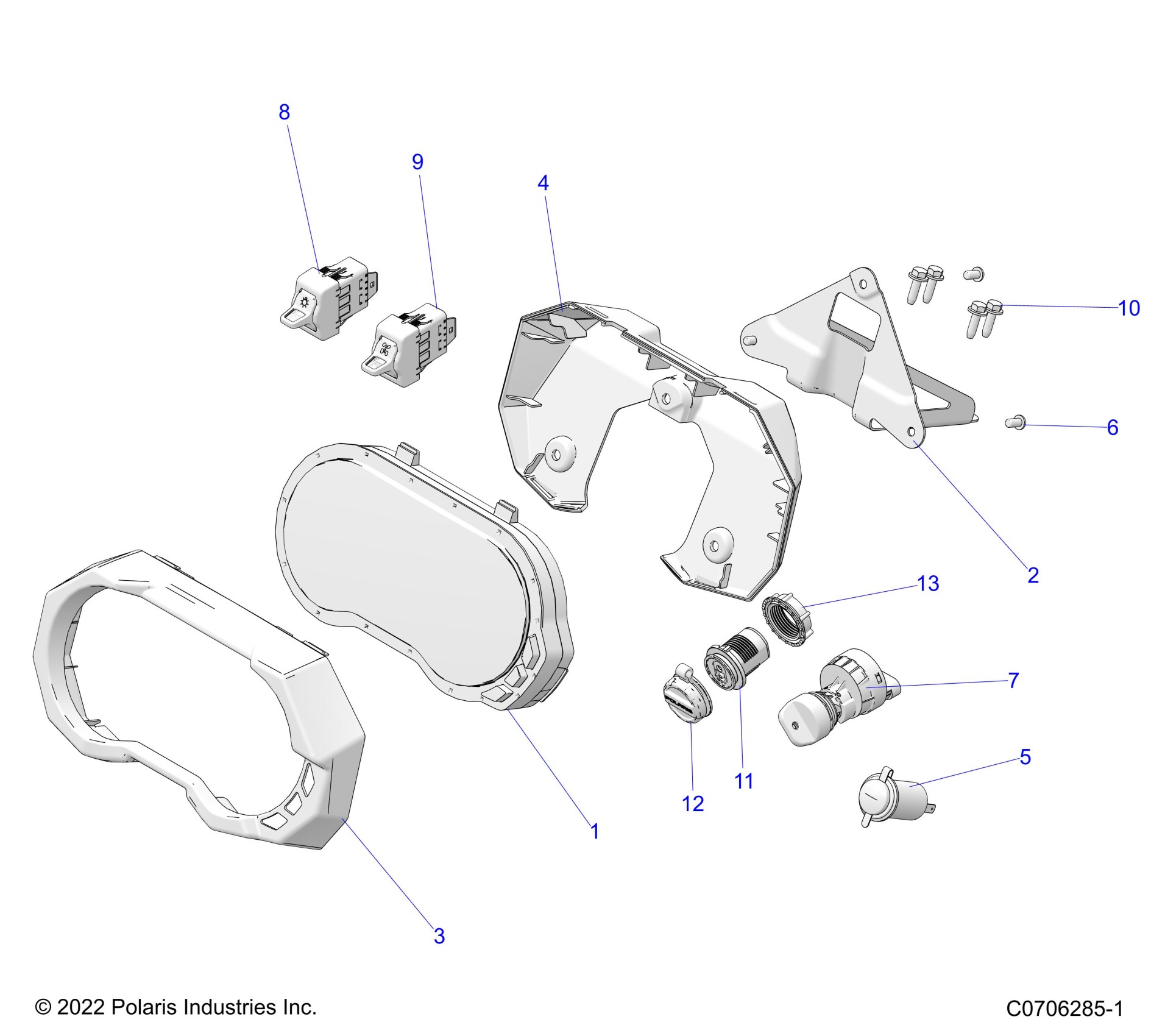

Polaris RZR PRO XP PREMIUM (R04) - Z23RAB92AK/92BK ELECTRICAL, DASH INSTRUMENTS AND CONTROLS - Z23RAB92A/92B (C0706285-1) Diagram

#

Description

Price

1

ASM-C4,RZR [TO 9/30/2022]

3286839

Unavailable

1

ASM-C4,RZR,250K,NAS [FROM 9/30/2022]

3286956

$394.39

2

BRKT-MOUNT,C4 GAUGE

5266496

$43.99

3

BEZEL-GAUGE,FRONT

5455956

$9.59

4

BEZEL-GAUGE,REAR

5455957

$9.59

5

RECEPTACLE-POD MNT,12 VOLT

4012393

$31.99

6

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

7

SWITCH-KEY,4 POSITION,SEALED

4016135

$47.99

8

SWITCH-HEADLIGHT

4017992

$59.99

9

SWITCH-AWD

4017993

$59.99

10

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

11

ASM-CHARGE PORT,BASE [INCL. 11-13]

2415295

$40.46

11

PLUG-HARNESS CHARGE PORT

2415198

Unavailable

12

CAP-CHARGE PORT

5417215

$12.79

13

NUT-CHARGE PORT

5456622

Unavailable
