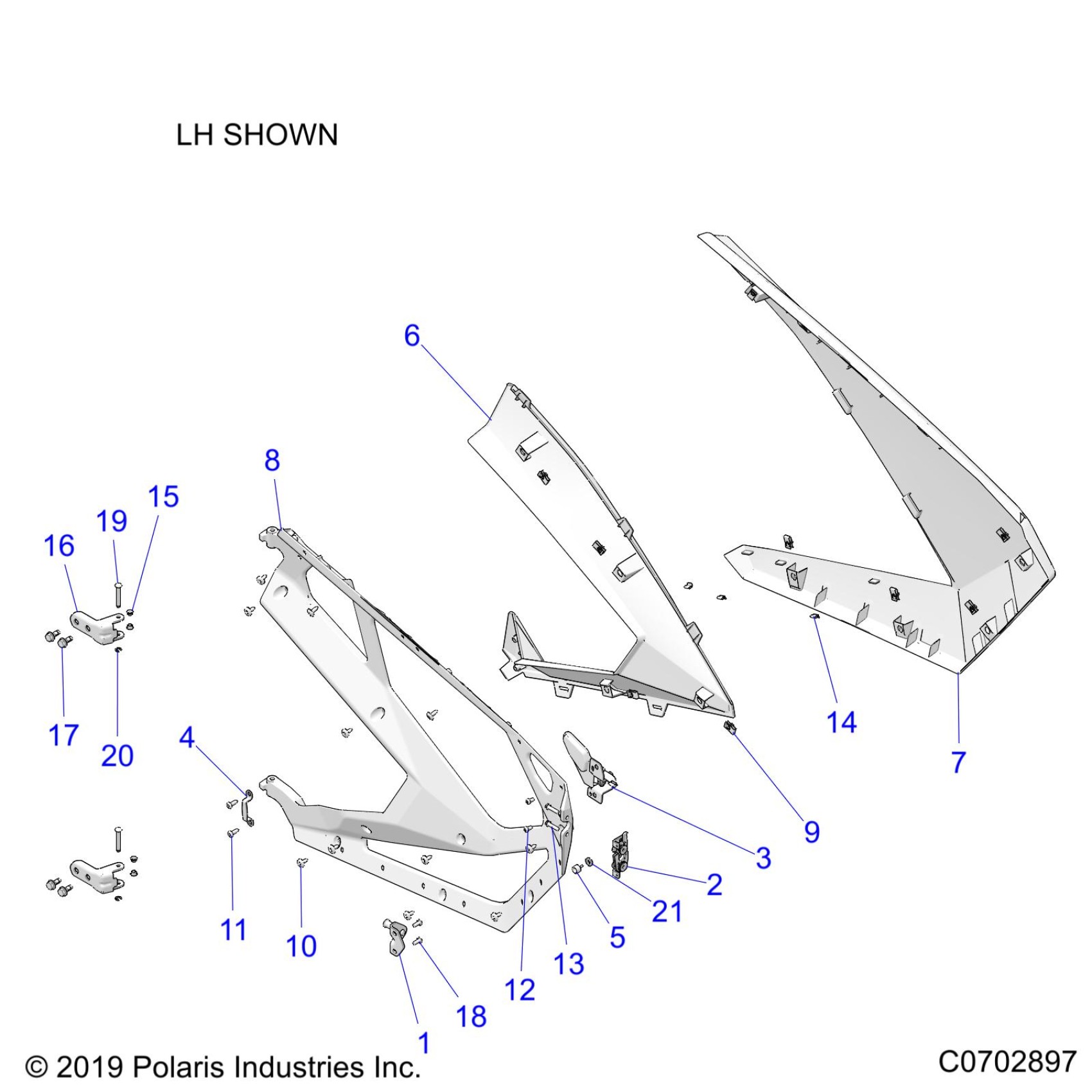

Polaris RZR PRO XP PREMIUM (R04) - Z23RAB92AK/92BK BODY, DOORS - Z23RAB92A/92B (C0702897) Diagram

#

Description
Price

1

WELD-STRIKER

1026523

$15.83

2

ASM-LATCH,DOOR,LH [TO 10/05/2023]

2637039

$31.99

2

ASM-LATCH,DOOR,LH [FROM 10/05/2023]

2639731

$27.99

2

ASM-LATCH,DOOR,RH [TO 10/05/2023]

2637040

$31.99

2

ASM-LATCH,DOOR,RH [FROM 10/05/2023]

2639732

$27.99

3

ASM-ACTUATOR,LATCH,LH

2637402

$39.99

3

ASM-ACTUATOR,LATCH,RH

2637403

$39.99

4

BRKT-TRIM,DOOR

5267829

$8.79

5

BUMPER-DOOR

5417528

Unavailable

6

PANEL-DOOR,REAR PREM,LH,BLK

5456154-070

Unavailable

6

PANEL-DOOR,REAR PREM,RH,BLK

5456155-070

Unavailable

7

PANEL-DOOR,FRT,PAINT,LH,S.GRPH

5455960-509

$475.79

7

PANEL-DOOR,FRT,PAINT,RH,S.GRPH

5455961-509

$475.79

8

CASTING-DOOR FRAME,LH,BLK

5634424-458

$327.99

8

CASTING-DOOR FRAME,RH,BLK

5634425-458

$291.99

9

CLIP-U SPEED NUT

7081305

$1.99

10

SCR-M6X1X16 TR/TX-M

7518936

$3.99

11

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19

12

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

13

SCREW-HXFLG,M6X1.0X25,10.9

7519297

$3.99

14

FASTENER-U TYPE CLIP

7670040

$3.99

15

BUSHING-DOOR PIVOT

5266311

$3.19

16

BRKT-DOOR HINGE

5267526

$31.99

17

SCR-TXTH-M8X1.25X20 8.8 ZB3 P3

7519997

$3.99

18

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

19

SCR-TXWH-M6X1.0X54 10.9 ZTB SP

7527850

$3.19

20

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

21

SLEEVE-SHLD,15.5OD,10 OD,6.5ID

5140211

$3.99
