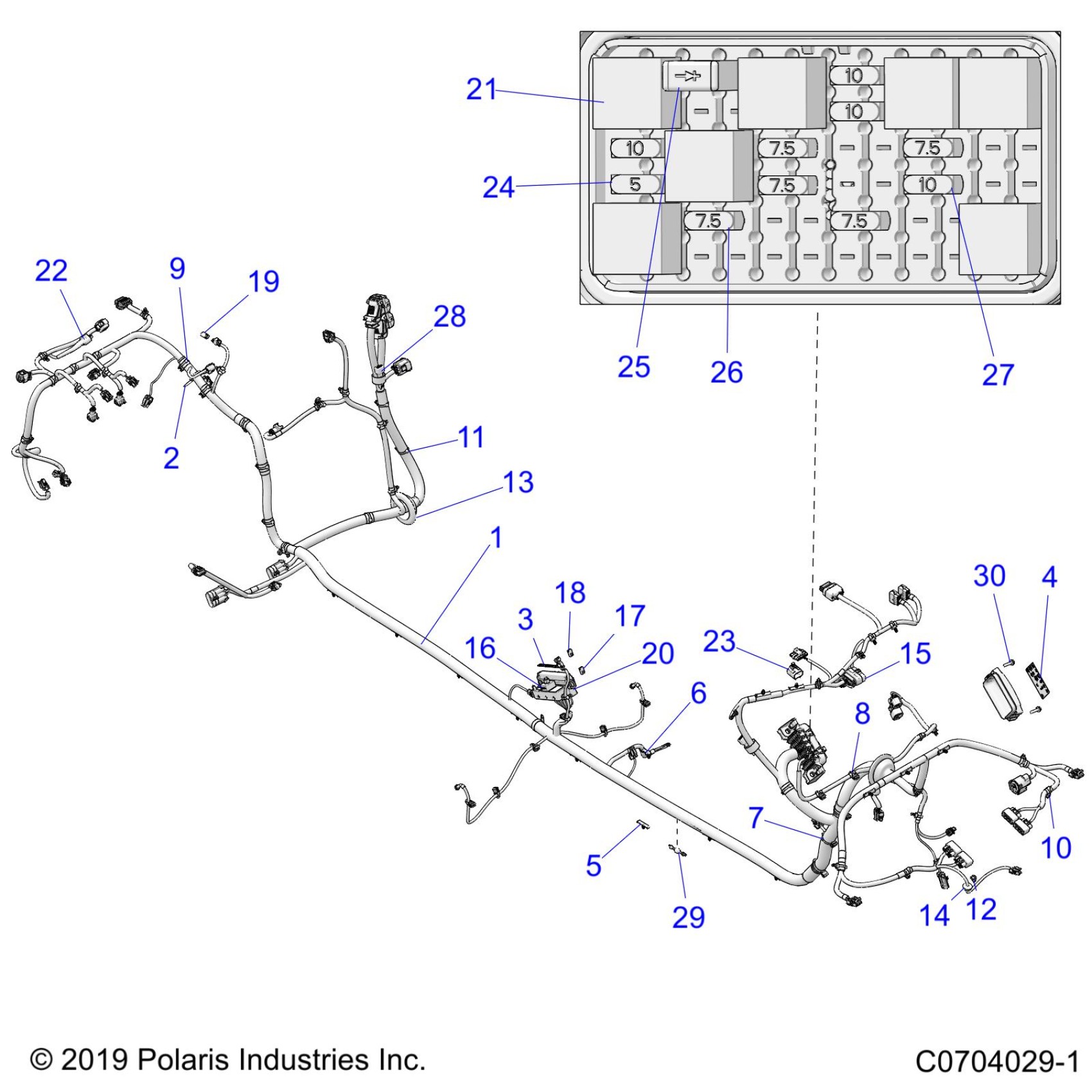

Polaris RZR PRO XP 4 - Z20R4_92AC/BC/AK/BK/AR/BR/LE/LT/LC/AH/BH/AT/BT ELECTRICAL, WIRE HARNESS, CHASSIS - Z20R4B92AC/BC/AK/BK/AR/BR/C92AC/BC/AE/BE/AR/BR/LE/LT/E92AH/BH/AT/BT (C0704029-1) Diagram

#

Description
Price

1

HARNESS-CHASSIS,RZR,T,RV,MP [INCL. 2-29]

2415219

$1,520.39

2

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

3

LABEL-PDM,RZR

7189870

Unavailable

4

LABEL-FUSE BOX

7189486

Unavailable

5

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.19

6

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.19

7

CLIP-EDGE,3-6MM THICKNESS

7082399

$5.27

8

CLIP-EDGE,HARNESS

7081890

$10.39

9

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.79

10

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

11

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

Unavailable

13

GROMMET-65MM,BLK

5813954

$7.19

14

GROMMET-SPEAKER,VOLUME

5413027

$2.39

15

CAP-EVAP CONNECTOR

4018655

$3.99

16

FUSE-ZCASE, 200A

-------

Unavailable

17

FUSE-MCASE,SLOTTED,40A

-------

Unavailable

18

FUSE-MCASE,SLOTTED,30A

-------

Unavailable

19

CAP-EVAP CONNECTOR

4018066

$3.99

20

FUSE-PDM

4017598

$57.19

21

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

22

BOOT-TMAP

4016101

$23.99

23

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

24

FUSE-5A,MINI BLADE

4011652

Unavailable

25

DIODE-6AMP

4011474

$40.46

26

FUSE-7.5,MINI BLADE (BROWN)

4011068

Unavailable

27

FUSE-IGNITION,10 AMP

2434016

$4.79

28

RESISTOR-EVAP PULLUP-1KOHM

2414716

$8.79

29

DIODE-6AMP,1/4,3/16 TERM

2411035

$51.99

30

SCR-HXFL-M6X1.0X25 8.8 RIE

7518576

$3.19
