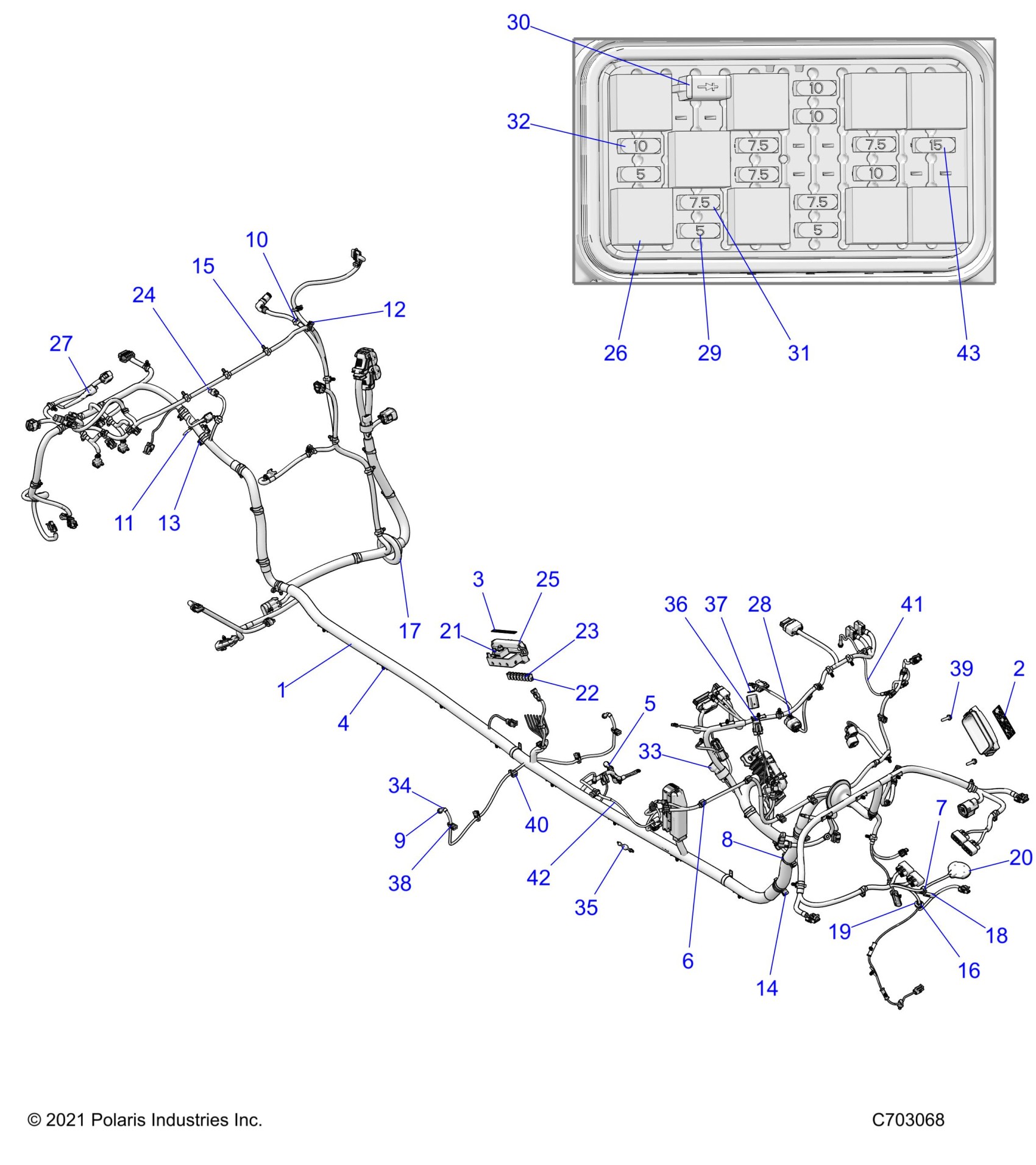

Polaris RZR PRO XP 4 ULTIMATE ROCKFORD FOSGATE LE (R01) - Z22M4U92AP/BP ELECTRICAL, WIRE HARNESS, CHASSIS - Z22M4U92AP/BP (C703068) Diagram

#

Description
Price

1

HARN-CHASSIS,RZR,T,RV MP,DX,LE [INCL. 2-26, 28-43]

2416291

$1,614.79

2

LABEL-FUSE BOX

7197253

Unavailable

3

LABEL-PDM,RZR

7189870

Unavailable

4

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.19

5

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.19

6

CLIP-EDGE, 1-3mm THICKNESS

7082403

$4.79

7

CLIP-EDGE, 1-3mm THICKNESS

7082402

$7.19

8

CLIP-EDGE,3-6MM THICKNESS

7082399

$5.27

9

CLIP - ROUTING, DIN BOX

7082020

$5.59

10

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.19

11

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

Unavailable

12

CLIP, EDGE, HARNESS

7081890

$10.39

13

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.79

14

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

15

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

16

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

Unavailable

17

GROMMET - 65 MM, BLK

5813954

$7.19

18

CAP - VINYL, 125X375, BLACK

5438230

$5.59

19

GROMMET, SPEAKER, VOLUME

5413027

$2.39

20

ANTENNA,GPS,EXT

4018662

$111.99

21

FUSE-ZCASE, 200A

4018415-200

$37.39

22

FUSE-MCASE,40A

4018414-40

$5.59

23

FUSE-MCASE,SLOTTED,30A

4018414-30

$7.19

24

CAP EVAP CONNECTOR

4018066

$3.99

25

FUSE-PDM

4017598

$57.19

26

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

27

HARN-TMAP,505MM

2416468

$39.99

28

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

29

FUSE-5A,MINI BLADE

4011652

Unavailable

30

DIODE-6AMP

4011474

$40.46

31

FUSE - 7.5, MINI BLADE (BROWN)

4011068

Unavailable

32

FUSE-IGNITION,10 AMP

2434016

$4.79

33

RESISTOR - EVAP PULLUP - 1 KOHM

2414716

$8.79

34

LED - PANEL MNT, 12V, BLUE

2413217

$51.99

35

DIODE - 6 AMP, 1/4, 3/16 TERM

2411035

$51.99

36

FUSE-ATC 30 AMP

4017557

$35.99

37

LABEL-AMP

7193569

Unavailable

38

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.79

39

SCR-HXFL-M6X1.0X25 8.8 RIE

7518533

$1.49

40

CLIP-EDGE,1-3MM THICKNESS

7082401

$7.91

41

LED-PANEL MNT,12V,BLUE,LE,LH

2416169

$51.99

42

LED-PANEL MNT,12V,BLUE,LE,RH

2416170

$59.99

43

FUSE-15AMP,MINI BLADE

4010859

$7.19
