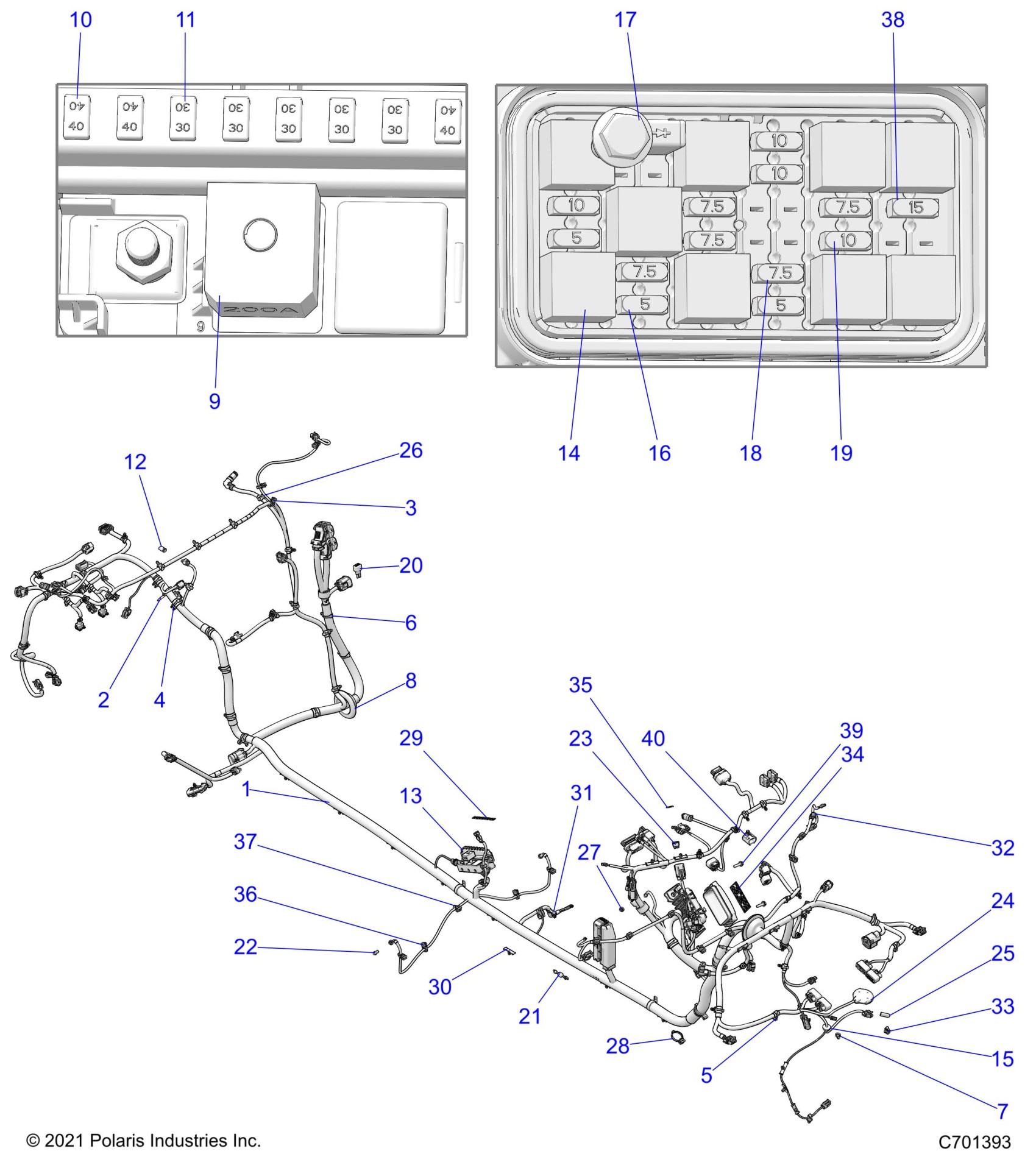

Polaris RZR PRO XP 4 ULTIMATE (R03) - Z22R4D92AB/AK ELECTRICAL, WIRE HARNESS, CHASSIS - Z22R4D92AB/AK (C701393) Diagram

#

Description
Price

1

HARN-CHASSIS,RZR,T,RV MP,DX [INCL. 2-38,40]

2416290

$2,699.99

2

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.84

3

CLIP, EDGE, HARNESS

7081890

$10.32

4

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.94

5

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.65

6

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

7

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

8

GROMMET - 65 MM, BLK

5813954

$8.99

9

FUSE-ZCASE, 200A

4018415-200

Unavailable

10

FUSE-MCASE,40A

4018414-40

$6.46

11

FUSE-MCASE,SLOTTED,30A

4018414-30

$8.08

12

CAP EVAP CONNECTOR

4018066

$4.03

13

FUSE-PDM

4017598

$69.99

14

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$36.41

15

GROMMET, SPEAKER, VOLUME

5413027

$2.38

16

FUSE-5A,MINI BLADE

4011652

$11.32

17

DIODE-6AMP

4011474

$44.51

18

FUSE - 7.5, MINI BLADE (BROWN)

4011068

$11.32

19

FUSE-IGNITION,10 AMP

2434016

$5.65

20

RESISTOR - EVAP PULLUP - 1 KOHM

2414716

$9.70

21

DIODE - 6 AMP, 1/4, 3/16 TERM

2411035

$56.65

22

LED - PANEL MNT, 12V, BLUE

2413217

$52.60

23

FUSE-ATC 30 AMP

4017557

$49.99

24

ANTENNA,GPS,EXT

4018662

$139.99

25

CAP - VINYL, 125X375, BLACK

5438230

$5.65

26

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.22

27

CLIP - ROUTING, DIN BOX

7082020

$5.56

28

CLIP-EDGE,3-6MM THICKNESS

7082399

$6.99

29

LABEL-PDM,RZR

7189870

Unavailable

30

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.17

31

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.17

32

CLIP-EDGE, 1-3mm THICKNESS

7082403

$4.76

33

CLIP-EDGE, 1-3mm THICKNESS

7082402

$7.14

34

LABEL-FUSE BOX

7197253

Unavailable

35

LABEL-AMP

7193569

Unavailable

36

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.76

37

CLIP-EDGE,1-3MM THICKNESS

7082401

$8.99

38

FUSE-15AMP,MINI BLADE

4010859

$8.08

39

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.17

40

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.89
