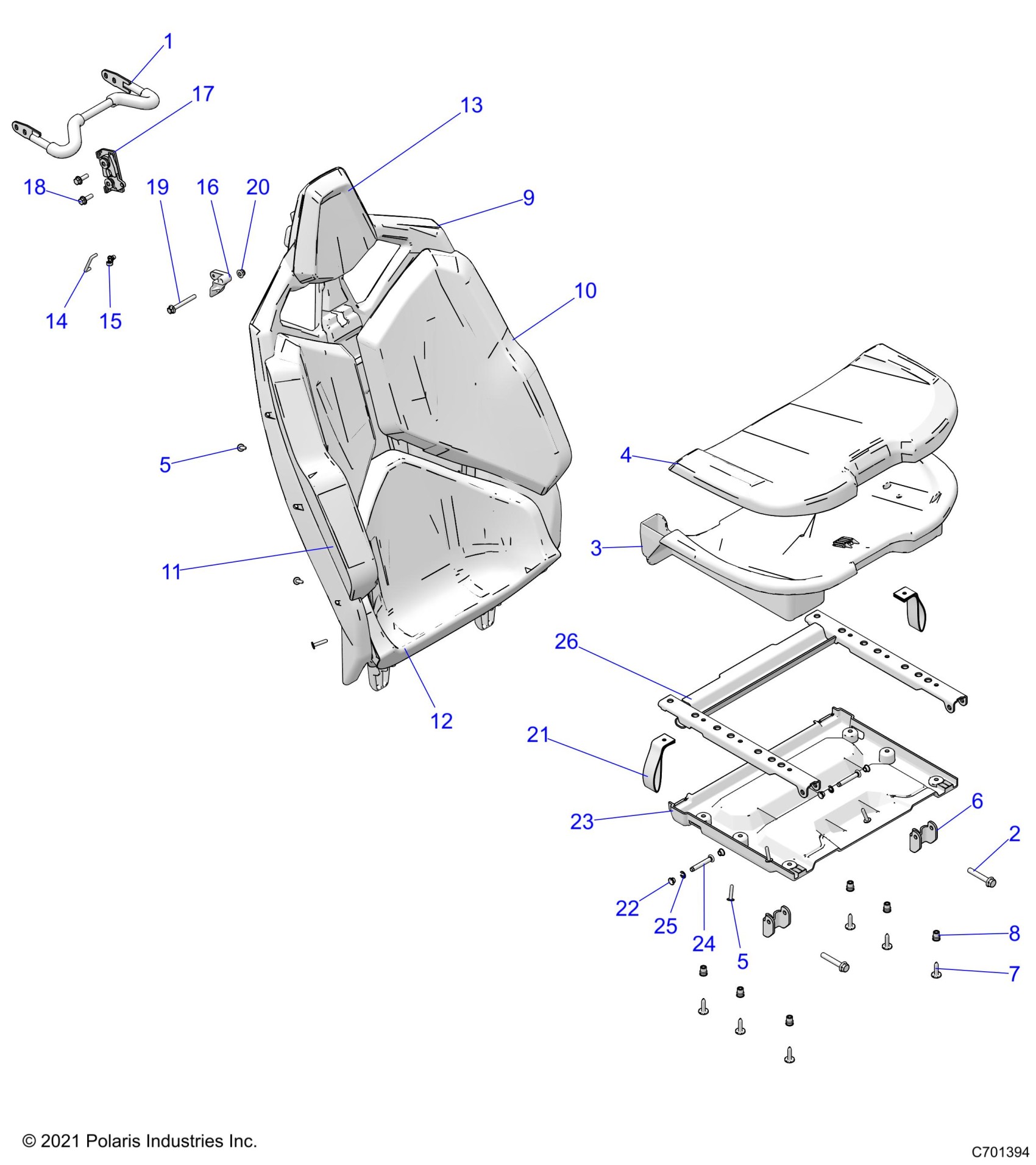

Polaris RZR PRO XP 4 ULTIMATE (R03) - Z22R4D92AB/AK BODY, SEAT ASM. REAR - Z22R4D92AB/AK (C701394) Diagram

#

Description
Price

1

ASM-REAR SEAT STRIKER

2638068

$60.70

2

SCR-M8X1.25X50 HX/FL-Y

7517793

$5.56

3

ASM-SEAT,BOTTOM,BLK,ORANGE ST [INCL. 3-5][AB]

2692098

$244.99

3

ASM-SEAT,BOTTOM,BLK,BLUE ST [INCL. 3-5][AK]

2692113

$244.99

4

ASM-BOTTOM,BLK,ORANGE ST [AB]

2692099

$119.99

4

ASM-BOTTOM,BLK,BLUE ST [AK]

2692114

$119.99

5

RVT-3/16(.187-.375)AL-AL/BULBX

7621479

Unavailable

5

RVT-3/16(.187-.375)AL-AL/BULBX

7621479

Unavailable

6

BRKT-SEAT FRAME,HINGE,REAR

5267628

$10.51

7

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

8

NUT-RIVNUT,M6X1.00

7547789

$3.17

9

ASM-SEAT,BACK,BLK,ORANGE ST [INCL. 5, 9-13]

2692097

$354.99

10

ASM-BOLSTER,LH,BLK,ORANGE ST

2692089

$72.84

11

ASM-BOLSTER,RH,BLK,ORANGE ST

2692090

$68.79

12

ASM-LOW BACK,BLK,ORANGE ST [AB]

2692100

$111.33

12

ASM-LOW BACK,BLK,BLUE ST [AK]

2692115

$111.33

13

ASM-HEADREST,BLK

2691819

$67.76

14

ROD-REAR SEAT,LATCH

5341855

$8.08

15

CLIP-DOOR LATCH

5454637

$4.99

16

HANDLE-LATCH,REAR SEAT,BLK

5456202-070

$7.99

17

ASM-LATCH,RTRY,2 STAGE,LH

7082459

$52.60

18

SCREW-HXFL-M6X1.0X20 8.8 ZOD NYL

7518613

$3.97

19

SCR-HXFL-M6X1.0X55 8.8 ZOD

7519171

$5.56

20

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.97

21

STRAP-SEAT �

2689264

$7.27

22

BUSHING-DOOR PIVOT �

5266311

$3.17

23

PANEL-UNDERSEAT,REAR,FLIP �

5456052

$44.51

24

PIN-DOOR HINGE �

7662356

$5.69

25

E-CLIP,M6, DIN 6799 �

7710466

$3.17

26

WELD-SEAT FRAME,REAR,FLIP,BLK �

1024845-458

$87.13
