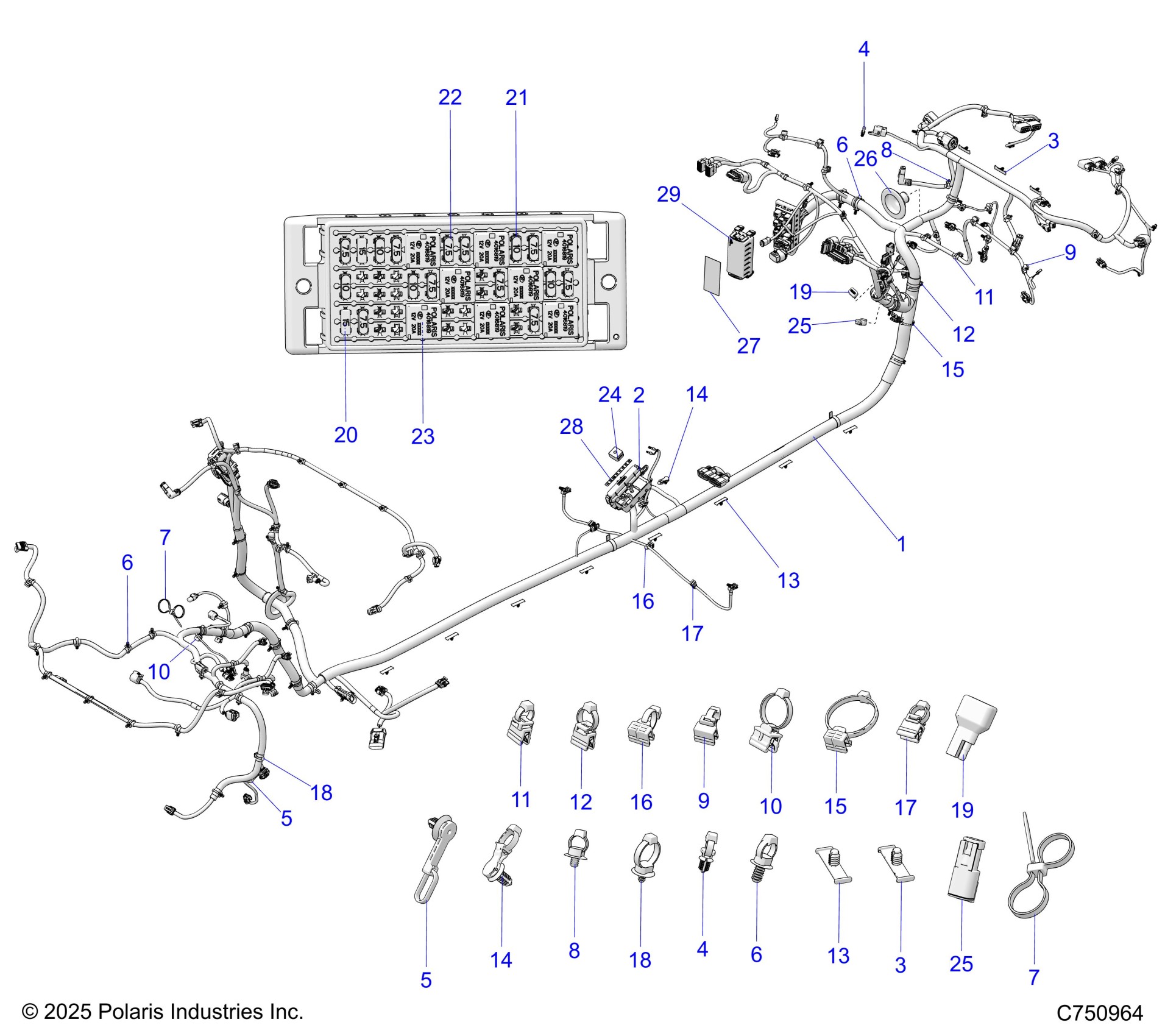

Polaris RZR PRO XP 4 ULTIMATE (R02) - Z26X4D92AH/BH/AN/BN ELECTRICAL, WIRE HARNESS, CHASSIS - Z26X4D92AH/BH/AN/BN (C750964) Diagram

#

Description
Price

1

HARN-CHASSIS,RZR,T,64,MP,ULT [INCLUDES ALL]

2417236

Unavailable

2

FUSE-PDM

4017598

$57.19

3

CLIP-FIR,HOLE6.35MM

7082134

$3.99

3

CLIP-FIR,HOLE6.35MM

7082134

$3.99

4

CLIP-ROUTING

7082522

$3.99

4

CLIP-ROUTING

7082522

$3.99

5

CLIP-OFFSET,FT6 FIR TREE

7082405

$3.99

5

CLIP-OFFSET,FT6 FIR TREE

7082405

$3.99

6

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

6

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

6

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

7

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

7

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

8

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.19

8

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.19

9

CLIP-EDGE, 1-3mm THICKNESS

7082403

$4.79

9

CLIP-EDGE, 1-3mm THICKNESS

7082403

$4.79

10

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.79

10

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.79

11

CLIP, EDGE, HARNESS

7081890

$10.39

11

CLIP, EDGE, HARNESS

7081890

$10.39

12

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

12

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

13

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.19

13

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.19

14

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.19

14

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.19

15

CLIP-EDGE,3-6MM THICKNESS

7082399

$5.27

15

CLIP-EDGE,3-6MM THICKNESS

7082399

$5.27

16

CLIP-EDGE,1-3MM THICKNESS

7082401

$7.91

16

CLIP-EDGE,1-3MM THICKNESS

7082401

$7.91

17

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.79

17

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.79

18

CLIP-DUCT,OUTLET

7082264

$7.99

18

CLIP-DUCT,OUTLET

7082264

$7.99

19

RESISTOR - EVAP PULLUP - 1 KOHM

2414716

$8.79

19

RESISTOR - EVAP PULLUP - 1 KOHM

2414716

$8.79

20

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

21

FUSE-IGNITION,10 AMP

2434016

$4.79

22

FUSE - 7.5, MINI BLADE (BROWN)

4011068

Unavailable

23

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

24

FUSE-ZCASE, 200A

4018415-200

$37.39

25

DIODE-2 AMP

2415626

$14.39

25

DIODE-2 AMP

2415626

$14.39

26

GROMMET - 65 MM, BLK

5813954

$7.19

27

LABEL-FUSEBOX,PROXP

7199862

Unavailable

28

LABEL-PDM, PROXP

7199863

Unavailable

29

COVER-PDM,84P,VENTED,BLUECPA

4083983

Unavailable
