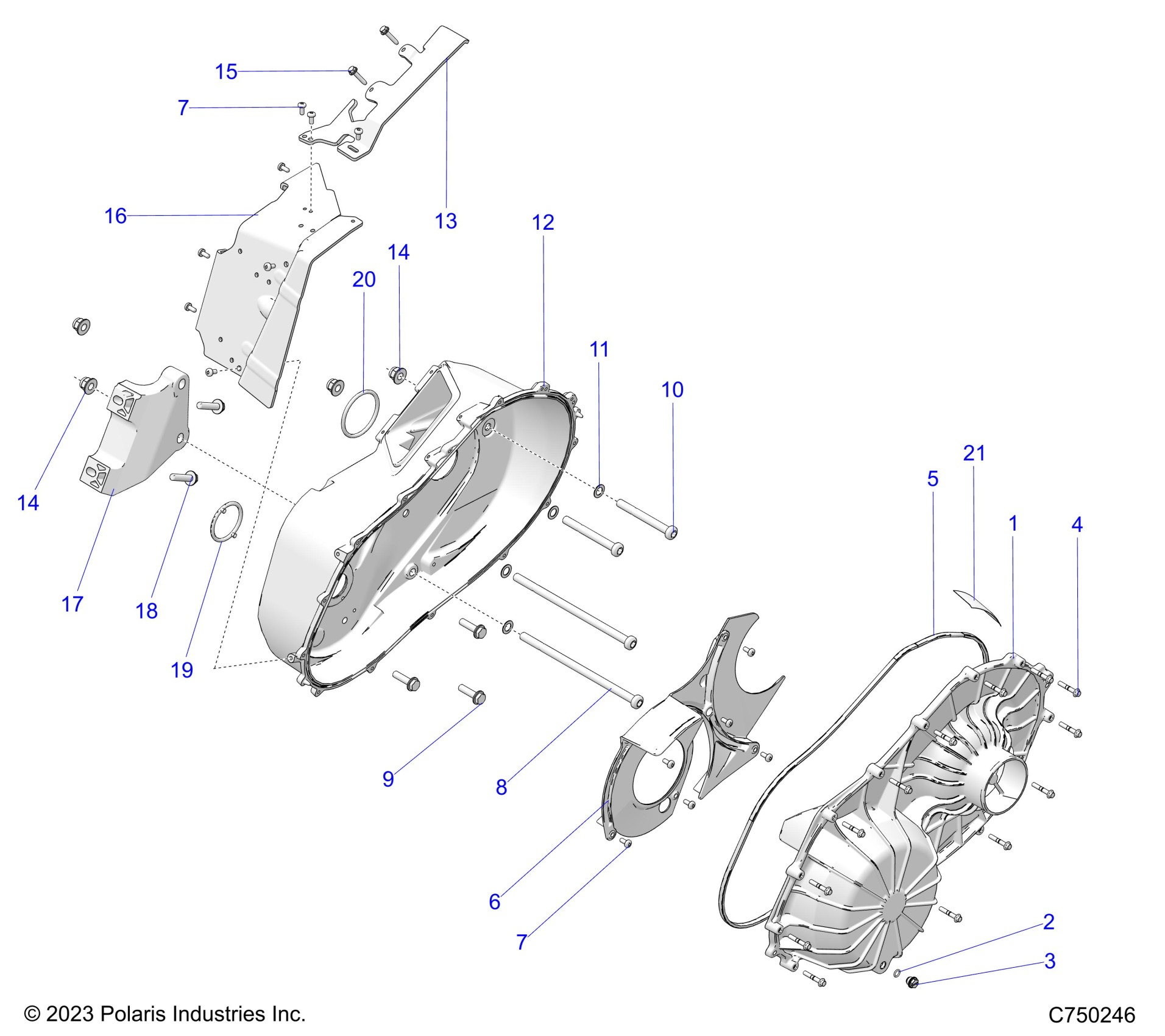

Polaris RZR PRO XP 4 ULTIMATE (R02) - Z25X4D92AA/AL/AP/BA/BL/BP DRIVE TRAIN, CLUTCH COVER, INNER/OUTER - Z25X4D92A/92B (C750246) Diagram

ASM-COVER,CLUTCH,OUTER [INCL. 2-4]

2637740

$171.99

O RING-.364X.504X.07

5410542

Unavailable

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

SCR-HXFL-M6X2.0X38 SPC

7521195

$11.43

SEAL-CLTCH CVR,SILICONE FOAM

5526344

$34.99

BAFFLE-INNER COVER

5457973

$31.99

SCREW-M6X1X14,PN/TX,TRI-LOB

7518914

$3.19

SCREW-M6X1X14,PN/TX,TRI-LOB

7518914

$3.19

SCR-TXBH-M12X1.75X245 8.8 SPC

7520946

$13.59

SCR-HHSEMS-M10X1.5X40 10.9 SPC

7521294

$5.59

SCR-TXBH-M12X1.75X110 8.8 SPC

7520945

$7.99

WASHER-.510X.840X.031 Y

7555919

$4.99

COVER-CLUTCH,INNER,MACH

5144959

$231.99

WELD-CONTAINMENT,SHIELD

1028017

$79.99

NUT-HXFL M12X1.75 8 ZOD NYL

7547441

$4.79

NUT-HXFL M12X1.75 8 ZOD NYL

7547441

$4.79

BOLT-HXFL-M6X1.0X30 RIE TAPR

7519344

$3.99

BRKT-GUARD,CLUTCH COVER

5273401

$67.99

BRKT-TRANSJOINT,MAG,MACH

5144809

$47.99

SCR-HXFL-M10X1.5X1.5 8.8 ZY3

7518531

$4.79

O-RING-2.25X2.625X.21,NBR,BARB

5417662

$8.79

O-RING-0.489X0.629X0.070,EPDM

5415647

$1.59

DECAL-BELT,WARNING/CHECK

7177469

Unavailable
