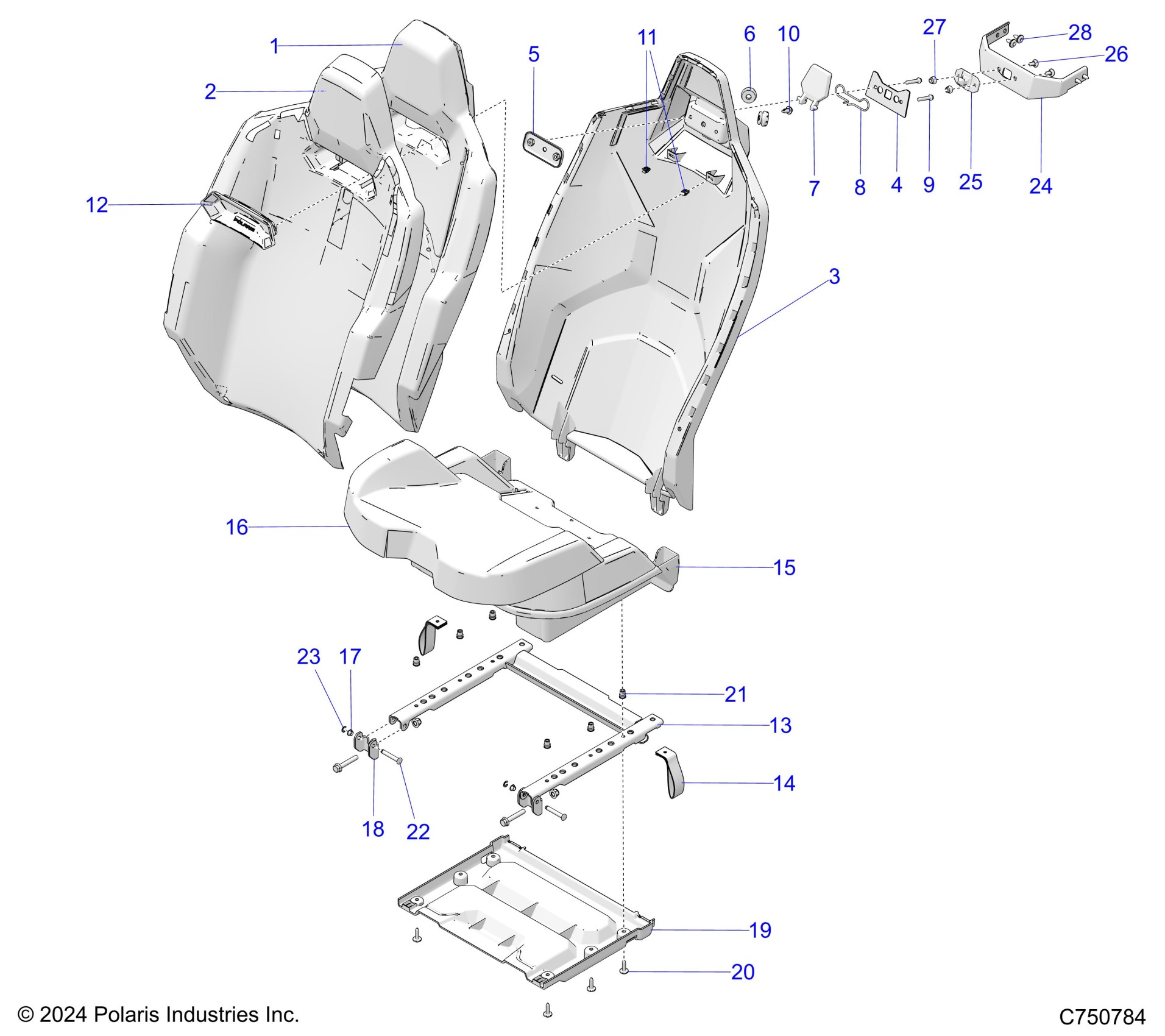

Polaris RZR PRO XP 4 ULTIMATE (R02) - Z25X4D92AA/AL/AP/BA/BL/BP BODY, SEAT ASM, & MOUNTING, REAR - Z25X4D92A/92B (C750784) Diagram

ASM-SEAT,BUN,BACK

2639642

$31.99

ASM-COVER-SEAT,BACK,TITANIUM [AA/BA] [AL/BL]

2693194

$123.99

ASM-COVER-SEAT,BACK,LIFTED LIM [AP/BP]

2693192

$123.99

SEAT-SHELL,BACK

5465065

$114.39

COVER-LATCH,SEAT,MP,ECOAT

5273996-329

$43.99

BRKT-SUPPORT,SEAT

5274060

$8.79

GROMMET-LATCH

5413428

$3.19

LATCH-HANDLE

5465066

$4.79

SPRING, LATCH, SEAT

7081466

$39.99

SCR-HXFL-M6X1.0X35 8.8 ZY3

7518578

$3.99

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

CLIP-TRIM, PLASTIC, WHITE

5456313

$1.59

BEZEL-SEAT COVER,BLACK

5465755-070

$19.99

WELD-SEAT FRAME,REAR,FLIP,BLK

1024845-458

$67.99

STRAP-SEAT

2689264

$7.19

ASM-SEAT,BUN,BOTTOM

2639643

$31.99

ASM-COVER-SEAT,BTM,TITANIUM [AA/BA] [AL/BL]

2693202

$107.99

ASM-COVER-SEAT,BTM,LIFTED LIME [AP/BP]

2693200

$107.99

BUSHING-DOOR PIVOT

5266311

$3.19

PANEL-UNDERSEAT,REAR,FLIP [TO 9/5/2025]

5456052

$39.99

PANEL-UNDERSEAT,REAR,FLIP [FROM 9/5/2025]

5467185

Unavailable

BRKT-SEAT FRAME,HINGE,REAR

5267628

$10.39

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

NUT-RIVNUT,M6X1.00

7547789

$3.19

PIN-DOOR HINGE

7662356

$5.27

E-CLIP,M6, DIN 6799

7710466

$3.19

BRKT-LATCH,SEAT,MP,BLK

5273997-458

$27.99

LATCH-DOWEL

5466348

$3.99

SCR-CARRIAGE,M6X16

7520194

$3.99

NUT-M6,HX/FL,NYLOC ZPB

7547475

$7.91

SCR-M6X1X16 TR/TX-M

7518936

$3.99
