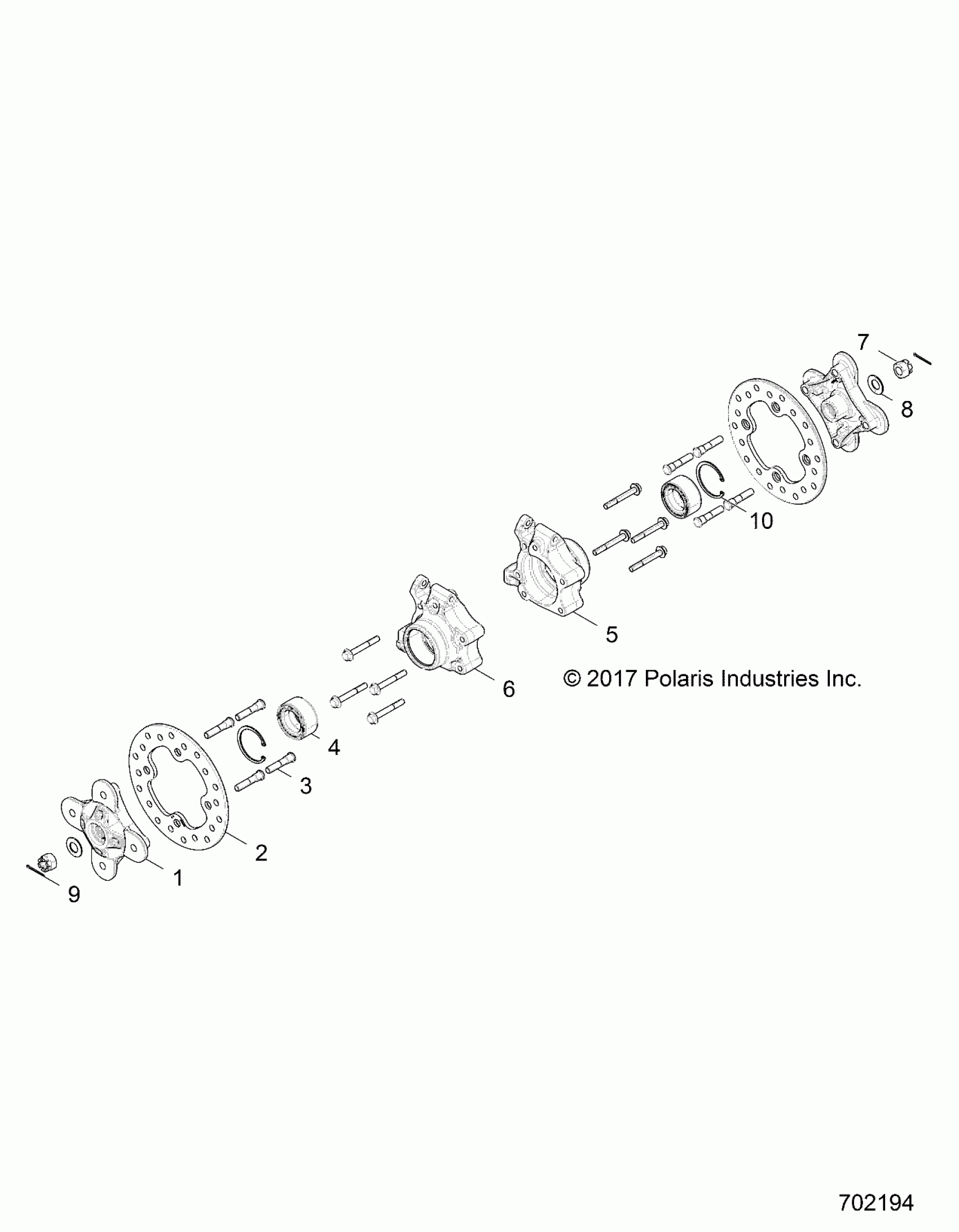

Polaris RZR PRO XP 4 ULTIMATE (R01) - Z23R4D92AK/AS/BK/BS SUSPENSION, REAR CARRIER AND HUB - Z23R4D92AK/AS/BK/BS (702194) Diagram

HUB-WHEEL(MACH),28T

5143641

$86.79

ROTOR-BRAKE,7.5MM,SS410DB,HO

5262840

$87.99

STUD-WHEEL,M12-1.5

7519792

$5.59

BEARING-BALL,SEALED,44X72X33.1

3514924

$39.99

BEARING-WHEEL,HD,44X72X33.1MM [OPTIONAL]

3515090

$63.99

CARRIER-BEARING,WHEEL,LH(MACH)

5144780

$67.99

CARRIER-BEARING,WHEEL,RH(MACH)

5144781

$67.99

NUT-CASTLE-M20X1.5 ZC

7548004

Unavailable

WSHR-LOAD,21X45,5-5.6

7557146

$5.59

PIN-COTTER 1/8X1 1/2-Y

7661404

$4.79

RING-RETAINING,2.835,INTERNAL

7710780

$9.59
