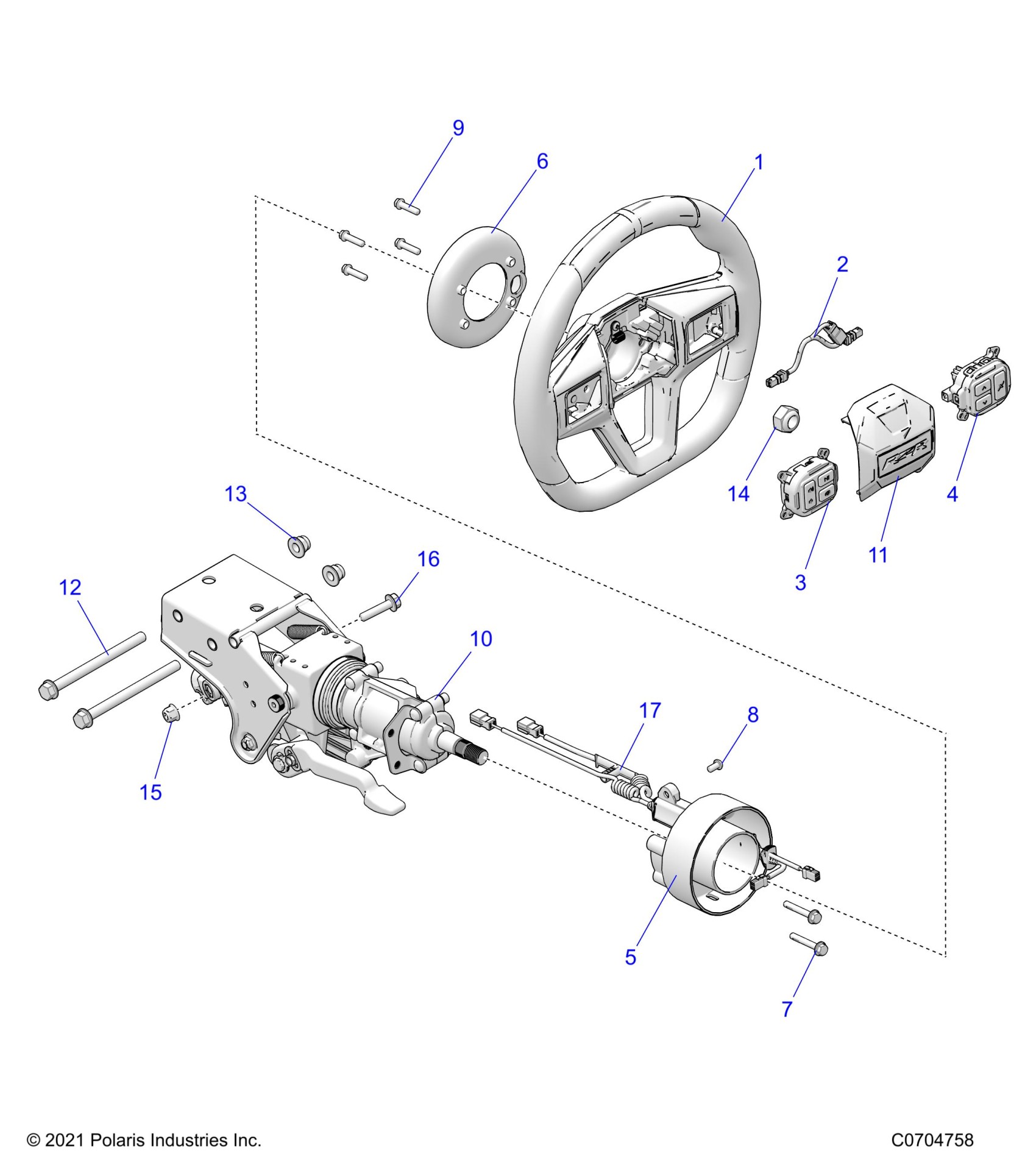

Polaris RZR PRO XP 4 ULTIMATE (R01) - Z23R4D92AK/AS/BK/BS STEERING, UPPER, PREMIUM/ULTIMATE - Z23R4D92AK/AS/BK/BS (C0704758) Diagram

WHEEL-STEERING,13"

1824823

$426.79

HARNESS-STEERING WHEEL

2414689

$83.99

SWITCH-MODULE,STEER WHEEL,LH [TO 1/9/2023]

4019322

Unavailable

SWITCH-ASSY,SWC,250K,LH [FROM 1/9/2023]

4081086

$224.39

SWITCH-MODULE,STEER WHEEL,RH [TO 1/9/2023]

4019325

Unavailable

SWITCH-ASSY,SWC,250K,RH [FROM 1/9/2023]

4081087

$241.99

ASM-COIL,CORD,DRUM [INCL. 5,17]

2414807

$179.73

GUIDE-COLUMN HARNESS

5455733

$35.99

COVER-COLUMN HARNESS

5455734

$8.79

BOLT-M6X1.0X40 HXHD,FLG,W/PATC

7518470

$1.49

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

SCREW-HXFLG,M6X1.0X25,10.9

7519297

$3.99

ASM-TILT/TELE,STEERING

1830008

$523.59

CAP-STEERING WHEEL,BASE,BLK

5456146-070

$23.99

BOLT-M10X1.25X130,HXFLG-OLIVED

7518665

$13.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

NUT-HEX-M16X2, 8 ZC NYL

7547506

$4.39

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

SCREW-HXFL-M8X1.25X35 10.9 ZFL

7520985

$6.15

CLIP-WELD STUD,5MM,TAPE-ON

7082493

$3.19
