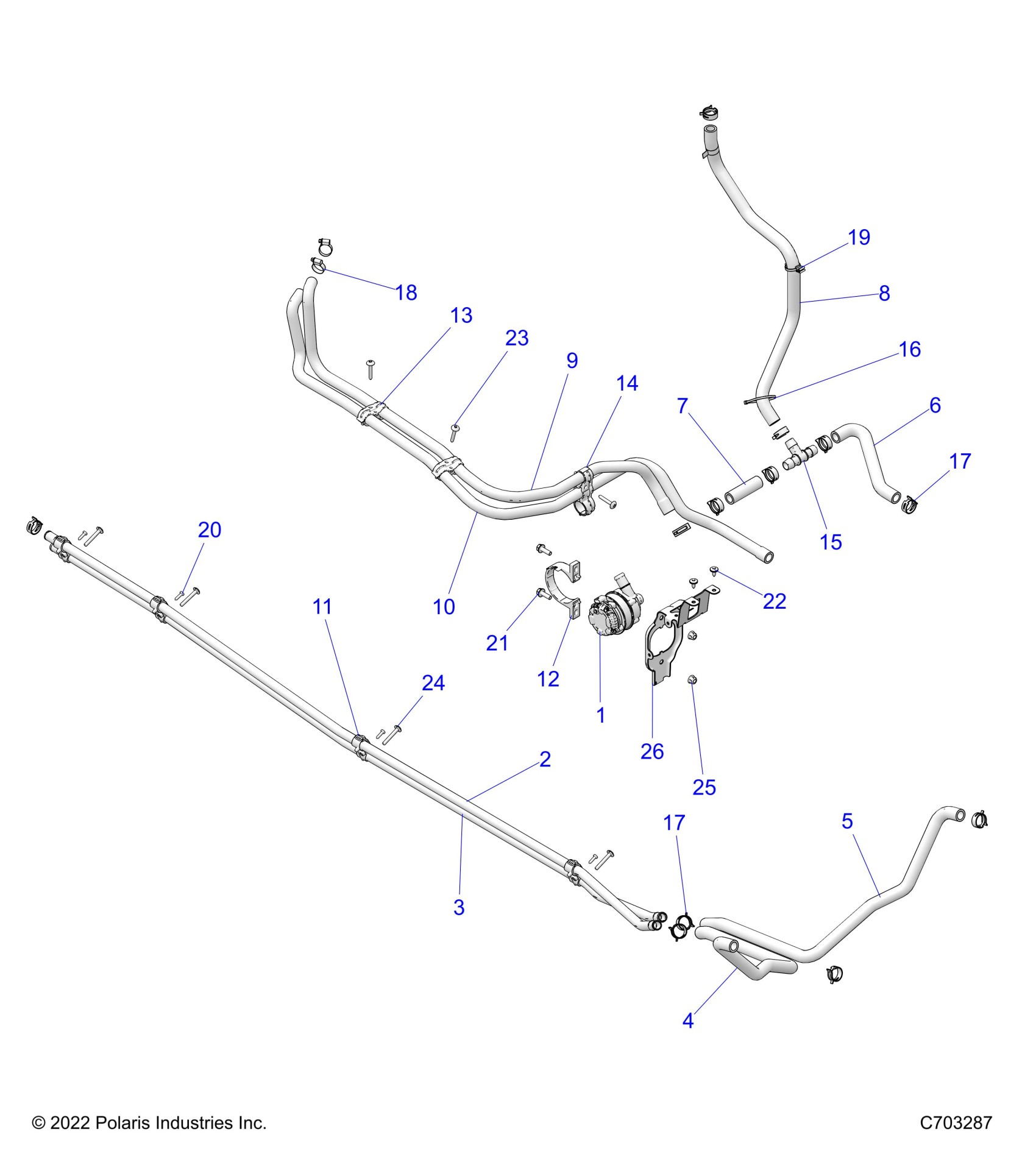

Polaris RZR PRO XP 4 ULTIMATE (R01) - Z23R4D92AK/AS/BK/BS ENGINE, COOLING ROUTING MANIFOLD - Z23R4D92AK/AS/BK/BS (C703287) Diagram

#

Description
Price

1

ASM-PUMP,WATER,ELECTRIC

2413045

$404.79

2

TUBE-COOLANT,LT UPPER,MP

5142062

$51.99

3

TUBE-COOLANT,LT LOWER,MP

5143371

$63.99

4

HOSE-RADIATOR,LT,IN

5416574

$35.99

5

HOSE-RADIATOR,LT,OUT

5416575

$43.99

6

HOSE-PUMP,IN,TUBE/T

5416576

$14.39

7

HOSE-PUMP,IN,T/PUMP

5416577

$8.79

8

HOSE-PUMP,SURGE/T

5416578

$43.99

9

HOSE-PUMP TO LCAC

5417197

$55.99

10

HOSE-LCAC,OUT

5417198

$63.99

11

BRACKET-COOLANT TUBE,3/4"

5451785

$4.79

12

BRKT-MNT,WATER PUMP

5452166

$7.99

13

CLIP-ROUTING,0.75

5454911

$6.39

14

CLIP-ROUTING

5454912

$4.79

15

FITTING-.75 IN,T

7052727

$6.39

16

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

17

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

17

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

18

CLAMP-CONSTANT TENSION,16-27

7081415

$7.19

19

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

20

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

21

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59

22

SCR-M6X1X16 TR/TX-M

7518936

$3.99

23

SCR-TXTH-M6X1.0X50, 8.8, ZPB

7519001

$3.99

24

SCR-14X1.75 T40 TX HI/LO

7519840

$2.39

25

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

26

BRKT-WATER PUMP,MP,ECOAT

5267114-329

$39.99
