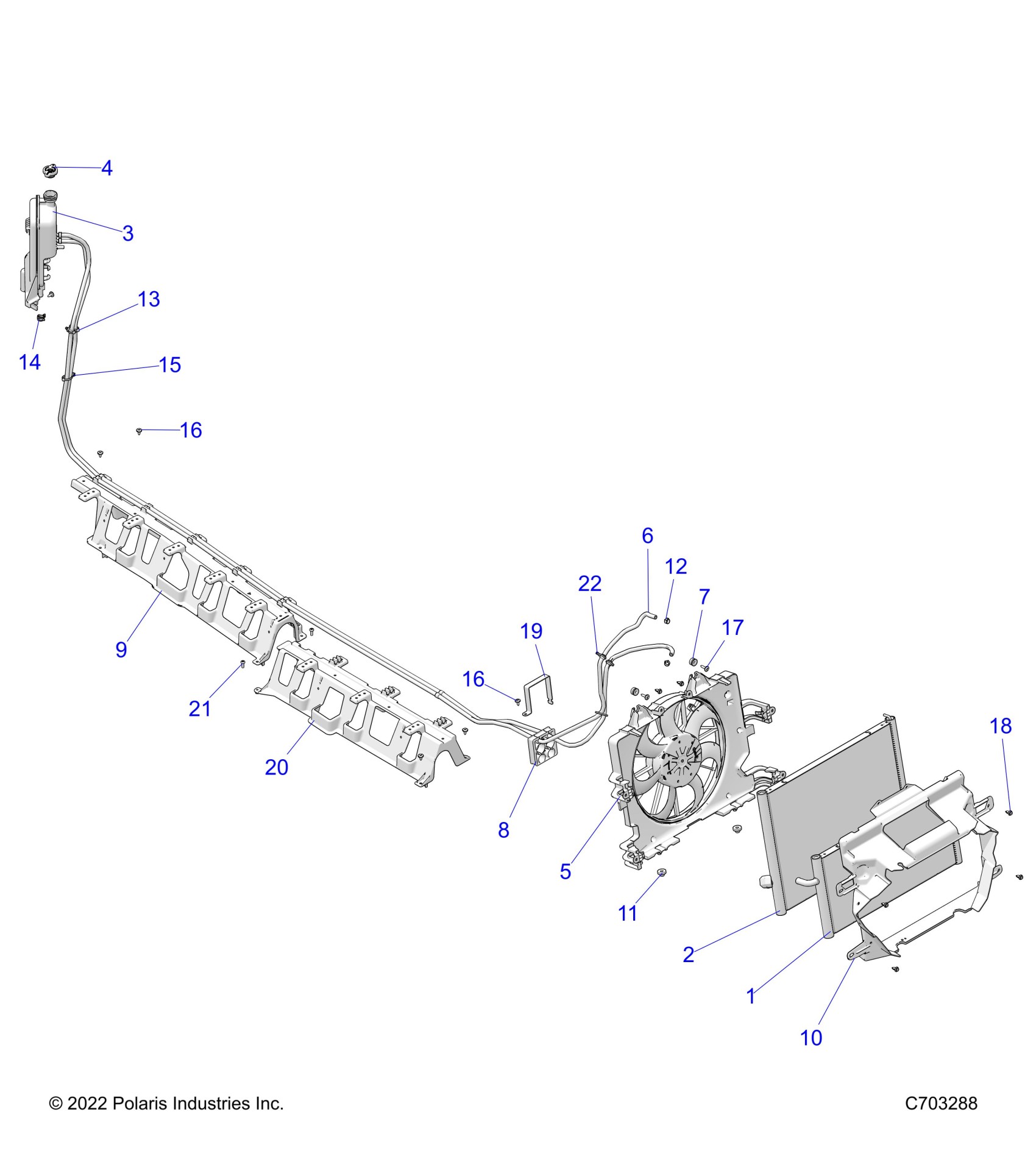

Polaris RZR PRO XP 4 ULTIMATE (R01) - Z23R4D92AK/AS/BK/BS ENGINE, COOLING, RADIATOR - Z23R4D92AK/AS/BK/BS (C703288) Diagram

#

Description
Price

1

ASM-RADIATOR,CORE,LT

1241241

$271.99

2

ASM-RADIATOR,CORE,HT

1241243

$327.99

3

WELD-SURGE TANK,DUAL [TO 9/1/2022]

1241374

Unavailable

3

WELD-SURGE TANK,DUAL [FROM 9/1/2022]

1244715

$79.99

4

CAP-PRESSURE

1241379

$35.99

5

FAN-ASSEMBLY

2414614

Unavailable

6

ASM-VENT LINE,COOLANT,MP

2522137

$11.99

7

ASM-GROMMET & INSERT

5416503

$3.99

8

GROMMET-ROUTING

5416806

$31.99

9

TRAY-ROUTING,MID,SUB CONSOLE

5454910

$91.99

10

SHROUD-RADIATOR

5458641

$51.99

11

GROMMET-FLANGED,.36X.56X1.06

7052028

$6.39

12

HOSE CLAMP, RED

7080003

$1.49

13

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

14

CLAMP, HOSE SPRING, 20MM

7081719

$5.59

15

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

16

SCR-M6X1X16 TR/TX-M

7518936

$3.99

16

SCR-M6X1X16 TR/TX-M

7518936

$3.99

17

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

18

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

19

STRAP-GROMMET,ROUTING,ECOAT

5266653-329

$30.79

20

TRAY-ROUTING,FRONT,MP

5457659

$55.99

21

SCR-TXPH-#14 X .75 HI-LO RIE

7519731

$3.99

22

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
