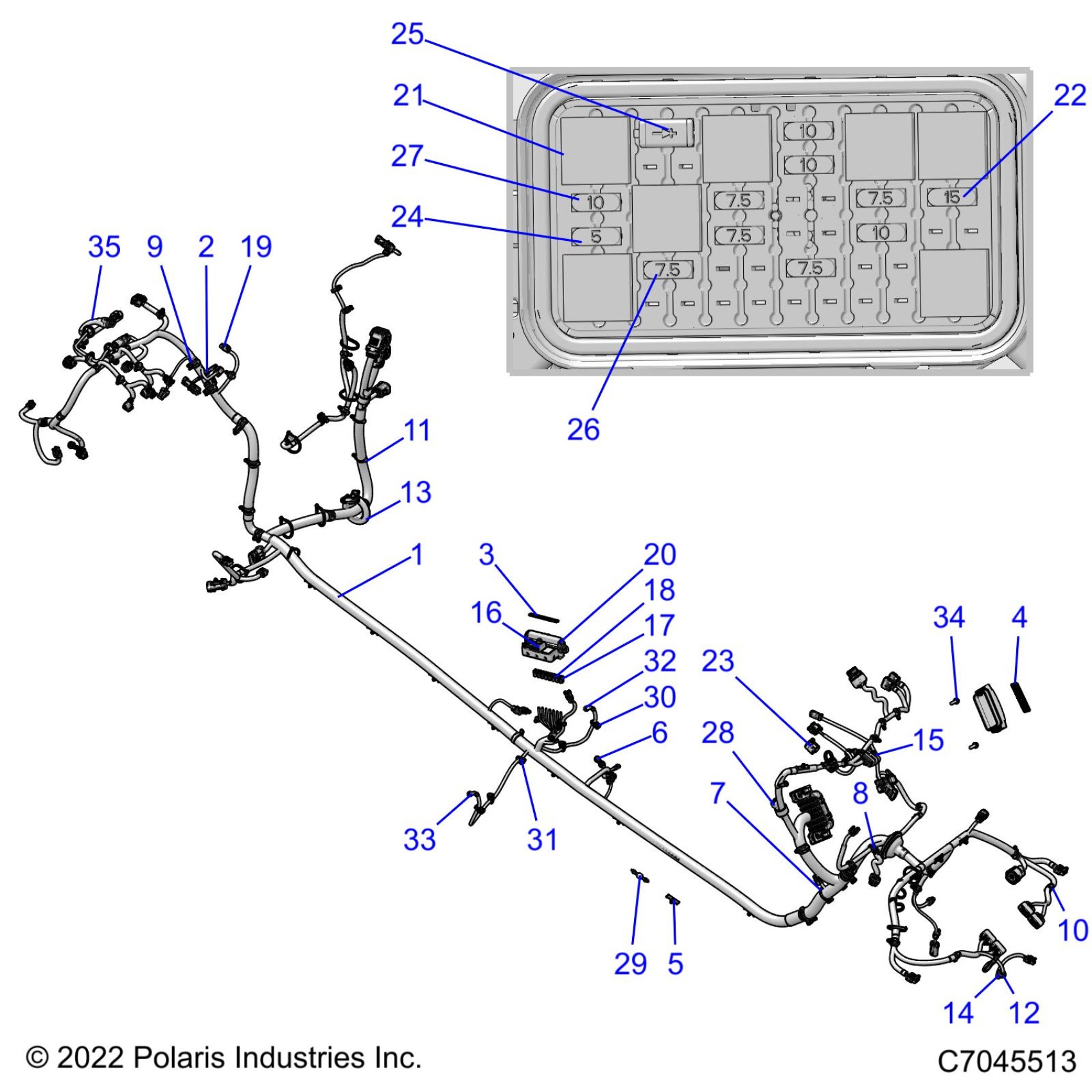

Polaris RZR PRO XP 4 SPORT (R03) - Z23R4E92AG/92BG ELECTRICAL, WIRE HARNESS, CHASSIS - Z23R4E92A/92B (C0705755) Diagram

#

Description
Price

1

HARN-CHASSIS,RZR,T,RV,MP [INCL. 2-33] [TO 01/09/2023]

2416289

Unavailable

1

HARN-CHASSIS,RZR,T,RV,MP [INCL. 2-33] [FROM 01/09/2023]

2416633

$1,513.59

2

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

Unavailable

3

LABEL-PDM,RZR

7189870

Unavailable

4

LABEL-FUSE BOX

7197253

Unavailable

5

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.19

6

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.19

7

CLIP-EDGE,3-6MM THICKNESS

7082399

$5.27

8

CLIP, EDGE, HARNESS

7081890

$10.39

9

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.79

10

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

11

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

Unavailable

13

GROMMET - 65 MM, BLK

5813954

$7.19

14

GROMMET, SPEAKER, VOLUME

5413027

$2.39

15

CAP-EVAP CONNECTOR

4018655

$3.99

16

FUSE-ZCASE, 200A

4018415-200

$37.39

17

FUSE-MCASE,40A

4018414-40

$5.59

18

FUSE-MCASE,SLOTTED,30A

4018414-30

$7.19

19

CAP EVAP CONNECTOR

4018066

$3.99

20

FUSE-PDM

4017598

$57.19

21

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

22

FUSE-15AMP,MINI BLADE

4010859

$7.19

23

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

24

FUSE-5A,MINI BLADE

4011652

Unavailable

25

DIODE-6AMP

4011474

$40.46

26

FUSE - 7.5, MINI BLADE (BROWN)

4011068

Unavailable

27

FUSE-IGNITION,10 AMP

2434016

$4.79

28

RESISTOR - EVAP PULLUP - 1 KOHM

2414716

$8.79

29

DIODE - 6 AMP, 1/4, 3/16 TERM

2411035

$51.99

30

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.79

31

CLIP-EDGE,1-3MM THICKNESS

7082401

$7.91

32

CLIP - ROUTING, DIN BOX

7082020

$5.59

33

LED - PANEL MNT, 12V, BLUE

2413217

$51.99

34

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

35

HARN-TMAP,505MM

2416468

$39.99
