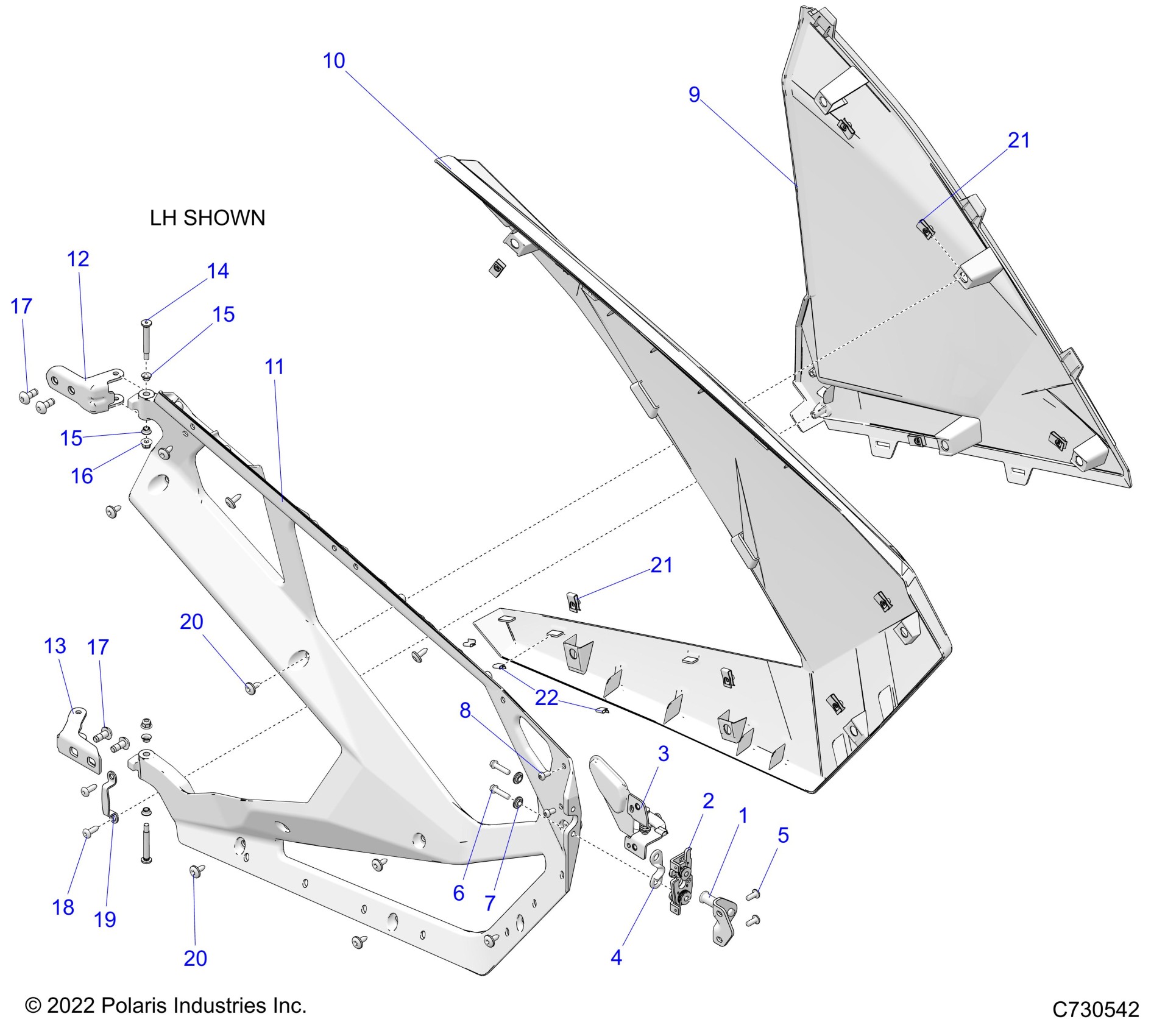

Polaris RZR PRO XP 4 SPORT (R03) - Z23R4E92AG/92BG BODY, DOORS, FRONT - Z23R4E92A/92B (C730542) Diagram

#

Description
Price

1

WELD-STRIKER

1026523

$15.83

2

ASM-LATCH,DOOR,LH [TO 10/05/2023]

2637039

$31.99

2

ASM-LATCH,DOOR,LH [FROM 10/05/2023]

2639731

$27.99

2

ASM-LATCH,DOOR,RH [TO 10/05/2023]

2637040

$31.99

2

ASM-LATCH,DOOR,RH [FROM 10/05/2023]

2639732

$27.99

3

ASM-ACTUATOR,LATCH,LH

2637402

$39.99

3

ASM-ACTUATOR,LATCH,RH

2637403

$39.99

4

BUMPER-DOOR

5417528

Unavailable

5

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

6

SCREW-HXFLG,M6X1.0X25,10.9

7519297

$3.99

7

SLEEVE-SHLD,15.5OD,10 OD,6.5ID

5140211

$3.99

8

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

9

PANEL-DOOR,FRT,PNT,LH,G.GREY

5456076-728

$327.99

9

PANEL-DOOR,FR,RR,PNT,RHG.GREY

5456077-728

$327.99

10

PANEL-DOOR,FRT,PNT,LH,G.GRY [GHOST GRAY]

5455960-728

$475.79

10

PANEL-DOOR,FRONT,LH,BLK [BLACK]

5455189-070

Unavailable

10

PANEL-DOOR,FRT,PAINT,RH,G.GRY [GHOST GRAY]

5455961-728

$475.79

10

PANEL-DOOR,FRONT,RH,BLK [BLACK]

5455190-070

Unavailable

11

CASTING-DOOR FRAME,LH,BLK

5634424-458

$327.99

11

CASTING-DOOR FRAME,RH,BLK

5634425-458

$291.99

12

BRKT-DOOR HINGE

5267526

$31.99

13

BRKT-DOOR HINGE,LOWER,MP

5267677

$11.99

14

SCR-TXWH-M6X1.0X54 10.9 ZTB SP

7527850

$3.19

15

BUSHING-DOOR PIVOT

5266311

$3.19

15

BUSHING-DOOR PIVOT

5266311

$3.19

16

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

17

SCR-TXTH-M8X1.25X20 8.8 ZB3 P3

7519997

$3.99

17

SCR-TXTH-M8X1.25X20 8.8 ZB3 P3

7519997

$3.99

18

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19

19

BRKT-TRIM,DOOR

5267829

$8.79

20

SCR-M6X1X16 TR/TX-M

7518936

Unavailable

20

SCR-M6X1X16 TR/TX-M

7518936

Unavailable

21

CLIP-U SPEED NUT

7081305

Unavailable

21

CLIP-U SPEED NUT

7081305

Unavailable

22

FASTENER-U TYPE CLIP

7670040

$3.99
