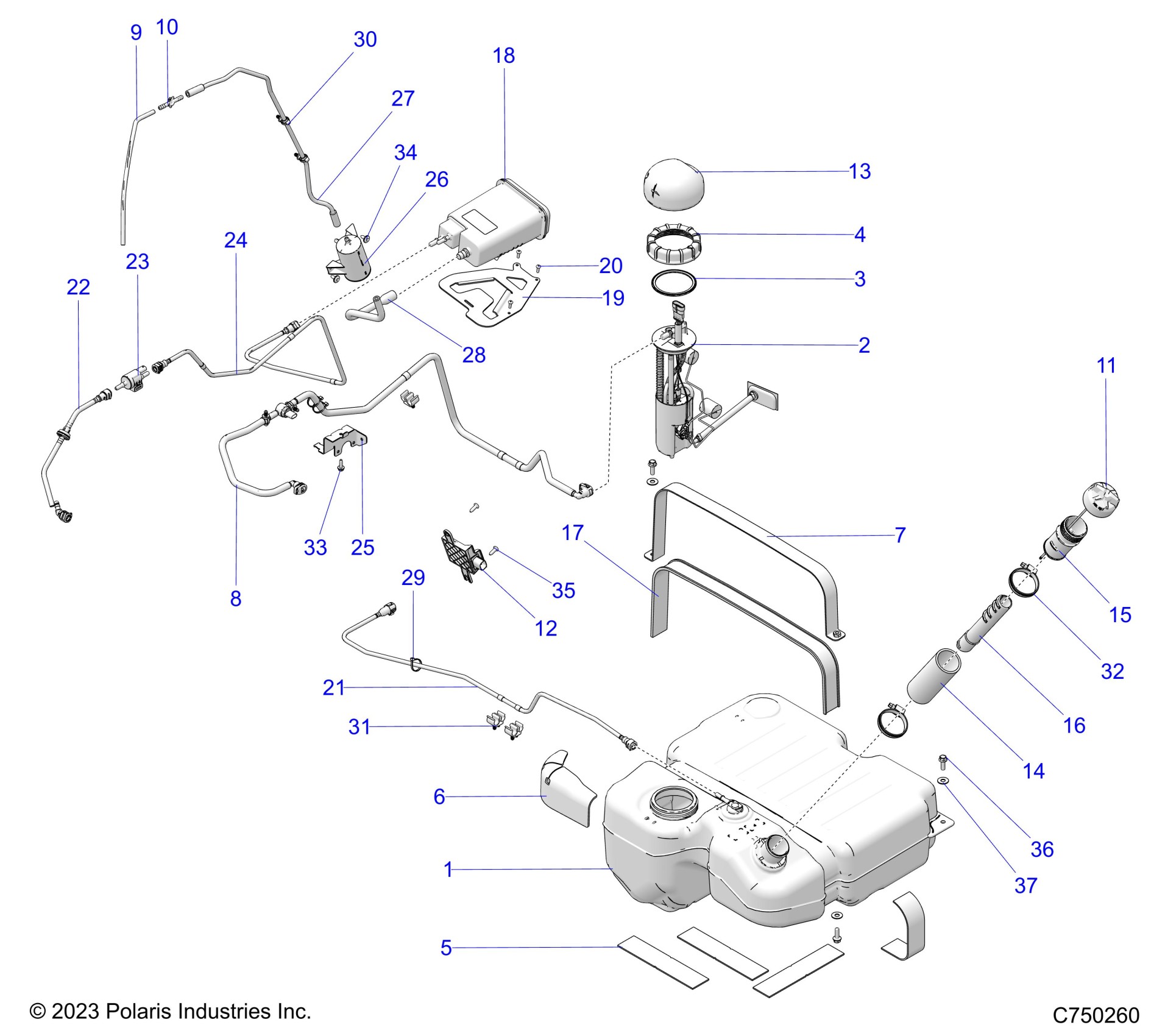

Polaris RZR PRO XP 4 SPORT (R02) - Z25X4E92A4/B4 FUEL SYSTEM, EVAP - Z25X4E92A4/B4 (C750260) Diagram

#

Description
Price

-

ASM-FUEL TANK,RZR,T,MP,RV [INCL 1-6]

2638045

$683.36

1

ASM-FUEL TANK,MP [INCL. 2-4]

2522691

$702.89

2

K-FUEL PUMP,MP [INCL. 3 & 4]

2211787

$444.39

3

GASKET-PFA,RIBBED

5413451

$11.99

4

NUT-MASON JAR

5437138

$35.99

5

PAD-TANK,MOUNT

5814781

Unavailable

6

SHIELD-FUEL TANK

5814906

$23.99

7

BRKT-STRAP,FUEL TANK,ECOAT

1027698-329

$27.99

8

ASM-FUEL LINE,SUPPLY

2522365

$195.99

9

ASM-LINE,VENT TERM [INCL. 10]

2522401

$31.99

10

FITTING-VENT LINE,35

5457446

$8.79

11

CAP-GAS TANK,TETHER

2522651

$31.99

12

ASM-FUEL PUMP,CONTROL,MODULE

2522698

$164.99

13

COVER-PFA,WALBRO

2522746

$15.99

14

HOSE, FUEL FILL

5414709

$55.99

15

NECK-FUEL FILL,OUTER

5455329

$23.36

16

TUBE-FUEL FILL,INNER

5466555

$13.59

17

PAD-STRAP,RUBBER

5522294

$23.99

18

CANISTER-ACTIVATED CARBON

2521786

$71.99

19

BRKT-MNT CANISTER,ECOAT

5266986-329

$43.99

20

RIVET-3/16-.090-.290

7661637

$1.49

21

ASM-LINE,TANK TO CANISTER

2522079

$51.99

22

ASM-LINE,PURGE TO TB

2521959

$55.99

23

VALVE-PURGE

2521964

$59.99

24

ASM-LINE,CANISTER TO PURGE

2522081

$51.99

25

BRKT-MNT PURGE VALVE,ECOAT

5268112-329

$26.39

26

FILTER-CANISTER VENT

2521750

$55.99

27

ASM-LINE,VENT TO CHASSIS

2521960

$51.99

28

HOSE-VENT TO CANISTER

8450210

$35.99

29

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

30

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

31

CLIP-DOUBLE

7082454

$5.59

32

CLAMP-HOSE,25-77 DIA,PLASTIC

7083059

$6.15

33

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

34

SCR-M6X1X16 TR/TX-M

7518936

$3.99

35

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19

36

SCR-HXFL-M8X1.25X25 8.8 ZODP30

7519243

$3.99

37

WASHER-.390X.940X.060,FL-Y

7555976

$3.99
