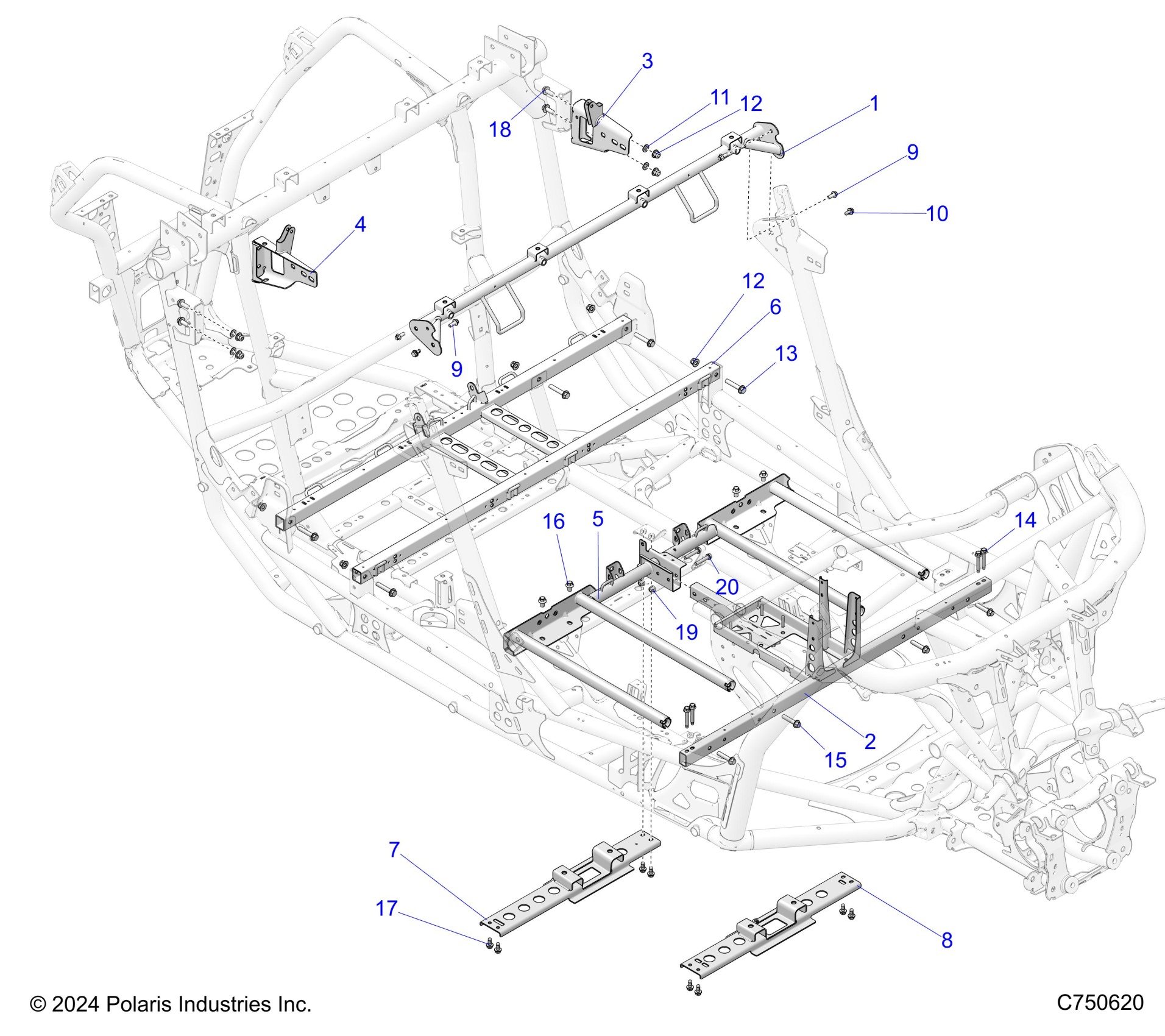

Polaris RZR PRO XP 4 SPORT (R02) - Z25X4E92A4/B4 CHASSIS, MOUNTING AND BRACKETS - Z25X4E92A4/B4 (C750620) Diagram

WELD-FRAME,CROSS BAR,MP,BLACK

1028541-458

$227.99

WELD-MOUNT,SHIFT/SCM,MP,ECOAT

1028543-329

$323.99

WELD-HING,MNT,BRK,UPR,MP,LH,BK [FROM 1/10/2025]

1029528-458

Unavailable

WELD-HING,MNT,BRK,UPR,MP,LH,BK [TO 1/10/2025]

1028645-458

$67.99

WELD-HING,MNT,BRK,UPR,MP,RH,BK [FROM 1/10/2025]

1029529-458

Unavailable

WELD-HING,MNT,BRK,UPR,MP,RH,BK [TO 1/10/2025]

1028646-458

$67.99

WELD-SEAT BASE,FRT,MP,ECOAT

1024041-329

$283.99

WELD-SEAT BASE,REAR,MP,ECOAT

1024042-329

$283.99

WELD-MOUNT,PROPSHAFT,ECOAT

1023970-329

$47.99

WELD-MOUNT,PROPSHAFT,MP,ECOAT

1024572-329

$75.99

SCR-HXFL-M8X1.25X20 10.9 ZPB

7517838

$3.99

SCR-HXFL-M8X1.25X20 10.9 ZPB

7517838

$3.99

BOLT-M8X1.25X16,HXHDFLG,W/PTCH

7518695

$3.99

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

SCR-HXFL-M10X1.5X55 8.8 ZY3

7518474

$4.79

SCR-HXFL-M8X1.25X50 DP ZODP30

7519245

$3.99

SCR-M10X1.50X50 HX/FL-Y

7518687

$5.22

SCR-HXFL-M10X1.5X16 8.8 ZPB

7517951

$5.59

BOLT-M8X1.25X20,HXHDFLG,W/PTCH

7518450

$1.59

SCR-M10X1.5X25 8.8 HXFL ZOD

7519071

$4.79

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

SCR-SH-M8X1.25X30 8.8 ZPC

7516732

$1.59
