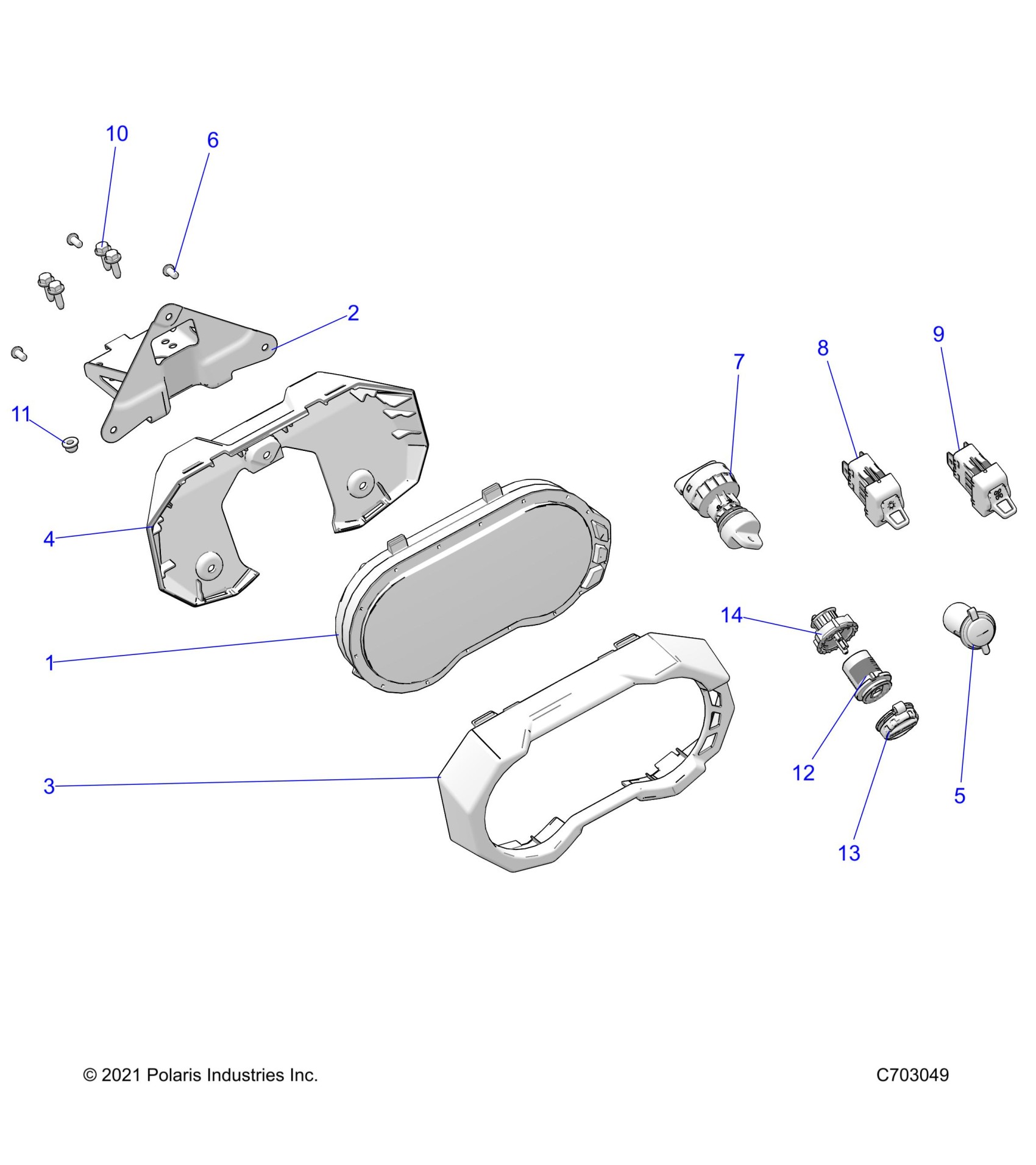

Polaris RZR PRO XP 4 SPORT EVAP (R02) - Z22M4E92AD/AG/AJ/BD/BG/BJ ELECTRICAL, DASH INSTRUMENTS AND CONTROLS - Z22M4E92AD/AG/AJ/BD/BG/BJ (C703049) Diagram

#

Description
Price

1

ASM-C4,RZR

3286839

$529.99

2

BRKT-MOUNT,C4 GAUGE

5266496

$44.51

3

BEZEL-GAUGE,FRONT

5455956

$9.70

4

BEZEL-GAUGE,REAR

5455957

$9.70

5

RECEPTACLE-POD MNT,12 VOLT

4012393

$36.41

6

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

7

SWITCH-KEY,4 POSITION,SEALED

4016135

$56.99

8

SWITCH-HEADLIGHT

4017992

$71.24

9

SWITCH-AWD

4017993

$71.24

10

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

11

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.19

12

ASM-CHARGE PORT,BASE

2415295

$44.51

12

PLUG-HARNESS CHARGE PORT

2415198

$44.51

13

CAP-CHARGE PORT

5417215

$12.94

14

NUT-CHARGE PORT

5456622

$44.51
