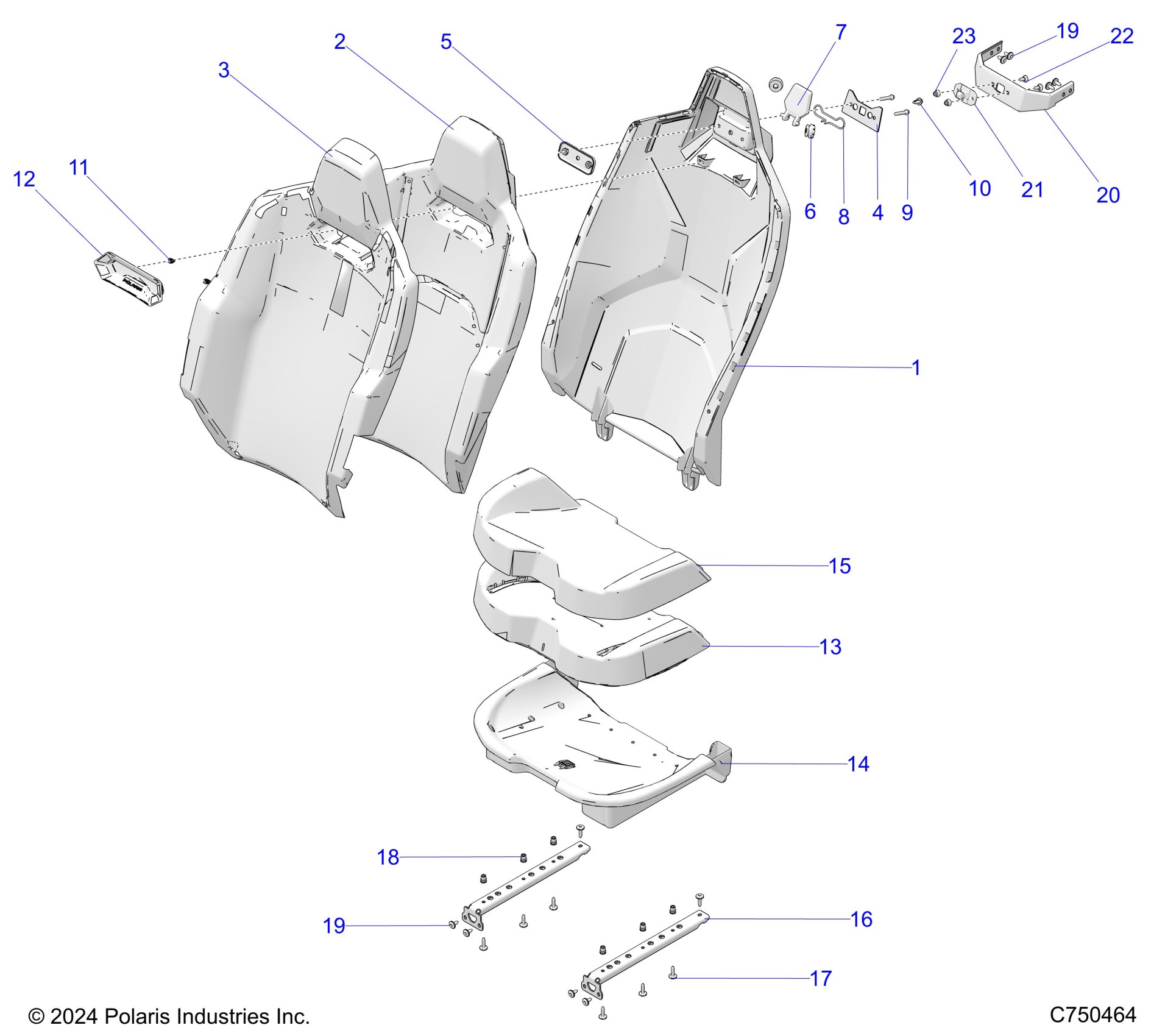

Polaris RZR PRO XP 4 PREMIUM (R02) - Z25X4B92AP/BP BODY, SEAT ASM, & MOUNTING, REAR - Z25X4B92AP/BP (C750464) Diagram

#

Description
Price

1

SEAT-SHELL,BACK

5465065

$114.39

2

ASM-SEAT,BUN,BACK [INCLS. BUN]

2639642

$31.99

2

BUN-SEAT,REAR,BACK

5815572

Unavailable

3

ASM-COVER-SEAT,BACK,ORG BURST

2693193

$123.99

4

COVER-LATCH,SEAT,MP,ECOAT

5273996-329

$43.99

5

BRKT-SUPPORT,SEAT

5274060

$8.79

6

GROMMET-LATCH

5413428

$3.19

7

LATCH-HANDLE

5465066

$4.79

8

SPRING, LATCH, SEAT

7081466

$39.99

9

SCR-HXFL-M6X1.0X35 8.8 ZY3

7518578

$3.99

10

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

11

CLIP-TRIM, PLASTIC, WHITE

5456313

$1.59

12

BEZEL-SEAT COVER,BLACK

5465755-070

$19.99

13

ASM-SEAT,BUN,BOTTOM

2639643

$31.99

14

SEAT-SHELL,BASE

5455823

$70.39

15

ASM-COVER-SEAT,BTM,ORG BURST

2693201

$107.99

16

BRKT-SEAT FRAME,ECOAT

5267623-329

$31.99

17

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

18

NUT-RIVNUT,M6X1.00

7547789

$3.19

19

SCR-M6X1X16 TR/TX-M

7518936

$3.99

19

SCR-M6X1X16 TR/TX-M

7518936

$3.99

20

BRKT-LATCH,SEAT,MP,BLK

5273997-458

$27.99

21

LATCH-DOWEL

5466348

$3.99

22

SCR-CARRIAGE,M6X16

7520194

$3.99

23

NUT-M6,HX/FL,NYLOC ZPB

7547475

$7.91
