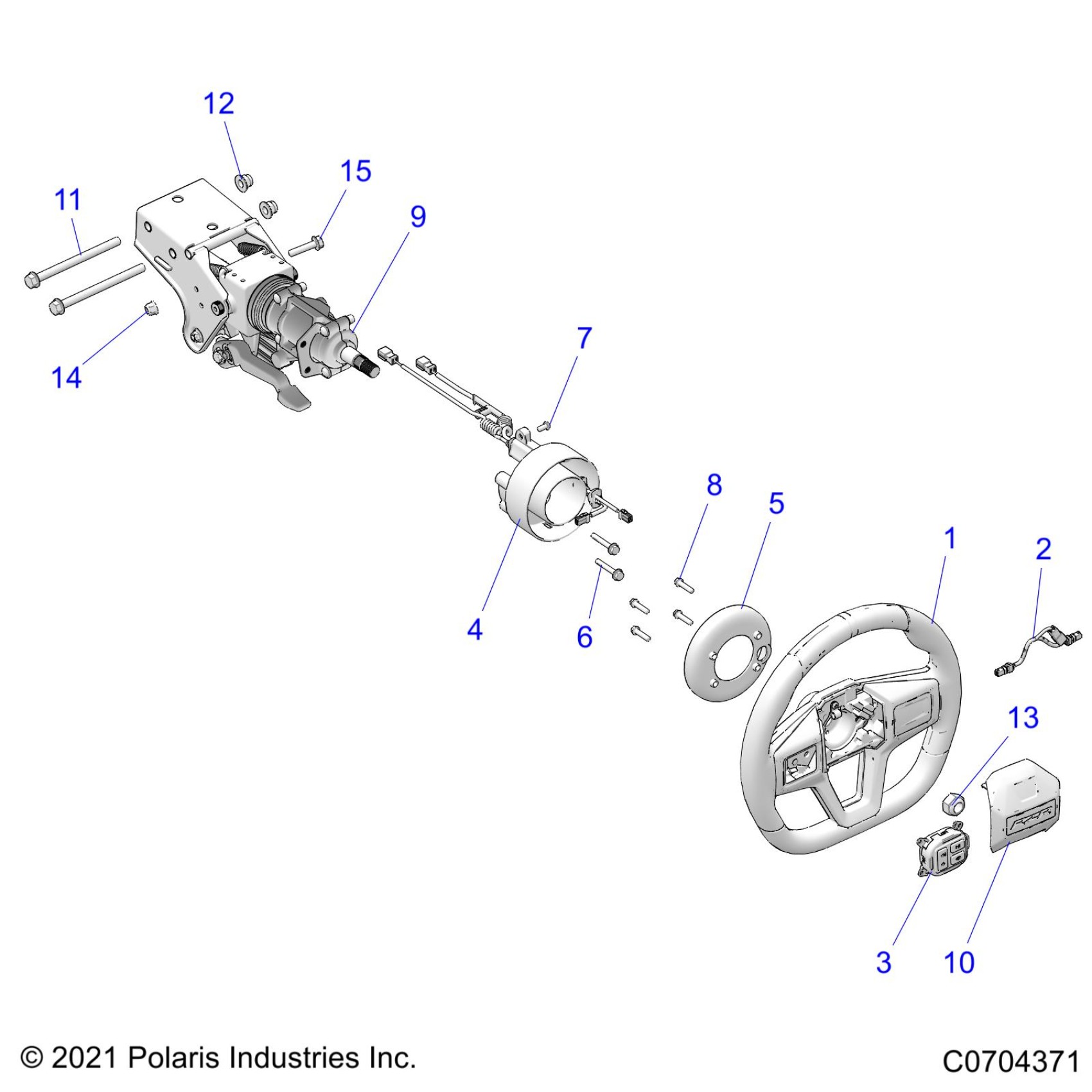

Polaris RZR PRO XP 4 PREMIUM (R02) - Z23R4B92AK/BK STEERING, UPPER, PREMIUM/DELUXE - Z23R4B92AK/BK (C0704371) Diagram

#

Description

Price

1

WHEEL-STEERING,OVRMLD [INCL. 2,3]

1830060

$183.99

2

HARNESS-STEERING WHEEL

2414689

$83.99

3

SWITCH-MODULE,STEER WHEEL,LH

4019322

Unavailable

4

ASM-COIL,CORD,DRUM

2414807

$179.73

5

COVER-COLUMN HARNESS

5455734

$8.79

6

BOLT-M6X1.0X40 HXHD,FLG,W/PATC

7518470

$1.49

7

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

8

SCREW-HXFLG,M6X1.0X25,10.9

7519297

$3.99

9

ASM-TILT/TELE,STEERING

1830008

$523.59

10

CAP-STEERING WHEEL

5458594

$23.99

11

BOLT-M10X1.25X130,HXFLG-OLIVED

7518665

$13.59

12

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

13

NUT-HEX-M16X2, 8 ZC NYL

7547506

$4.39

14

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

15

SCREW-HXFL-M8X1.25X35 10.9 ZFL

7520985

$6.15
