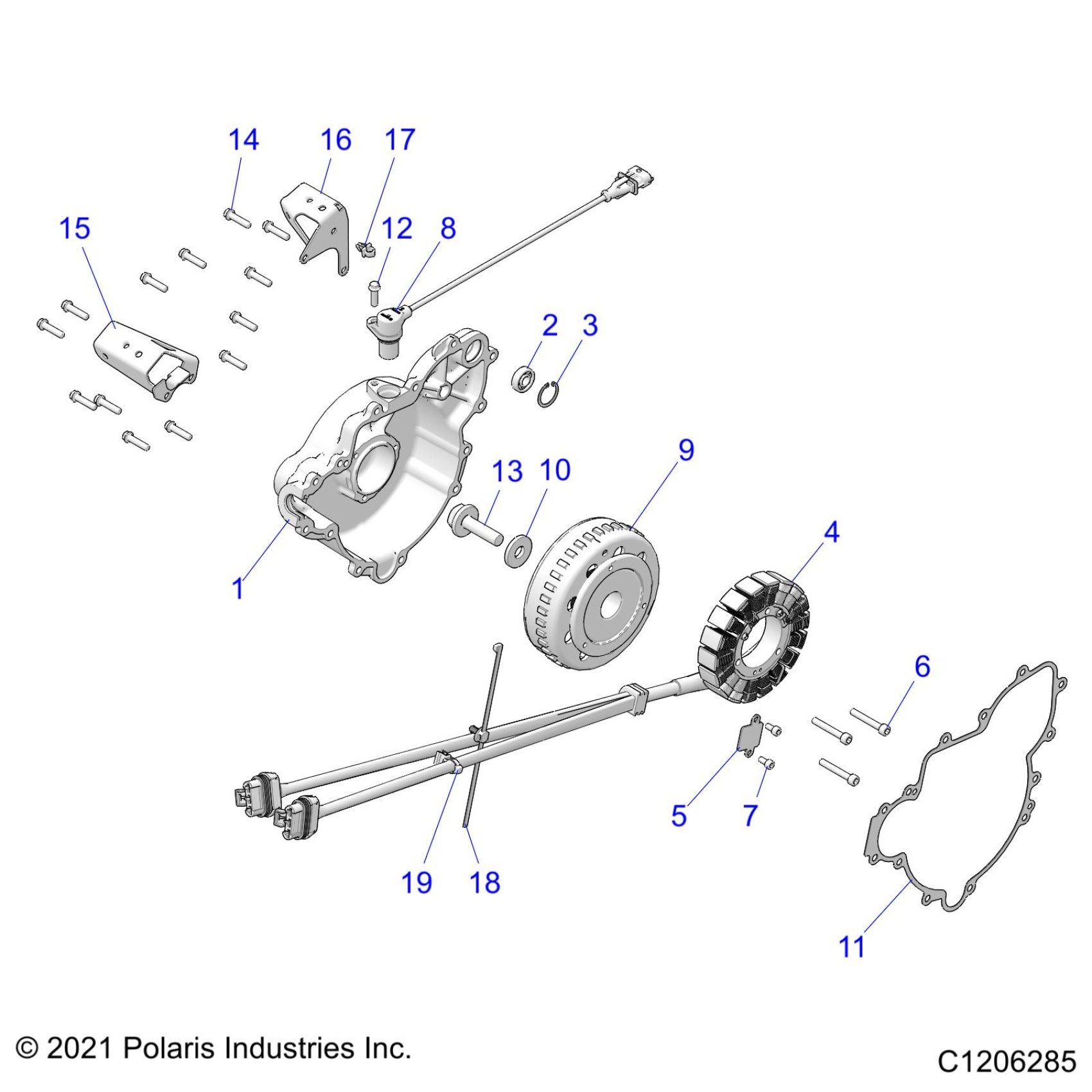

Polaris RZR PRO XP 4 PREMIUM (R02) - Z23R4B92AK/BK ENGINE, STATOR AND FLYWHEEL - Z23R4B92AK/BK (C1206285) Diagram

Description

Price

ASM-IGN COVER,STARTER BRG [INCL. 2,3]

1206299

$169.43

BEARING-BALL,9X24X7

3514717

$8.73

RING-SNAP,DIN472,24X1.2MM

7710654

$23.81

STATOR-900W DUAL

4019180

$399.99

BRACKET, RETAINER, WIRE

5255473

$7.27

SCR-M6X1.0X40,HX/SOC/CP-Y/D

7510005

$5.70

SCREW-M5X0.8X10 SOC/CP-D

7517847

$3.17

SENSOR, CRANK POSITION

2411719

$105.22

FLYWHEEL-900W

4017135

$319.99

WSHR-32X12X4,HARD

7556885

$5.56

GASKET, COVER, IGNITION

5814160

$40.46

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.17

SCREW-HXFL-M12X1.25X43 12.9

7520178

$27.78

SCREW-HXFLG,M6X1.0X25,10.9

7519297

$3.97

BRKT-OIL LINE RETAINER

5266652

$28.32

BRKT-LINE,COOLANT

5267062

$32.37

CLIP-WIRE, 6.35MM

7081477

$3.17

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.65
