Partiron

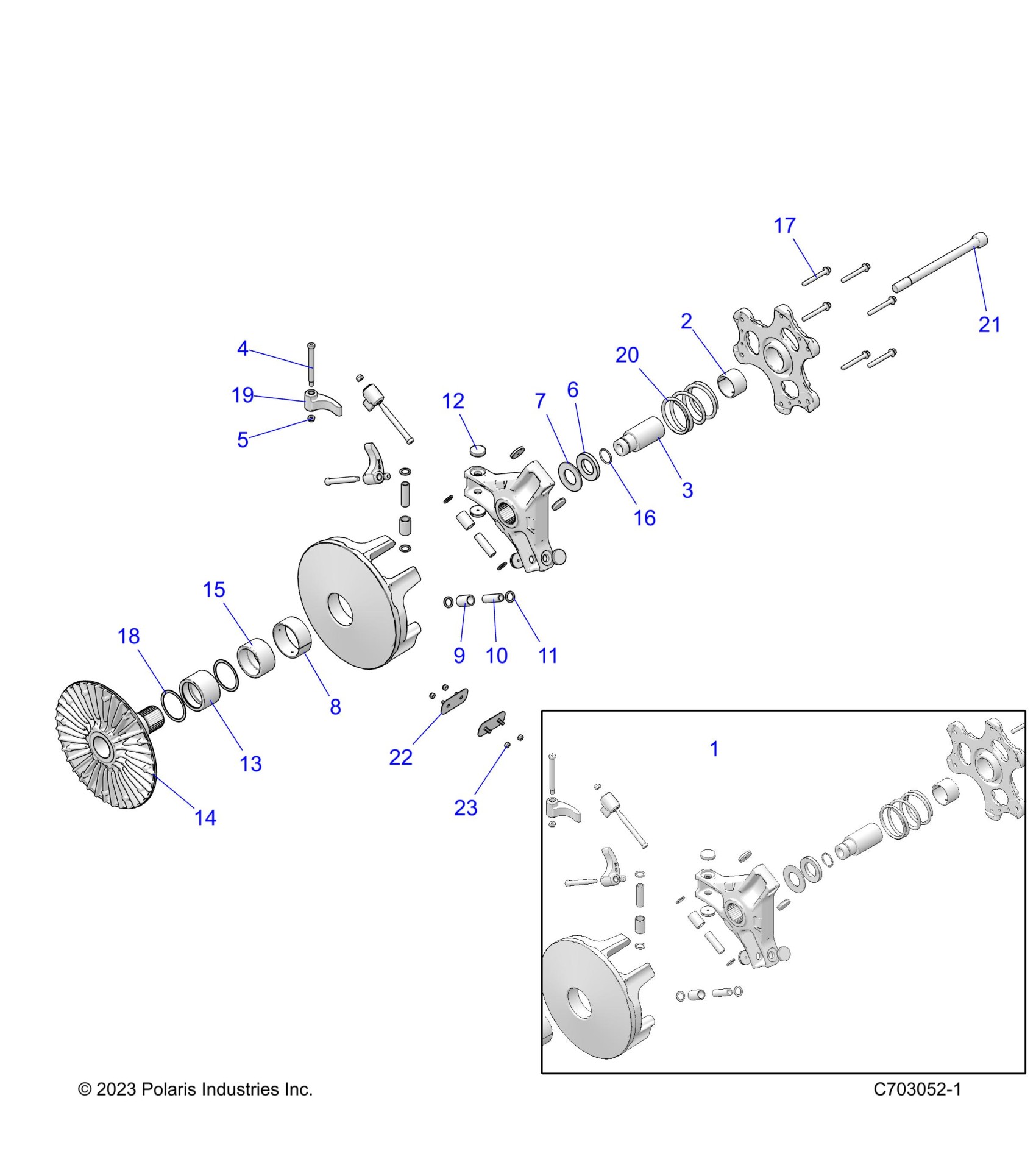

Polaris RZR PRO XP 4 PREMIUM (R02) - Z23R4B92AK/BK DRIVE TRAIN, PRIMARY CLUTCH - Z23R4B92AK/BK (C703052) Diagram

#

Description
Price

1

ASM-DRIVE CLUTCH,BASIC [INCL. 2-18]

1327318

$628.69

2

BUSHING-MU,35X39X25

3515181

$5.59

3

POST-CLUTCH,OUTER

5142275

$27.99

4

BOLT-SHOULDER,8X65,10-24

7527984

$6.39

5

NUT-10-24-FLEX LOC-Z

7541906

$3.19

6

WSHR-SPR,26.5X45.7X6.86,P&O

7557140

$7.03

7

WSHR-26.5X49.0X2.38 P&O

7557192

$3.99

8

BUSHING-MU,55X60X25

3515182

$10.39

9

ASM-SPIDER ROLLR,12X17X25,DP11

1323587

$27.99

10

PIN-SPIDER,8X12X40

5142278

$5.59

11

WASHER-12X17X1.4,SP-21

5455244

$3.99

12

BUTTON-CLUTCH,24X5.25,SCP

5456312

$7.99

13

BEARING-NEEDLE,45X55X35,FKM

3515111

$51.99

14

ASM-SHEAVE,STAT,A369,HD,GDT

5144589

$87.99

15

SPACER-CLUTCH

5142274

$12.79

16

O-RING-020 0.875X0.0625

5416424

$4.66

17

SCR-M6X1.0X50.0 HX/FL-Y/D

7517932

$3.99

18

WSHR-45.5X54X0.8,SP-21

7557138

$4.39

19

ASM-WEIGHT,SHIFT,45-112,TH

1327366

$14.39

20

SPRING-CLUTCH,80-120

7045112

$31.99

21

SCR-HXFL,M14X1.5X180 12.9 SPC

7520950

$10.55

22

ASM-CLUTCH WEAR

1327285

$7.99

23

NUT-M5X.8,HX NYL-Y

7546601

$1.49
