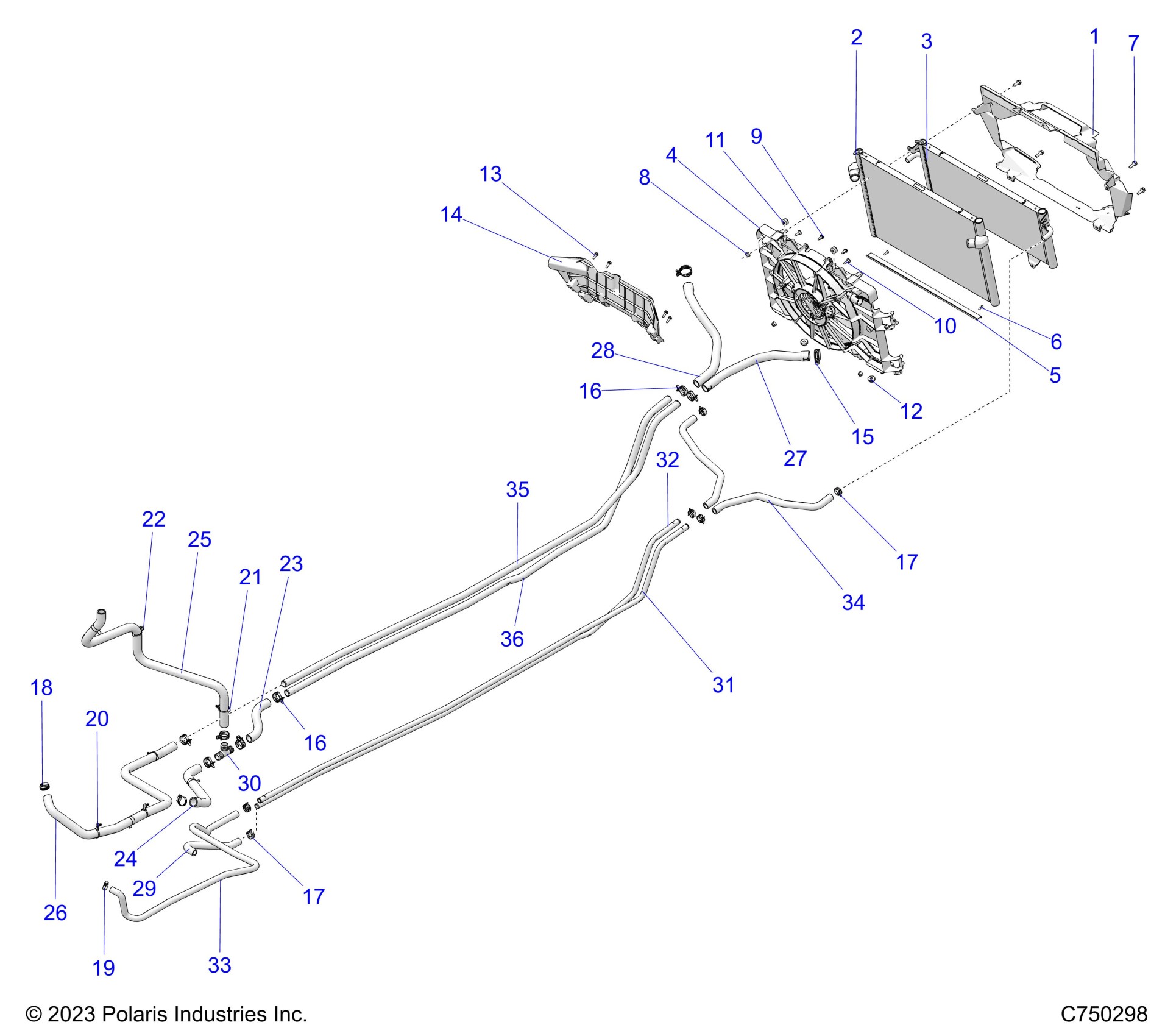

Polaris RZR PRO S4 ULTIMATE EVP,LE (R01) - Z26S4P92BL ENGINE, COOLING - Z26S4P92BL (C750298) Diagram

#

Description
Price

1

SHROUD-RADIATOR,RZR,74

5465017

$60.70

2

ASM-RADIATOR,CORE

1241322

$356.24

3

ASM-RADIATOR,CORE,LT

1241528

$327.74

4

FAN-ASSEMBLY

2417225

$512.99

5

BRKT-SUPPORT,RADIATOR

5270074

$37.99

6

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.19

7

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59

8

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

9

RIVET-TUFLOK,.315-.325X.787

7661855

$1.19

10

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

11

ASM-GROMMET & INSERT

5416503

$3.97

12

GROMMET-FLANGED,.36X.56X1.06

7052028

$6.35

13

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

14

PANEL-AIR,DEFLECTOR,74

5465143

$48.56

15

CLAMP-CTB42

7082625

$7.14

16

SPRINGBAND-CLAMP,BLK

7082308

$5.56

16

SPRINGBAND-CLAMP,BLK

7082308

$5.56

17

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.14

17

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.14

18

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.94

19

CLAMP-CONSTANT TENSION,16-27

7081415

$7.14

20

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.17

21

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

22

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.65

23

HOSE-ENG IN,TUBE/T

5416570

$32.37

24

HOSE-ENG IN,T/ENG

5416571

$36.41

25

HOSE-OUT,ENGINE,SURGE/T

5416572

$82.29

26

HOSE-ENGINE OUT

5416573

$91.97

27

HOSE-RADIATOR,HT,IN

5417552

$40.46

28

HOSE-RADIATOR,HT,OUT

5417553

$48.56

29

HOSE-PUMP,IN,TUBE/T

5416576

$15.37

30

CONNECTOR-TEE,1",1",1" BARBED

7052373

$10.32

31

TUBE-COOLANT,LT UPPER,MP

5143750

$72.60

32

TUBE-COOLANT,LT LOWER,MP

5143751

$72.60

33

HOSE-LCAC,OUT

5417198

$82.29

34

HOSE-RADIATOR,LT

5417555

$40.46

35

TUBE-COOLANT,HT UPPER,MP

5143748

$87.13

36

TUBE-COOLANT,HT LOWER,MP

5143749

$87.13
