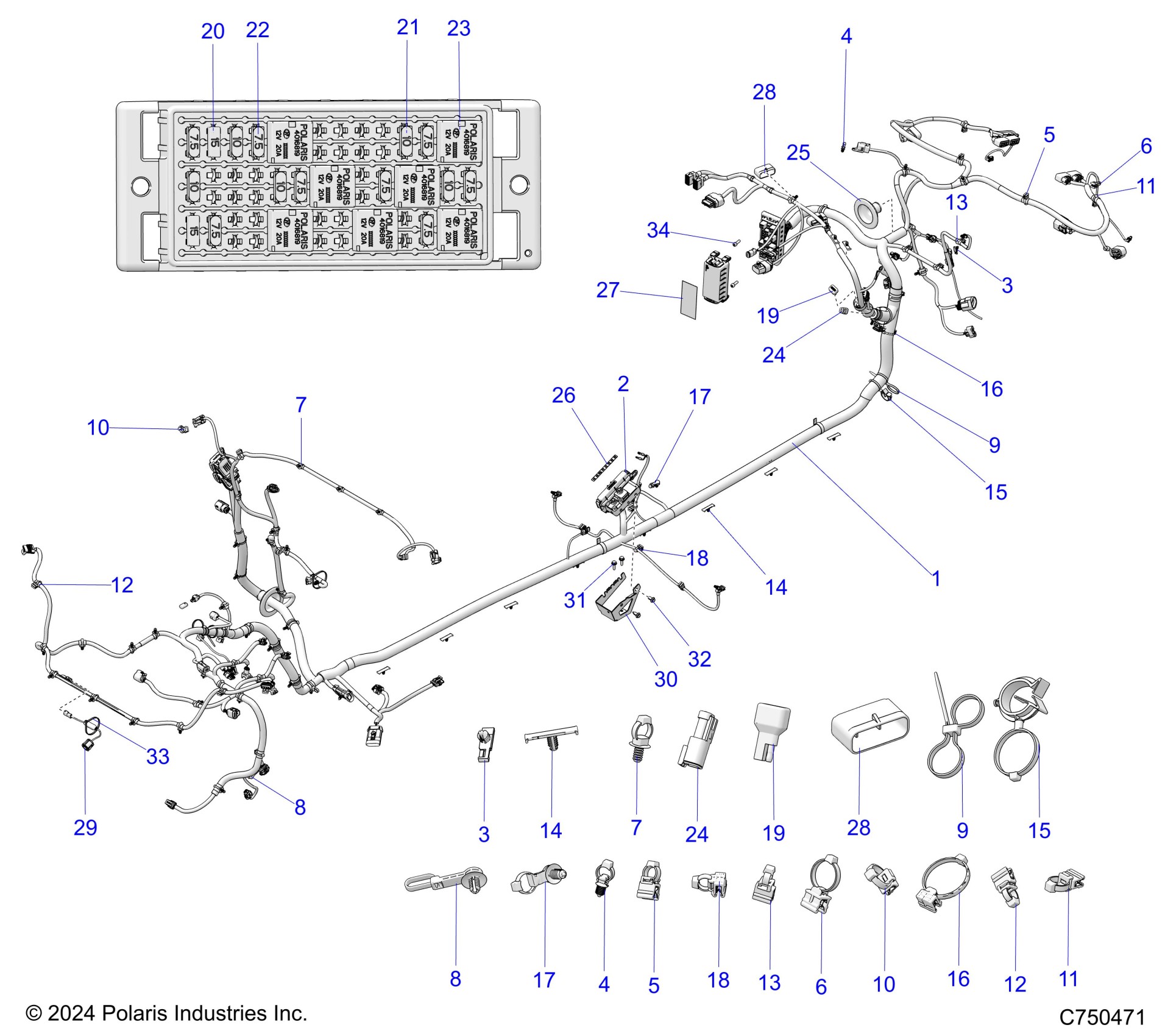

Polaris RZR PRO S4 PREMIUM (R02) - Z25S4B92AF/BF ELECTRICAL, WIRE HARNESS, CHASSIS - Z25S4B92AF/BF (C750471) Diagram

#

Description
Price

1

HARN-CHASSIS,RZR,T,74,MP [INCL. 2-28]

2417239

$1,522.39

2

FUSE-PDM

4017598

$57.19

3

CLIP-FIR,HOLE6.35MM

7082134

$3.99

3

CLIP-FIR,HOLE6.35MM

7082134

$3.99

4

CLIP-ROUTING

7082522

$3.99

4

CLIP-ROUTING

7082522

$3.99

5

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.79

5

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.79

6

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.79

6

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.79

7

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

7

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

8

CLIP-OFFSET,FT6 FIR TREE

7082405

$3.99

8

CLIP-OFFSET,FT6 FIR TREE

7082405

$3.99

9

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

9

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

10

CLIP-EDGE, 1-3mm THICKNESS

7082402

$7.19

10

CLIP-EDGE, 1-3mm THICKNESS

7082402

$7.19

11

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

11

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

12

CLIP, EDGE, HARNESS

7081890

$10.39

12

CLIP, EDGE, HARNESS

7081890

$10.39

13

CLIP- EDGE, 1-3MM THICKNESS

7082427

$5.59

13

CLIP- EDGE, 1-3MM THICKNESS

7082427

$5.59

14

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.19

14

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.19

15

CLIP, OMEGA, CABLE

7082343

$3.73

15

CLIP, OMEGA, CABLE

7082343

$3.73

16

CLIP-EDGE,3-6MM THICKNESS

7082399

$5.27

16

CLIP-EDGE,3-6MM THICKNESS

7082399

$5.27

17

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.19

17

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.19

18

CLIP-EDGE,1-3MM THICKNESS

7082401

$7.91

18

CLIP-EDGE,1-3MM THICKNESS

7082401

$7.91

19

RESISTOR - EVAP PULLUP - 1 KOHM

2414716

$8.79

19

RESISTOR - EVAP PULLUP - 1 KOHM

2414716

$8.79

20

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

21

FUSE-IGNITION,10 AMP

2434016

$4.79

22

FUSE - 7.5, MINI BLADE (BROWN)

4011068

Unavailable

23

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

24

DIODE-2 AMP

2415626

$14.39

24

DIODE-2 AMP

2415626

$14.39

25

GROMMET - 65 MM, BLK

5813954

$7.19

26

LABEL-PDM, RZR, PROS

7200165

Unavailable

27

LABEL-FUSEBOX, TURBO R

7199861

Unavailable

28

CAP-EVAP CONNECTOR

4018655

$3.99

28

CAP-EVAP CONNECTOR

4018655

$3.99

29

CAM-IR ILLUMINATED,AMB SENSE

4081064

$187.99

30

BRKT-MOUNT,PDM,ECOAT

5268102-329

$27.99

31

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

32

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

33

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

34

SCREW-SH-M6X1.0X20 8.8 ZPB

7517305

$4.79
