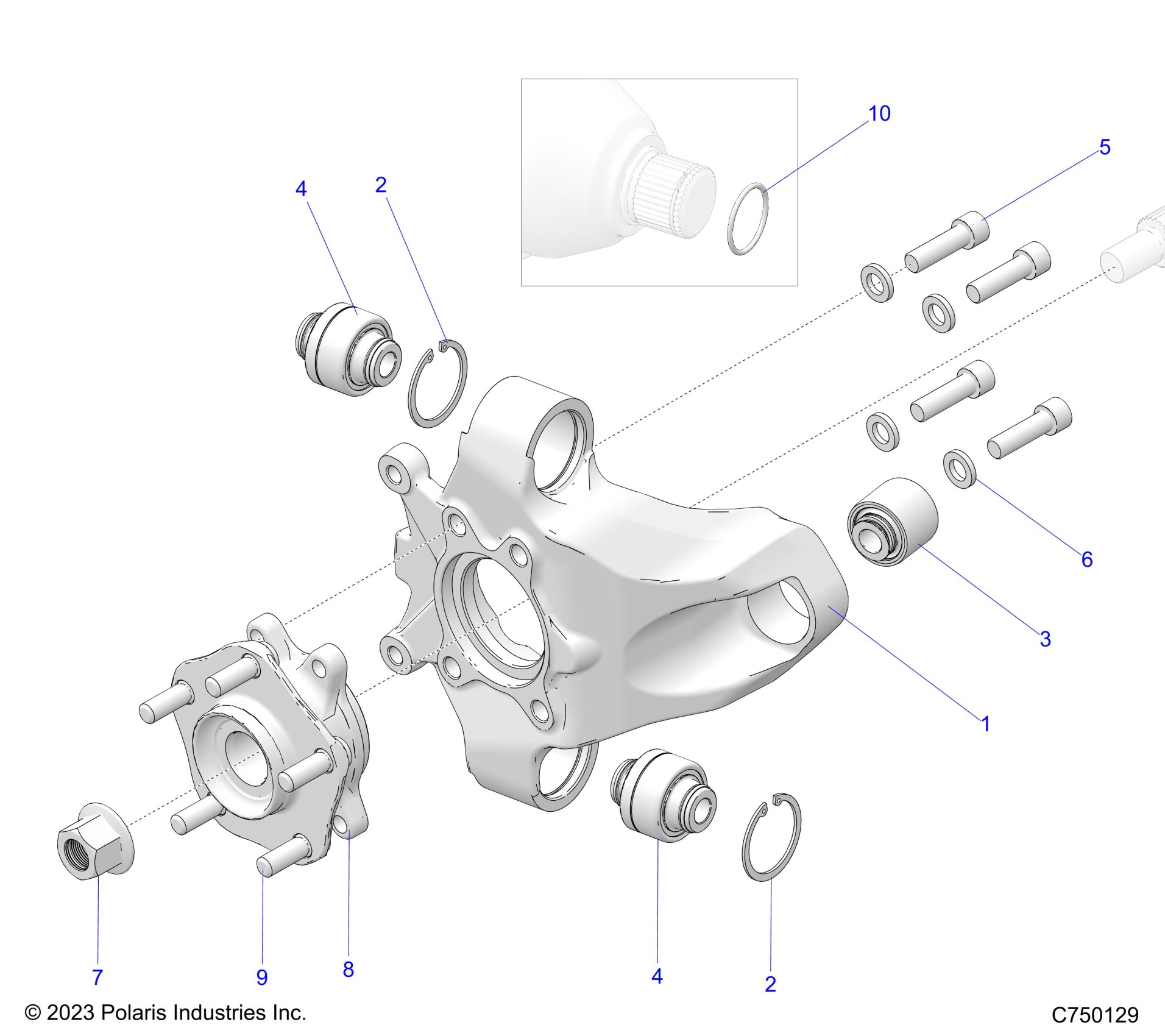

Polaris RZR PRO S SPORT (R02) - Z25SPE92A4/B4 SUSPENSION, REAR CARRIER AND HUB - Z25SPE92A4/B4 (C750129) Diagram

ASM-KNUCKLE,REAR,LH [INCL. 1-6]

1524048

Unavailable

ASM-KNUCKLE,REAR,RH [INCL. 1-6]

1524049

Unavailable

ASM REAR KNUCKLE LH [INCL. 2-4]

1544548

$394.39

ASM REAR KNUCKLE RACE LH [RACE/HD OPTION]

1545109

$402.20

ASM REAR KNUCKLE RH [INCL. 2-4]

1544549

$394.39

ASM REAR KNUCKLE RACE RH [RACE/HD OPTION]

1545110

$402.20

BEARING-SPHERICAL, M14,47X55

7082583

$23.99

BEARING-SPHERICAL, M14,47X55

7082583

$23.99

BEARING-SPHERICAL, M14,40X44

7082584

$35.99

RING-SNAP,DIN472,47X1.75MM

7710947

$3.99

RING-SNAP,DIN472,47X1.75MM

7710947

$3.99

SCR-SH-M12X1.25X40 12.9 PTCH

7521356

$9.59

WSHR-22X13X3 ZFB HRD

7557160

$3.19

NUT-M20X1.5,FLG-LCK,ZINC,8.8

7548051

$11.21

ASM-UNITIZED HUB 5X4.5 [INCL. 9]

1525346

$159.99

STUD-WHEEL,M12-1.5

7527823

$3.99

SEAL-O-RING,2-125

3610355

$1.86
