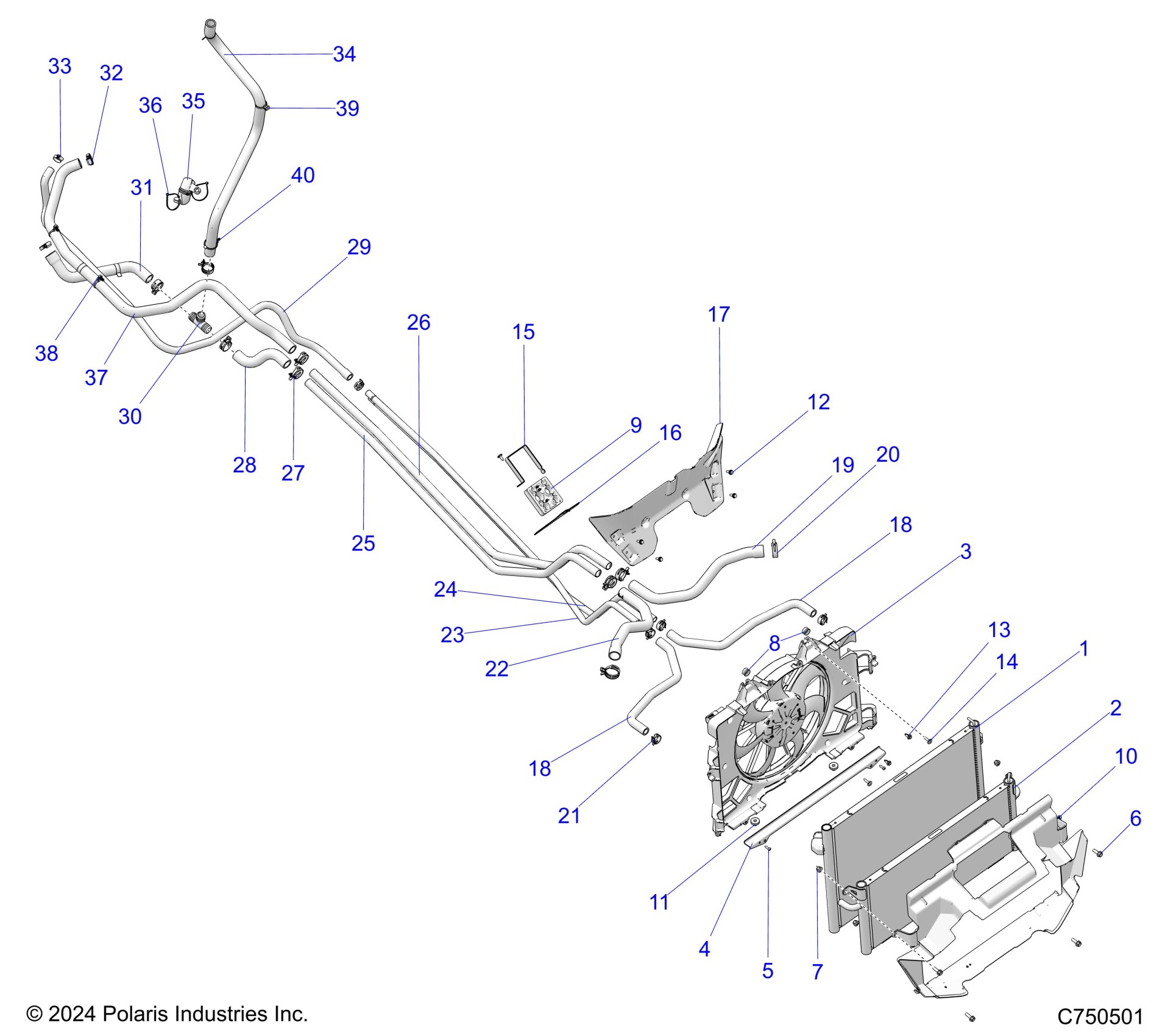

Polaris RZR PRO S SPORT (R02) - Z25SPE92A4/B4 ENGINE, COOLING - Z25SPE92A4/B4 (C750501) Diagram

#

Description
Price

1

ASM-RADIATOR,CORE

1241322

$283.99

2

ASM-RADIATOR,CORE,LT

1241528

$308.54

3

FAN-ASSEMBLY

2417225

$430.53

4

BRKT-SUPPORT,RADIATOR

5270074

$37.39

5

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

6

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59

7

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

8

ASM-GROMMET & INSERT

5416503

$3.99

9

GROMMET-ROUTING

5417636

$31.99

10

SHROUD-RADIATOR,RZR,74

5465017

$55.99

11

GROMMET-FLANGED,.36X.56X1.06

7052028

$6.39

12

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

13

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

14

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

15

STRAP-GROMMET,ROUTING,ECOAT

5270704-329

$11.43

16

BRKT-GROMMET,ROUTING.ECOAT

5270675-329

$14.39

17

PANEL-AIR,DEFLECTOR,74

5465143

$43.99

18

HOSE-RADIATOR,LT

5417555

$35.99

18

HOSE-RADIATOR,LT

5417555

$35.99

19

HOSE-RADIATOR,HT,OUT

5417553

$43.99

20

CLAMP-CTB42

7082625

$7.19

21

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

22

HOSE-RADIATOR,HT,IN

5417552

$35.99

23

TUBE-COOLANT,LT UPPER

5143813

$27.99

24

TUBE-COOLANT,LT LOWER

5143814

$27.99

25

TUBE-COOLANT,HT UPPER

5143811

$63.99

26

TUBE-COOLANT,HT LOWER

5143812

$63.99

27

SPRINGBAND-CLAMP,BLK

7082308

$5.59

28

HOSE-ENG IN,TUBE/T

5416570

$27.99

29

HOSE-LCAC,OUT

5417198

$63.99

30

CONNECTOR-TEE,1",1",1" BARBED

7052373

$10.39

31

HOSE-ENG IN,T/ENG

5416571

$31.99

32

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

33

CLAMP-CONSTANT TENSION,16-27

7081415

$7.19

34

HOSE-OUT,ENGINE,SURGE/T

5416572

$63.99

35

SUPPORT-SHIFT CABLE

5417525

$30.79

36

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

37

HOSE-ENGINE OUT

5416573

$71.99

38

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.19

39

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

40

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79
