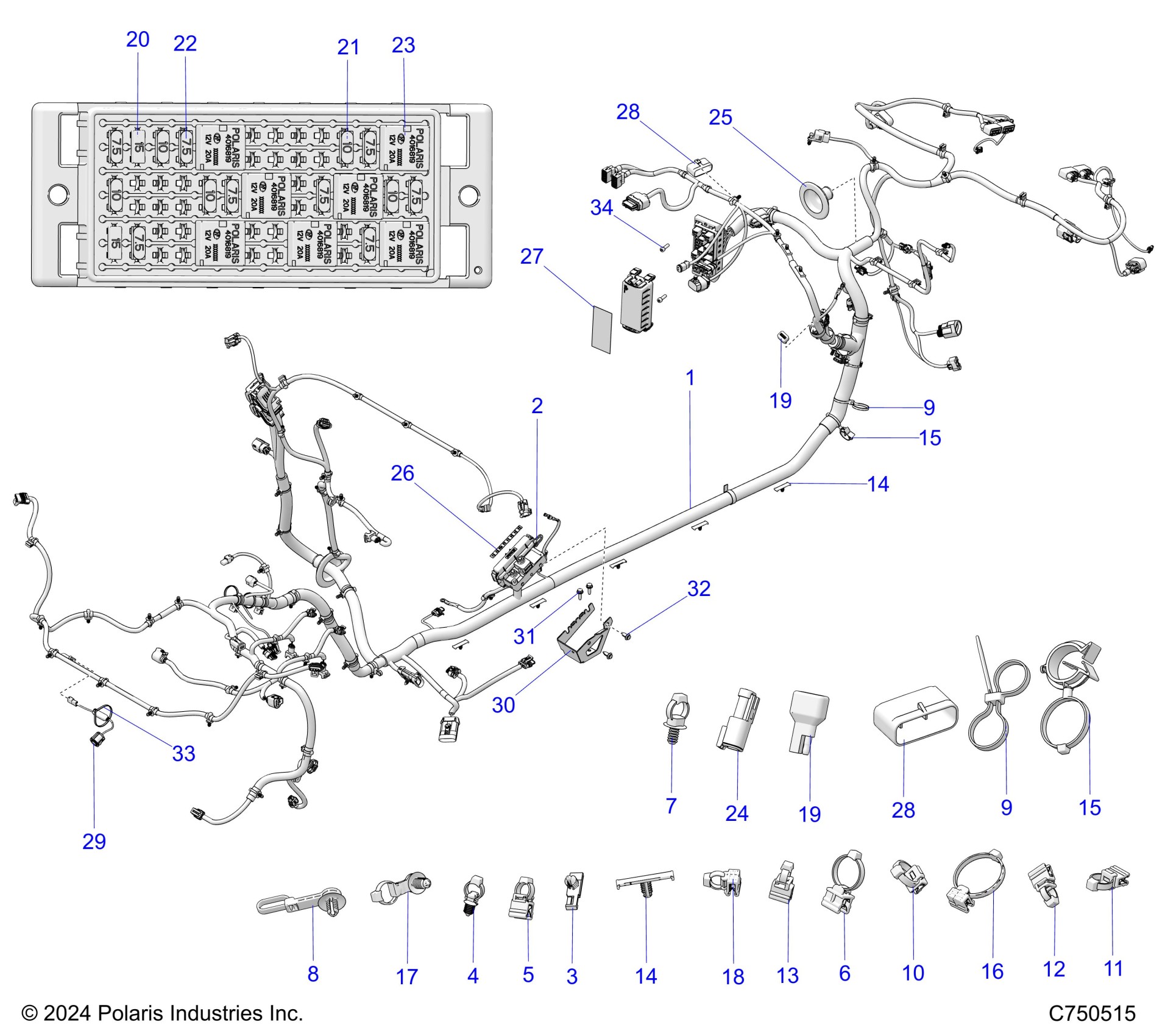

Polaris RZR PRO S SPORT (R02) - Z25SPE92A4/B4 ELECTRICAL, WIRE HARNESS, CHASSIS - Z25SPE92A4/B4 (C750515) Diagram

#

Description
Price

1

HARN-CHASSIS,RZR,T,96X74 [INCL. 2-28]

2417237

$1,649.99

2

FUSE-PDM

4017598

$69.99

3

CLIP-FIR,HOLE6.35MM

7082134

$3.97

4

CLIP-ROUTING

7082522

$3.97

5

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.76

6

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.94

7

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

8

CLIP-OFFSET,FT6 FIR TREE

7082405

$3.97

9

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.84

9

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.84

10

CLIP-EDGE, 1-3mm THICKNESS

7082402

$7.14

11

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.65

12

CLIP, EDGE, HARNESS

7081890

$10.32

13

CLIP- EDGE, 1-3MM THICKNESS

7082427

$5.56

14

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.17

14

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.17

15

CLIP, OMEGA, CABLE

7082343

$4.99

15

CLIP, OMEGA, CABLE

7082343

$4.99

16

CLIP-EDGE,3-6MM THICKNESS

7082399

$6.99

17

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.17

18

CLIP-EDGE,1-3MM THICKNESS

7082401

$8.99

19

RESISTOR - EVAP PULLUP - 1 KOHM

2414716

$9.70

19

RESISTOR - EVAP PULLUP - 1 KOHM

2414716

$9.70

20

FUSE-MINI BLADE,15 AMP

2410280

$8.08

21

FUSE-IGNITION,10 AMP

2434016

$5.65

22

FUSE - 7.5, MINI BLADE (BROWN)

4011068

$11.32

23

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$36.41

24

DIODE-2 AMP

2415626

$15.37

25

GROMMET - 65 MM, BLK

5813954

$8.99

26

LABEL-PDM, RZR, PROS

7200165

Unavailable

27

LABEL-FUSEBOX, TURBO R

7199861

Unavailable

28

CAP-EVAP CONNECTOR

4018655

$4.03

28

CAP-EVAP CONNECTOR

4018655

$4.03

29

CAM-IR ILLUMINATED,AMB SENSE

4081064

$232.74

30

BRKT-MOUNT,PDM,ECOAT

5268102-329

$34.99

31

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

32

RIVET-TUFLOK,.315-.325X.787

7661855

$1.19

33

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

34

SCREW-SH-M6X1.0X20 8.8 ZPB

7517305

$5.22
