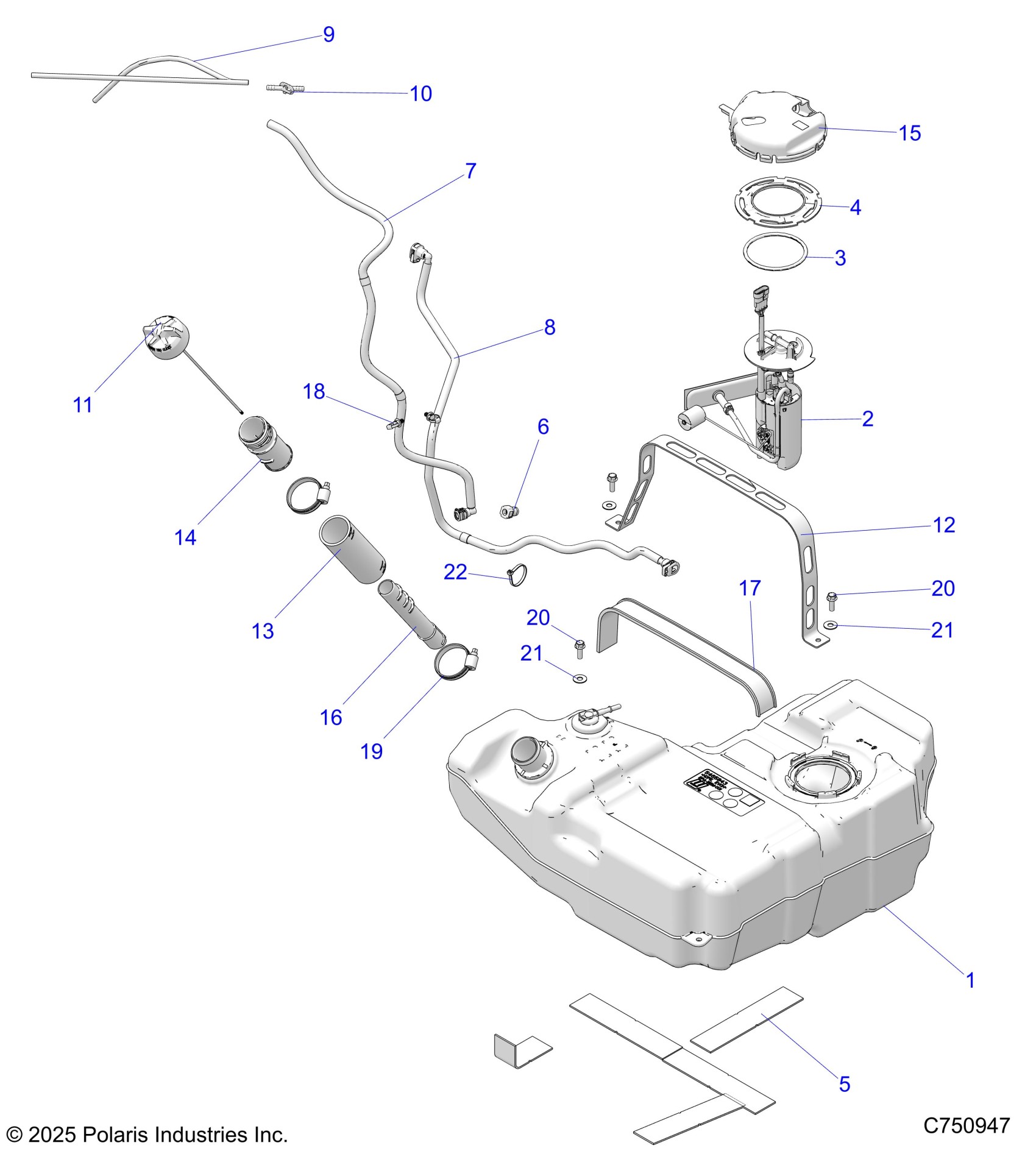

Polaris RZR PRO R4 ULTIMATE (R01) - Z26R4K2KAC/BC/AR/BR/AJ/BJ/AV/BV FUEL SYSTEM, STD. - Z26R4K2KAC/AR/AJ/AV (C750947) Diagram

ASM-FUEL TANK,RZR,G4 MP

2640246

Unavailable

K-FUEL PUMP,PRO R4 [INCL. 3 & 4]

2211927

Unavailable

O-RING,FUEL PUMP

5418990

$4.99

GASKET-PFA,RIBBED

5413451

$12.13

RING-LOCK,FUEL PUMP

5275358

Unavailable

NUT-MASON JAR

5437138

$35.71

PAD-TANK,MOUNT

5814781

$4.84

CAP-EVAP,THROTTLE BODY

2521948

$13.75

ASM-LINE,VENT TO CHASSIS

2522304

$104.99

ASM-FUEL LINE,G4,MP

2522360

$93.08

ASM-LINE,VENT TERM [INCL. 10]

2522401

$36.41

FITTING-VENT LINE,35

5457446

$9.70

CAP-GAS TANK,TETHER

2522651

$32.37

BRKT-STRAP,FUEL TANK,ECOAT

5268334-329

$94.99

HOSE, FUEL FILL

5414709

$72.60

NECK-FUEL FILL,OUTER

5455329

$29.99

PANEL-ACCESS,TANK,MP,CAMLOC,BL

5466372-070

Unavailable

TUBE-FUEL FILL,INNER

5466555

$14.56

PAD-STRAP,RUBBER,MP

5522332

$7.99

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

CLAMP-HOSE,25-77 DIA,PLASTIC

7083059

$6.99

SCR-HXFL-M8X1.25X25 8.8 ZODP30

7519243

$3.97

SCR-HXFL-M8X1.25X25 8.8 ZODP30

7519243

$3.97

WASHER-.390X.940X.060,FL-Y

7555976

$3.97

WASHER-.390X.940X.060,FL-Y

7555976

$3.97

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.41
