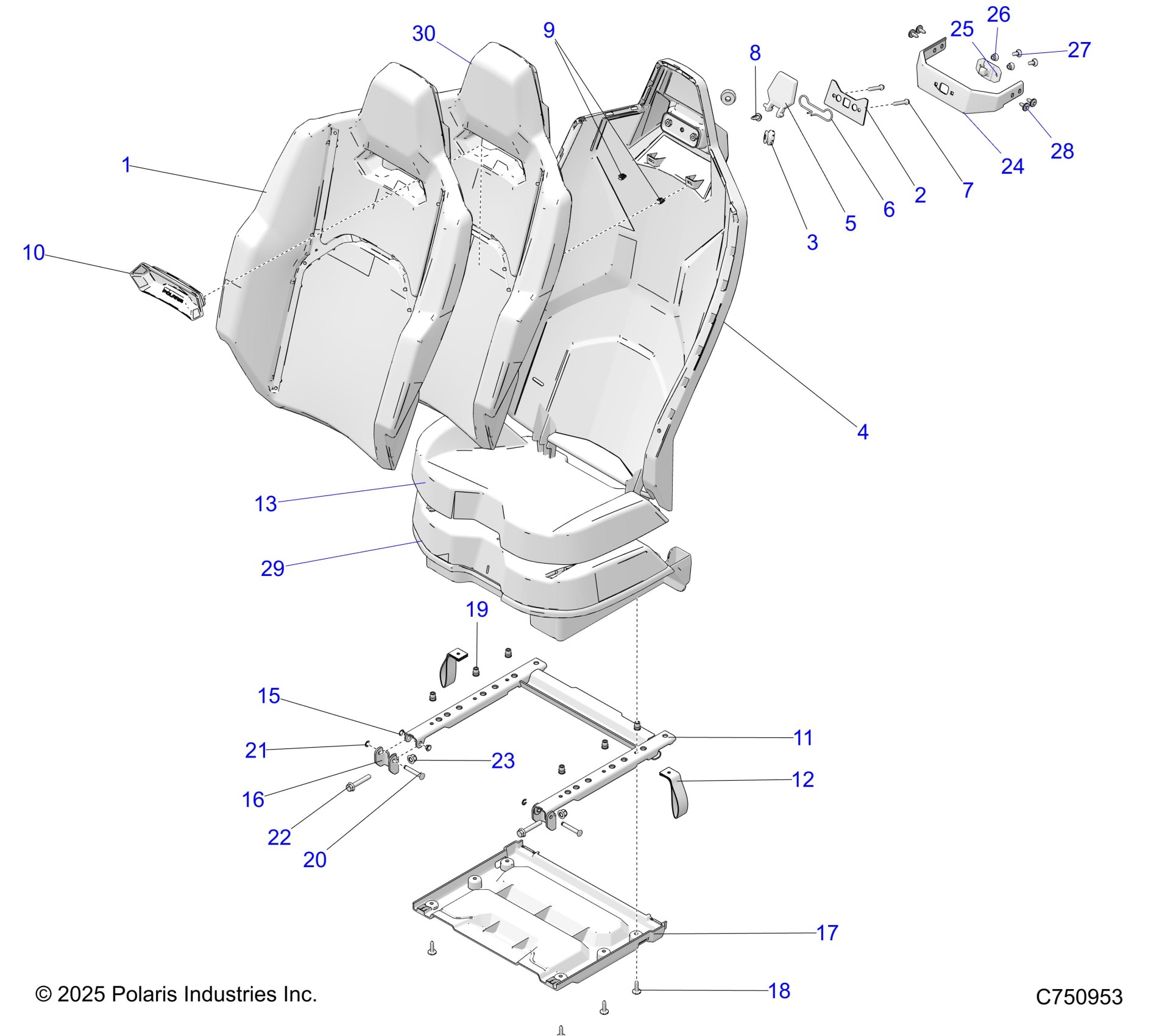

Polaris RZR PRO R4 ULTIMATE (R01) - Z26R4K2KAC/BC/AR/BR/AJ/BJ/AV/BV BODY, SEAT ASM, & MOUNTING, REAR - Z26R4K2KAC/BC/AR/BR/AJ/BJ/AV/BV (C750953) Diagram

ASM-COVER-SEAT,BACK,INDY RED,R [AR][BR]

2693695

Unavailable

ASM-COVER-SEAT,BACK,TTM,RED ST [AC][BC]

2693709

Unavailable

ASM-COVER-SEAT,BACK,TITANIUM [AJ][BJ][AV][BV]

2693194

$123.99

COVER-LATCH,SEAT,MP,ECOAT

5273996-329

$43.99

GROMMET-LATCH

5413428

$3.19

SEAT-SHELL,BACK

5465065

$114.39

LATCH-HANDLE

5465066

$4.79

SPRING, LATCH, SEAT

7081466

$39.99

SCR-HXFL-M6X1.0X35 8.8 ZY3

7518578

$3.99

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

CLIP-TRIM, PLASTIC, WHITE

5456313

$1.59

BEZEL-SEAT COVER,BLACK

5465755-070

$19.99

WELD-SEAT FRAME,REAR,FLIP,BLK

1024845-458

$67.99

STRAP-SEAT

2689264

$7.19

ASM-COVER-SEAT,BTM,INDY RED,RS [AR][BR]

2693701

Unavailable

ASM-COVER-SEAT,BTM,TTM,RED ST [AC][BC]

2693711

Unavailable

ASM-COVER-SEAT,BTM,TITANIUM [AJ][BJ][AV][BV]

2693202

$107.99

BUSHING-DOOR PIVOT

5266311

$3.19

BRKT-SEAT FRAME,HINGE,REAR

5267628

$10.39

PANEL-UNDERSEAT,REAR,FLIP

5467185

Unavailable

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

NUT-RIVNUT,M6X1.00

7547789

$3.19

PIN-DOOR HINGE

7662356

$5.27

E-CLIP,M6, DIN 6799

7710466

$3.19

SCR-M8X1.25X50 HX/FL-Y

7517793

$5.59

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

BRKT-LATCH,SEAT,MP,BLK

5273997-458

$27.99

LATCH-DOWEL

5466348

$3.99

SCR-CARRIAGE,M6X16

7520194

$3.99

NUT-M6,HX/FL,NYLOC ZPB

7547475

$7.91

SCR-M6X1X16 TR/TX-M

7518936

$3.99

ASM-SEAT,BUN,BOTTOM [INCLS. BUN]

2639643

$31.99

BUN-SEAT,REAR,BOTTOM

5815571

Unavailable

ASM-SEAT,BUN,BACK [INCLS. BUN]

2639642

$31.99

BUN-SEAT,REAR,BACK

5815572

Unavailable
