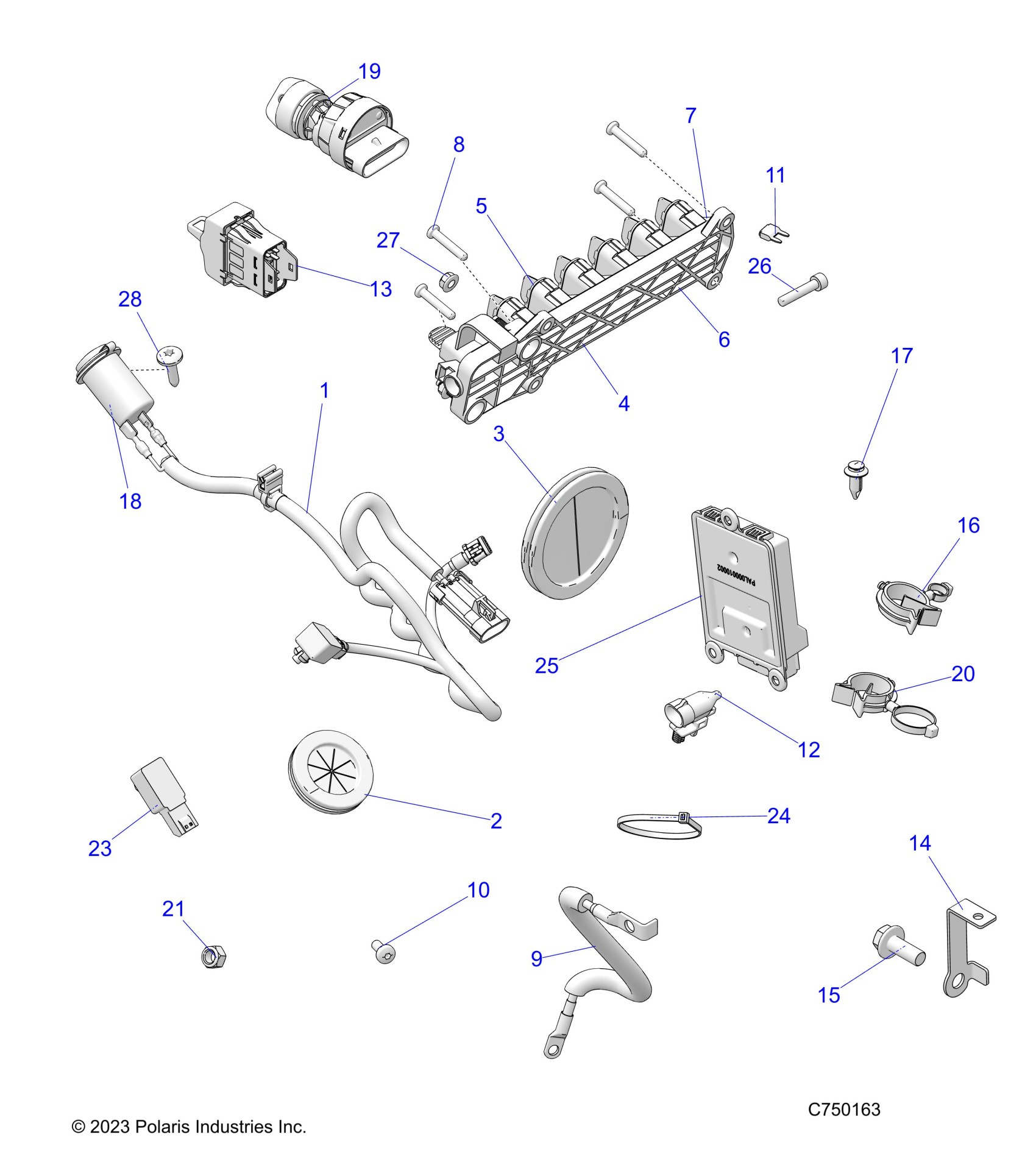

Polaris RZR PRO R4 SPORT (R03) - Z25R4E2KA4/B4 ELECTRICAL, WIRE HARNESS, PERIPHERAL - Z25R4E2KA4/B4 (C750163) Diagram

HARNESS-CONSOLE

2417281

$95.99

GROMMET-ELEC,CAB,SLIT

5415049

$3.99

GROMMET-ELECTRICAL,CAB

5417178

$5.59

BLOCK-TERMINAL,3 POST,TALL

4016007

$44.99

FUSE-CARTRIDGE,40A

4013891

$31.99

PLUG,ACCY TB

5454283

$39.99

COVER,TB,JCASE

5454284

$27.99

SCR-10X1.12 TX PN PLS-Y

7512078

$1.49

CABLE-GROUND,ENG,CHAS,G4

4018143

$43.99

SCREW-M6X1X14,PN/TX,TRI-LOB

7518914

$3.19

FUSE-IGNITION,10 AMP

2434016

$4.79

SENSOR-GAUGE,AIR TEMP,PNL MNT

4018205

$55.99

SWITCH-DRIVER MODE

4018462

$79.99

BRKT-MOUNT,CONNECTOR,ECOAT

5270941-329

$35.99

SCR-HXFL-M10X1.5X25,DIN6921ZB

7519349

$5.59

CLIP-OMEGA,CABLE/19-24.5MM DIA

7082408

$11.99

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

RECEPTACLE-POD MNT,12 VOLT

4012393

$31.99

SWITCH-KEY,4 POSITION,SEALED

4016135

$47.99

CABLE-POS,PDM,START,ALT

4019608

$103.99

NUT-NYLOCK M8X1.25-Y

7547144

$3.19

ASM-LIGHT,FOOTWELL,5700K

2417268

$19.99

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

ASM-VCM,GEN3,PROGRMMD,RZR,PREM [DEALER INSTALL REQUIRED]

2417445

Unavailable

SCR-TFHH,M6X30

7521124

$2.63

NUT-HXFLGHD, M6, SERRATED

7547270

$3.99

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99
